THERMOPLASTIC FERRULES

THERMOPLASTIC HOSE FERRULE

THERMOPLASTIC FERRULES

THERMOPLASTIC HOSE FERRULE

THERMOPLASTIC FERRULES

THERMOPLASTIC HOSE FERRULE

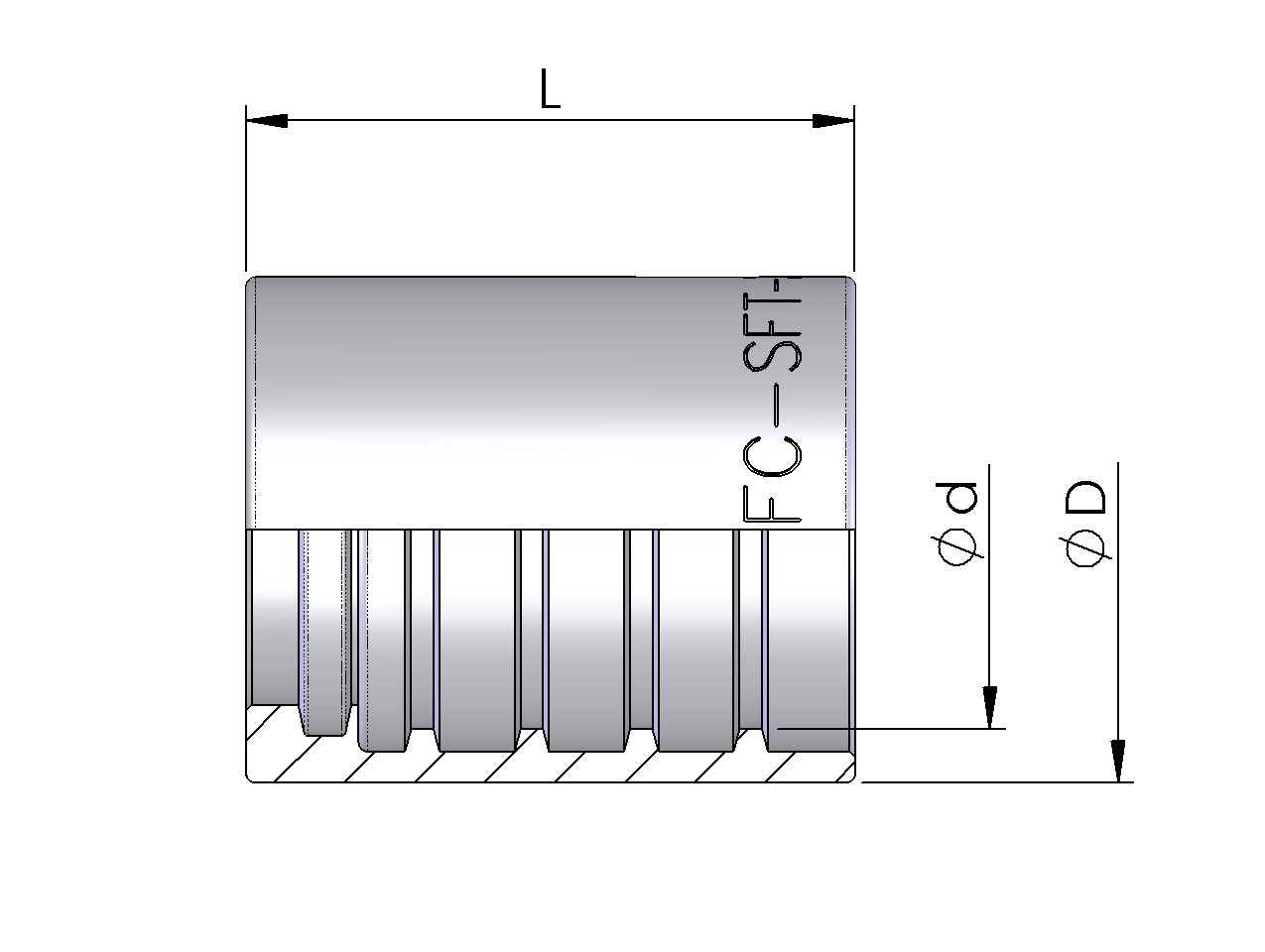

NON-SKIVE SWAGE FERRULE FOR THERMOPLASTIC HOSE

PartNumber
Hose I.D inches
Hose I.D (mm)
Dash size
Length - L (mm)
I.D - d (mm)
O.D - D (mm)
SCNT-10
5/8
15.9
10
36
27.3
34
SFT-03
3/16
4.8
03
26
11.5
15
SFT-04
1/4
6.3
04
29
12.9
17
SFT-05
5/16
7.9
05
30.5
15.8
20
SFT-06
3/8
9.5
06
32
17.5
22
SFT-08
1/2
12.7
08
32.5
21.3
27
SFT-12
3/4
19.0
12
41
28.2
34.5

Product Data

SCNT-10

Hose I.D inches

5/8

Hose I.D (mm)

15.9

Dash size

10

Length - L (mm)

36

I.D - d (mm)

27.3

O.D - D (mm)

34

SFT-03

Hose I.D inches

3/16

Hose I.D (mm)

4.8

Dash size

03

Length - L (mm)

26

I.D - d (mm)

11.5

O.D - D (mm)

15

SFT-04

Hose I.D inches

1/4

Hose I.D (mm)

6.3

Dash size

04

Length - L (mm)

29

I.D - d (mm)

12.9

O.D - D (mm)

17

SFT-05

Hose I.D inches

5/16

Hose I.D (mm)

7.9

Dash size

05

Length - L (mm)

30.5

I.D - d (mm)

15.8

O.D - D (mm)

20

SFT-06

Hose I.D inches

3/8

Hose I.D (mm)

9.5

Dash size

06

Length - L (mm)

32

I.D - d (mm)

17.5

O.D - D (mm)

22

SFT-08

Hose I.D inches

1/2

Hose I.D (mm)

12.7

Dash size

08

Length - L (mm)

32.5

I.D - d (mm)

21.3

O.D - D (mm)

27

SFT-12

Hose I.D inches

3/4

Hose I.D (mm)

19.0

Dash size

12

Length - L (mm)

41

I.D - d (mm)

28.2

O.D - D (mm)

34.5
