Get the job done with the right equipment

Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.

Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.

The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.

To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.

  • Product Catalogue
  • Promotions
  • Our Agencies
  • Our Quality
  • Safety Data Sheets

EXTREMELY HIGH PRESSURE HOSE

FOUR SPIRAL WIRE HOSE

EXTREMELY HIGH PRESSURE HOSE

FOUR SPIRAL WIRE HOSE

EXTREMELY HIGH PRESSURE HOSE

FOUR SPIRAL WIRE HOSE

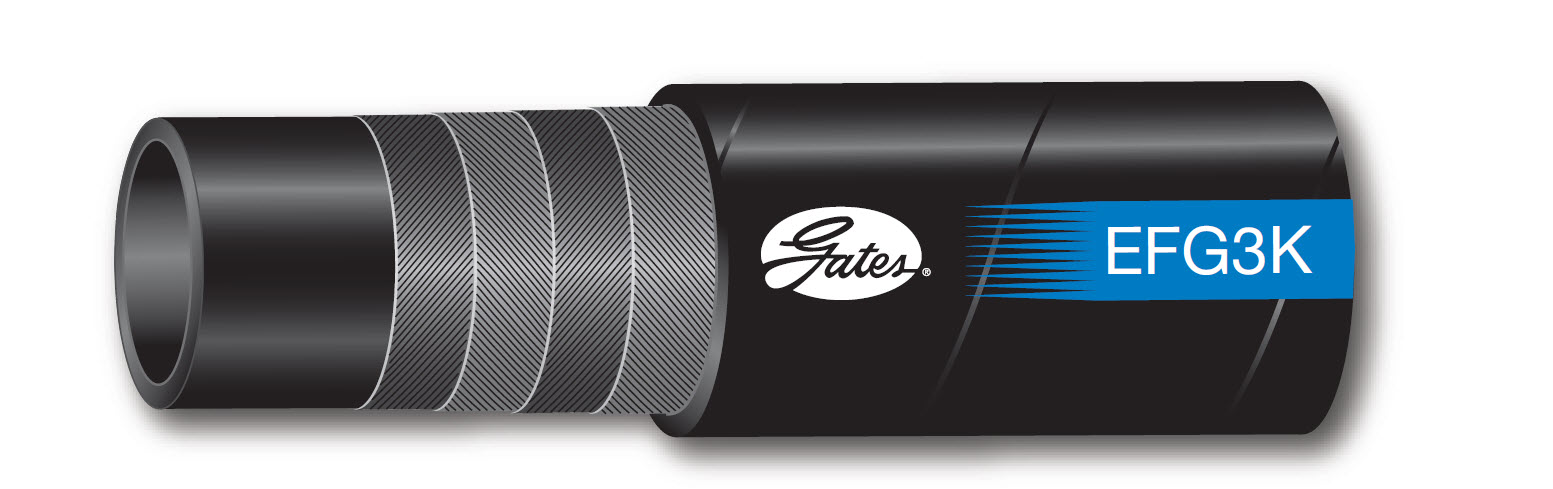

SPIRAL WIRE REINFORCED HOSE - SAE 100R12

PartNumber
Internal Size
Internal DN
Internal Diameter - inches
External Diameter - mm
Working Pressure - psi
Working pressure - bar
Min burst pressure - psi
Min burst pressure - bar
Min bend radius - mm
24EFG3K
24
38
1.1/2
53.5
3000
210
12000
840
500
32EFG3K
32
51
2
66.8
3000
210
12000
840
630

Product Data

24EFG3K

Internal Size

24

Internal DN

38

Internal Diameter - inches

1.1/2

External Diameter - mm

53.5

Working Pressure - psi

3000

Working pressure - bar

210

Min burst pressure - psi

12000

Min burst pressure - bar

840

Min bend radius - mm

500

32EFG3K

Internal Size

32

Internal DN

51

Internal Diameter - inches

2

External Diameter - mm

66.8

Working Pressure - psi

3000

Working pressure - bar

210

Min burst pressure - psi

12000

Min burst pressure - bar

840

Min bend radius - mm

630

INTRODUCING NEW ENDURO SPIRAL HOSE

ENDURO spiral is an extremely flexible slim profile hose featuring our very high wear and abrasion resistant SuperTuff (ST) MSHA cover for increased protection against abrasion in severe operating environments.

VIEW ENDURO BROCHURE
