Get the job done with the right equipment

Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.

Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.

The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.

To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.

  • Product Catalogue
  • Promotions
  • Our Agencies
  • Our Quality
  • Safety Data Sheets

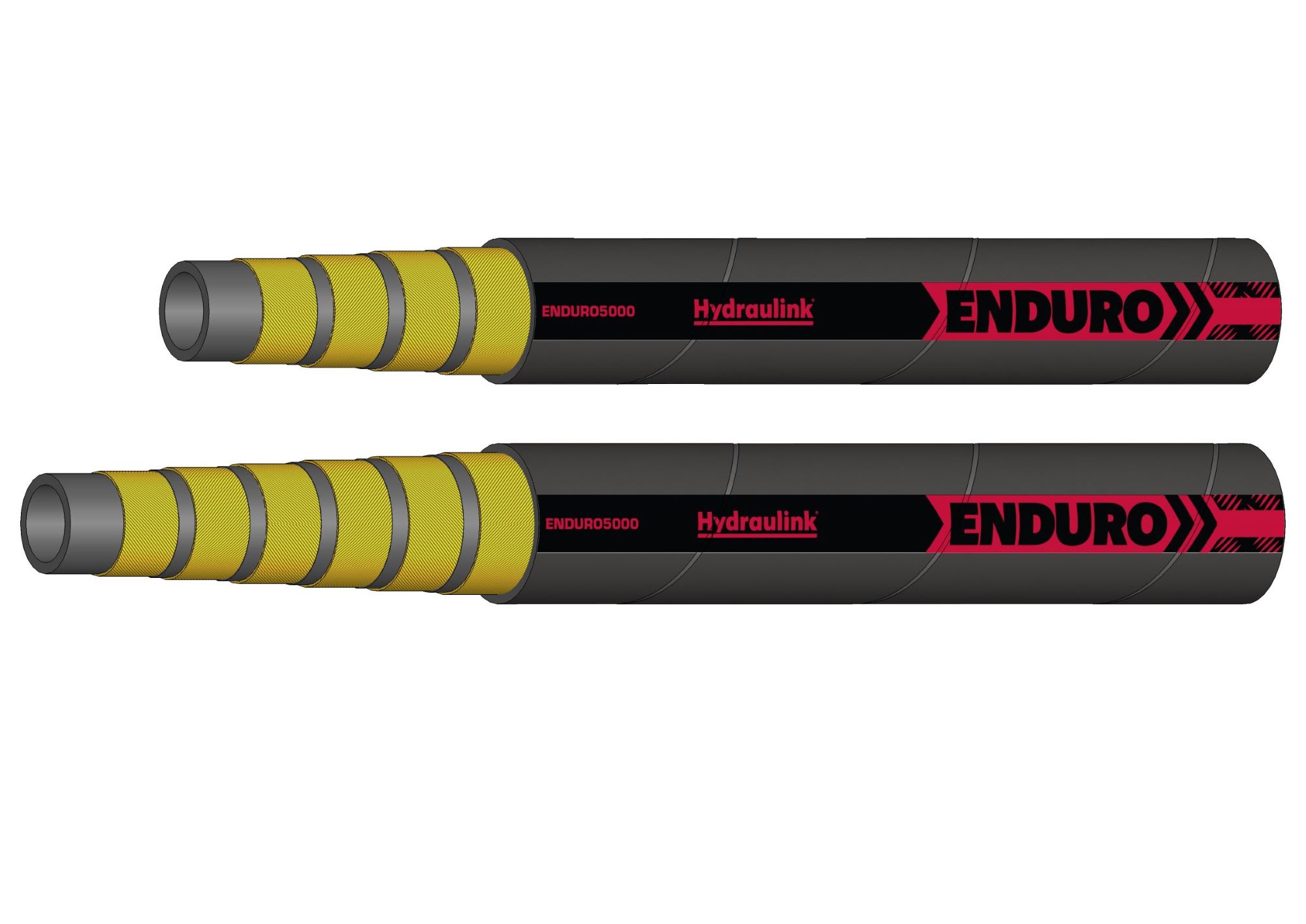

ENDURO MULTISPIRAL HOSE

ENDURO ST COVER - FOUR/SIX SPIRAL WIRE HOSE

ENDURO MULTISPIRAL HOSE

ENDURO ST COVER - FOUR/SIX SPIRAL WIRE HOSE

ENDURO MULTISPIRAL HOSE

ENDURO ST COVER - FOUR/SIX SPIRAL WIRE HOSE

SPIRALLED WIRE REINFORCED HOSE - SAE 100 R13 - MILLION IMPULSE CYCLES

PartNumber
Internal Size
Internal Diameter - DN
Internal Diameter - Inches
External Diameter - mm
Working Pressure - psi
Working pressure - bar
Min burst pressure - psi
Min burst pressure - bar
Min bend radius - mm
ENDURO5000-06
06
10
3/8
20.2
5510
380
22040
1520
65
ENDURO5000-08
08
12
1/2
22.9
5510
380
22040
1520
90
ENDURO5000-10
10
16
5/8
26.5
5510
380
22040
1520
100
ENDURO5000-12
12
19
3/4
30.5
5510
380
22040
1520
120
ENDURO5000-16
16
25
1
37.9
5075
350
20300
1400
150
ENDURO5000-20
20
32
1 1/4
45.9
5075
350
20300
1400
210
ENDURO5000-24
24
38
1 1/2
53.4
5075
350
20300
1400
250
ENDURO5000-32
32
51
2
71.5
5075
350
20300
1400
540

Product Data

ENDURO5000-06

Internal Size

06

Internal Diameter - DN

10

Internal Diameter - Inches

3/8

External Diameter - mm

20.2

Working Pressure - psi

5510

Working pressure - bar

380

Min burst pressure - psi

22040

Min burst pressure - bar

1520

Min bend radius - mm

65

ENDURO5000-08

Internal Size

08

Internal Diameter - DN

12

Internal Diameter - Inches

1/2

External Diameter - mm

22.9

Working Pressure - psi

5510

Working pressure - bar

380

Min burst pressure - psi

22040

Min burst pressure - bar

1520

Min bend radius - mm

90

ENDURO5000-10

Internal Size

10

Internal Diameter - DN

16

Internal Diameter - Inches

5/8

External Diameter - mm

26.5

Working Pressure - psi

5510

Working pressure - bar

380

Min burst pressure - psi

22040

Min burst pressure - bar

1520

Min bend radius - mm

100

ENDURO5000-12

Internal Size

12

Internal Diameter - DN

19

Internal Diameter - Inches

3/4

External Diameter - mm

30.5

Working Pressure - psi

5510

Working pressure - bar

380

Min burst pressure - psi

22040

Min burst pressure - bar

1520

Min bend radius - mm

120

ENDURO5000-16

Internal Size

16

Internal Diameter - DN

25

Internal Diameter - Inches

1

External Diameter - mm

37.9

Working Pressure - psi

5075

Working pressure - bar

350

Min burst pressure - psi

20300

Min burst pressure - bar

1400

Min bend radius - mm

150

ENDURO5000-20

Internal Size

20

Internal Diameter - DN

32

Internal Diameter - Inches

1 1/4

External Diameter - mm

45.9

Working Pressure - psi

5075

Working pressure - bar

350

Min burst pressure - psi

20300

Min burst pressure - bar

1400

Min bend radius - mm

210

ENDURO5000-24

Internal Size

24

Internal Diameter - DN

38

Internal Diameter - Inches

1 1/2

External Diameter - mm

53.4

Working Pressure - psi

5075

Working pressure - bar

350

Min burst pressure - psi

20300

Min burst pressure - bar

1400

Min bend radius - mm

250

ENDURO5000-32

Internal Size

32

Internal Diameter - DN

51

Internal Diameter - Inches

2

External Diameter - mm

71.5

Working Pressure - psi

5075

Working pressure - bar

350

Min burst pressure - psi

20300

Min burst pressure - bar

1400

Min bend radius - mm

540

INTRODUCING NEW ENDURO SPIRAL HOSE

ENDURO spiral is an extremely flexible slim profile hose featuring our very high wear and abrasion resistant SuperTuff (ST) MSHA cover for increased protection against abrasion in severe operating environments.

VIEW ENDURO BROCHURE
