Get the job done with the right equipment
Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.
Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.
The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.
To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.

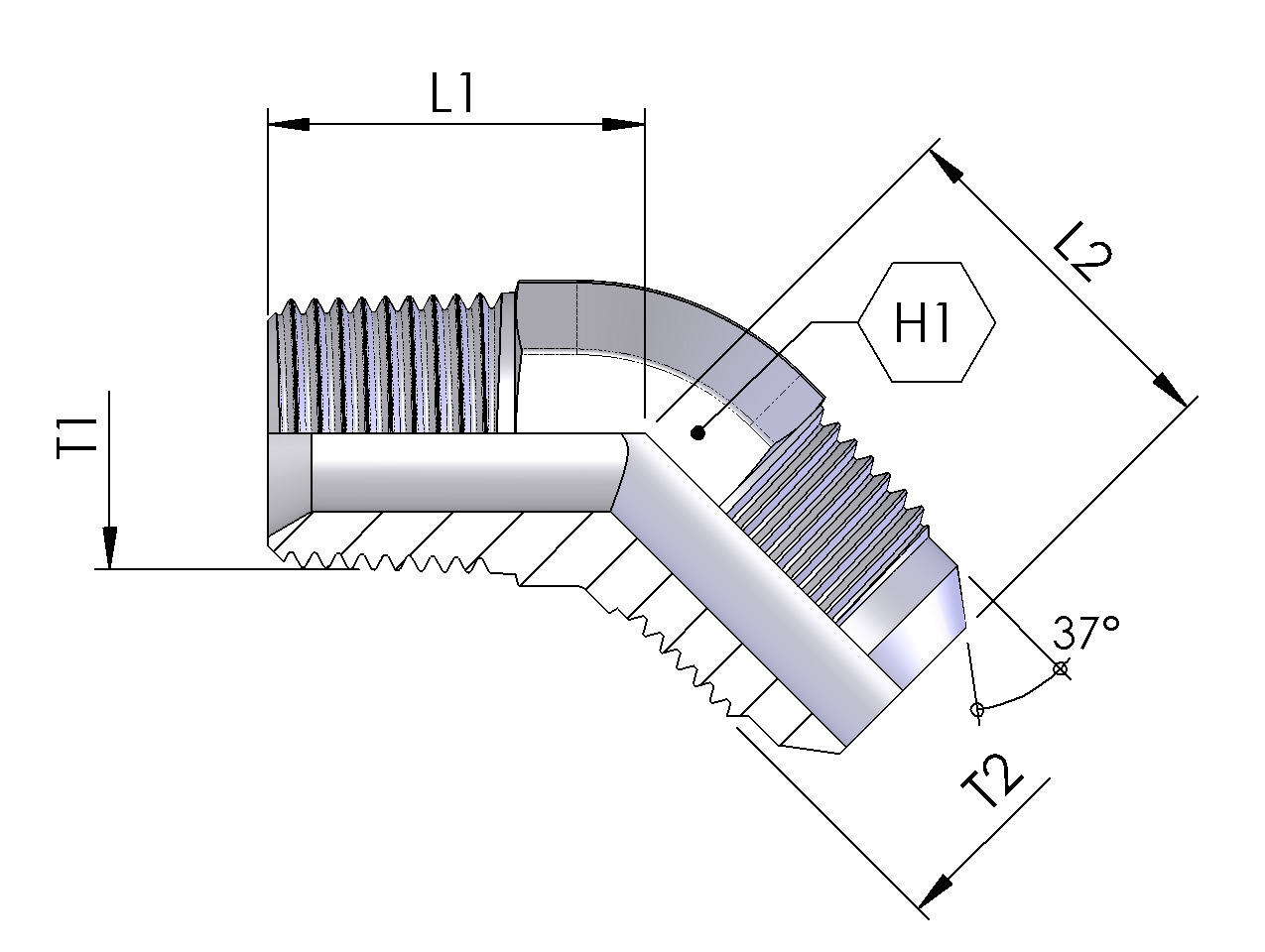

45 DEGREE ADAPTORS
BSPT MALE X JIC MALE
45 DEGREE ADAPTORS
BSPT MALE X JIC MALE
Product Data
A-G-45-0207
Short Code
AOG
T1
1/8-28
T2
7/16-20
H1
14
L1
17
L2
20
PN (bar)
345
A-G-45-0209
Short Code
T1
1/8-28
T2
9/16-18
H1
22
L1
L2
PN (bar)
A-G-45-0407
Short Code
AOJ
T1
1/4-19
T2
7/16-20
H1
14
L1
22
L2
20
PN (bar)
275
A-G-45-0408
Short Code
AOK
T1
1/4-19
T2
1/2-20
H1
14
L1
22
L2
20
PN (bar)
275
A-G-45-0409
Short Code
AOL
T1
1/4-19
T2
9/16-18
H1
14
L1
22
L2
21
PN (bar)
275
A-G-45-0412
Short Code
AOM
T1
1/4-19
T2
3/4-16
H1
19
L1
24
L2
25
PN (bar)
275
A-G-45-0609
Short Code
AON
T1
3/8-19
T2
9/16-18
H1
19
L1
24
L2
22
PN (bar)
210
A-G-45-0612
Short Code
AOP
T1
3/8-19
T2
3/4-16
H1
19
L1
24
L2
25
PN (bar)
210
A-G-45-0614
Short Code
AOQ
T1
3/8-19
T2
7/8-14
H1
22
L1
27
L2
28
PN (bar)
210
A-G-45-0809
Short Code
AOR
T1
1/2-14
T2
9/16-18
H1
22
L1
29
L2
23
PN (bar)
210
A-G-45-0812
Short Code
AOS
T1
1/2-14
T2
3/4-16
H1
22
L1
29
L2
25
PN (bar)
210
A-G-45-0814
Short Code
AOT
T1
1/2-14
T2
7/8-14
H1
22
L1
29
L2
28
PN (bar)
210
A-G-45-0817
Short Code
AOU
T1
1/2-14
T2
1.1/16-12
H1
27
L1
31
L2
32
PN (bar)
210
A-G-45-1212
Short Code
AOV
T1
3/4-14
T2
3/4-16
H1
27
L1
31
L2
27
PN (bar)
170
A-G-45-1214
Short Code
AOW
T1
3/4-14
T2
7/8-14
H1
27
L1
31
L2
30
PN (bar)
170
A-G-45-1217
Short Code
AOX
T1
3/4-14
T2
1.1/16-12
H1
27
L1
31
L2
32
PN (bar)
170
A-G-45-1221
Short Code
AOY
T1
3/4-14
T2
1.5/16-12
H1
35
L1
33
L2
38
PN (bar)
170
A-G-45-1621
Short Code
AOZ
T1
1-11
T2
1.5/16-12
H1
35
L1
38
L2
38
PN (bar)
140
A-G-45-2026
Short Code
APA
T1
1.1/4-11
T2
1.5/8-12
H1
44
L1
43
L2
41
PN (bar)
80
