Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.

Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.

The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.

To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.

  • Product Catalogue
  • Promotions
  • Our Agencies
  • Our Quality
  • Safety Data Sheets

90 DEGREE ADAPTORS

ORFS MALE X BSP ADJUSTABLE

90 DEGREE ADAPTORS

ORFS MALE X BSP ADJUSTABLE

90 DEGREE ADAPTORS

ORFS MALE X BSP ADJUSTABLE

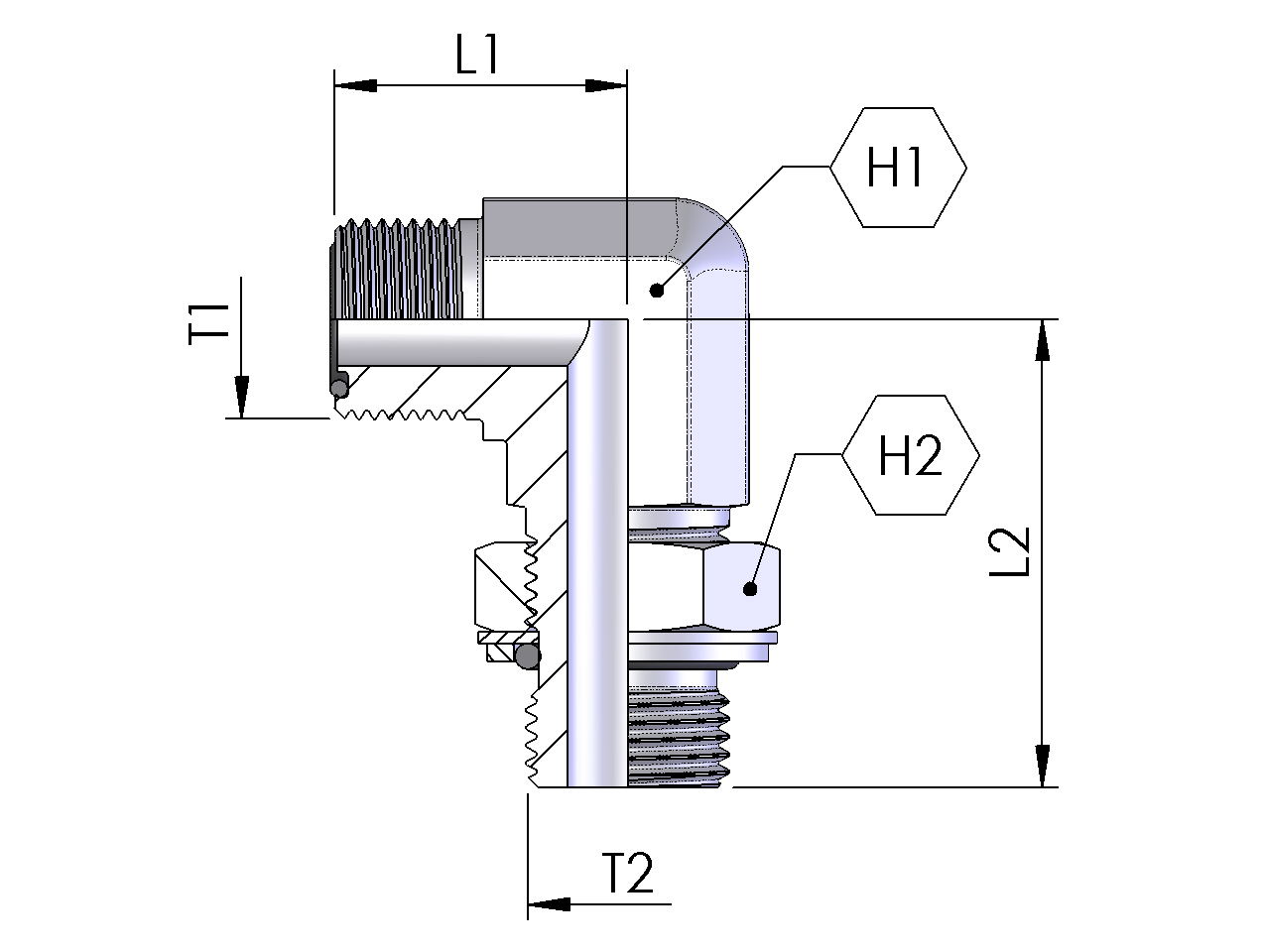

ORFS MALE X BSP ADJUSTABLE STUD 90° ELBOW

PartNumber
Short Code
T1
T2
H1
H2
L1
L2
PN (bar)
R-BP-90-0904
DZR
9/16-18
1/4-19
14
19
22
35
200
R-BP-90-1106
DZU
11/16-16
3/8-19
19
22
25
38
200
R-BP-90-1306
DZV
13/16-16
3/8-19
19
22
28
38
200
R-BP-90-1308
DZW
13/16-16
1/2-14
22
27
30
48
200
R-BP-90-1608
DZX
1-14
1/2-14
27
27
34
48
200
R-BP-90-1612
DZY
1-14
3/4-14
27
36
34
51
200
R-BP-90-1912
DZZ
1.3/16-12
3/4-14
30
36
38
52
200
R-BP-90-1916
EAA
1.3/16-12
1-11
36
41
42
59
200
R-BP-90-2316
EAC
1.7/16-12
1-11
36
41
42
59
200

Product Data

R-BP-90-0904

Short Code

DZR

T1

9/16-18

T2

1/4-19

H1

14

H2

19

L1

22

L2

35

PN (bar)

200

R-BP-90-1106

Short Code

DZU

T1

11/16-16

T2

3/8-19

H1

19

H2

22

L1

25

L2

38

PN (bar)

200

R-BP-90-1306

Short Code

DZV

T1

13/16-16

T2

3/8-19

H1

19

H2

22

L1

28

L2

38

PN (bar)

200

R-BP-90-1308

Short Code

DZW

T1

13/16-16

T2

1/2-14

H1

22

H2

27

L1

30

L2

48

PN (bar)

200

R-BP-90-1608

Short Code

DZX

T1

1-14

T2

1/2-14

H1

27

H2

27

L1

34

L2

48

PN (bar)

200

R-BP-90-1612

Short Code

DZY

T1

1-14

T2

3/4-14

H1

27

H2

36

L1

34

L2

51

PN (bar)

200

R-BP-90-1912

Short Code

DZZ

T1

1.3/16-12

T2

3/4-14

H1

30

H2

36

L1

38

L2

52

PN (bar)

200

R-BP-90-1916

Short Code

EAA

T1

1.3/16-12

T2

1-11

H1

36

H2

41

L1

42

L2

59

PN (bar)

200

R-BP-90-2316

Short Code

EAC

T1

1.7/16-12

T2

1-11

H1

36

H2

41

L1

42

L2

59

PN (bar)

200
