Get the job done with the right equipment

Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.

Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.

The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.

To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.

STRAIGHT ADAPTORS

BSP STUD X MET LIGHT FEMALE

STRAIGHT ADAPTORS

BSP STUD X MET LIGHT FEMALE

BX-UL

BSP STUD X MET LIGHT FEMALE

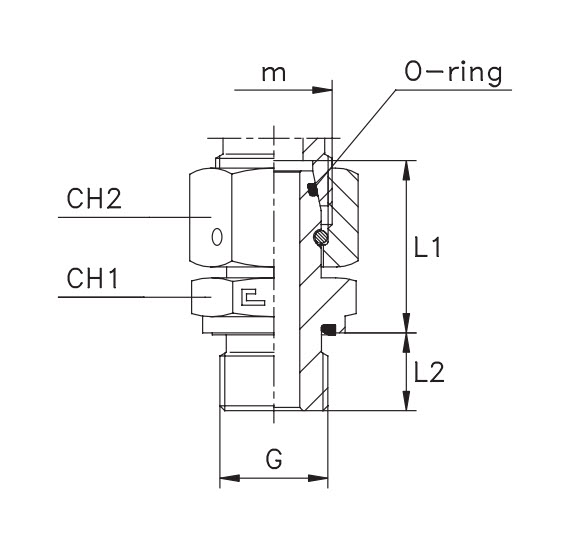

BSP STUD CAPTIVE SEAL X METRIC 24° CONE LIGHT FEMALE SWIVEL NUT STRAIGHT

BSP STUD CAPTIVE SEAL X METRIC 24° CONE LIGHT FEMALE SWIVEL NUT STRAIGHT

PartNumber
G
m
Suits Tube
L1
L2
CH1
CH2
NP (bar)
BX-UL-0212
1/8-28
M12-1.5
6
25
8
14
14
500
BX-UL-0414
1/4-19
M14-1.5
8
30
12
19
17
500
BX-UL-0416
1/4-19
M16-1.5
10
28
12
19
19
500
BX-UL-0618
3/8-19
M18-1.5
12
34
12
22
22
400
BX-UL-0822
1/2-14
M22-1.5
15
32
14
27
27
400
BX-UL-0826
1/2-14
M26-1.5
18
32
14
27
32
400
BX-UL-1230
3/4-14
M30-2
22
33
16
32
36
250
BX-UL-1636
1-11
M36-2
28
35
18
41
41
250

Product Data

BX-UL-0212

G

1/8-28

m

M12-1.5

Suits Tube

6

L1

25

L2

8

CH1

14

CH2

14

NP (bar)

500

BX-UL-0414

G

1/4-19

m

M14-1.5

Suits Tube

8

L1

30

L2

12

CH1

19

CH2

17

NP (bar)

500

BX-UL-0416

G

1/4-19

m

M16-1.5

Suits Tube

10

L1

28

L2

12

CH1

19

CH2

19

NP (bar)

500

BX-UL-0618

G

3/8-19

m

M18-1.5

Suits Tube

12

L1

34

L2

12

CH1

22

CH2

22

NP (bar)

400

BX-UL-0822

G

1/2-14

m

M22-1.5

Suits Tube

15

L1

32

L2

14

CH1

27

CH2

27

NP (bar)

400

BX-UL-0826

G

1/2-14

m

M26-1.5

Suits Tube

18

L1

32

L2

14

CH1

27

CH2

32

NP (bar)

400

BX-UL-1230

G

3/4-14

m

M30-2

Suits Tube

22

L1

33

L2

16

CH1

32

CH2

36

NP (bar)

250

BX-UL-1636

G

1-11

m

M36-2

Suits Tube

28

L1

35

L2

18

CH1

41

CH2

41

NP (bar)

250

INTRODUCING NEW ENDURO SPIRAL HOSE

ENDURO spiral is an extremely flexible slim profile hose featuring our very high wear and abrasion resistant SuperTuff (ST) MSHA cover for increased protection against abrasion in severe operating environments.
