STRAIGHT ADAPTORS

Product catalogue Adaptors STRAIGHT ADAPTORS JIC MALE X UNO MALE

JIC MALE X UNO MALE

STRAIGHT ADAPTORS

JIC MALE X UNO MALE

G-N

JIC MALE X UNO MALE

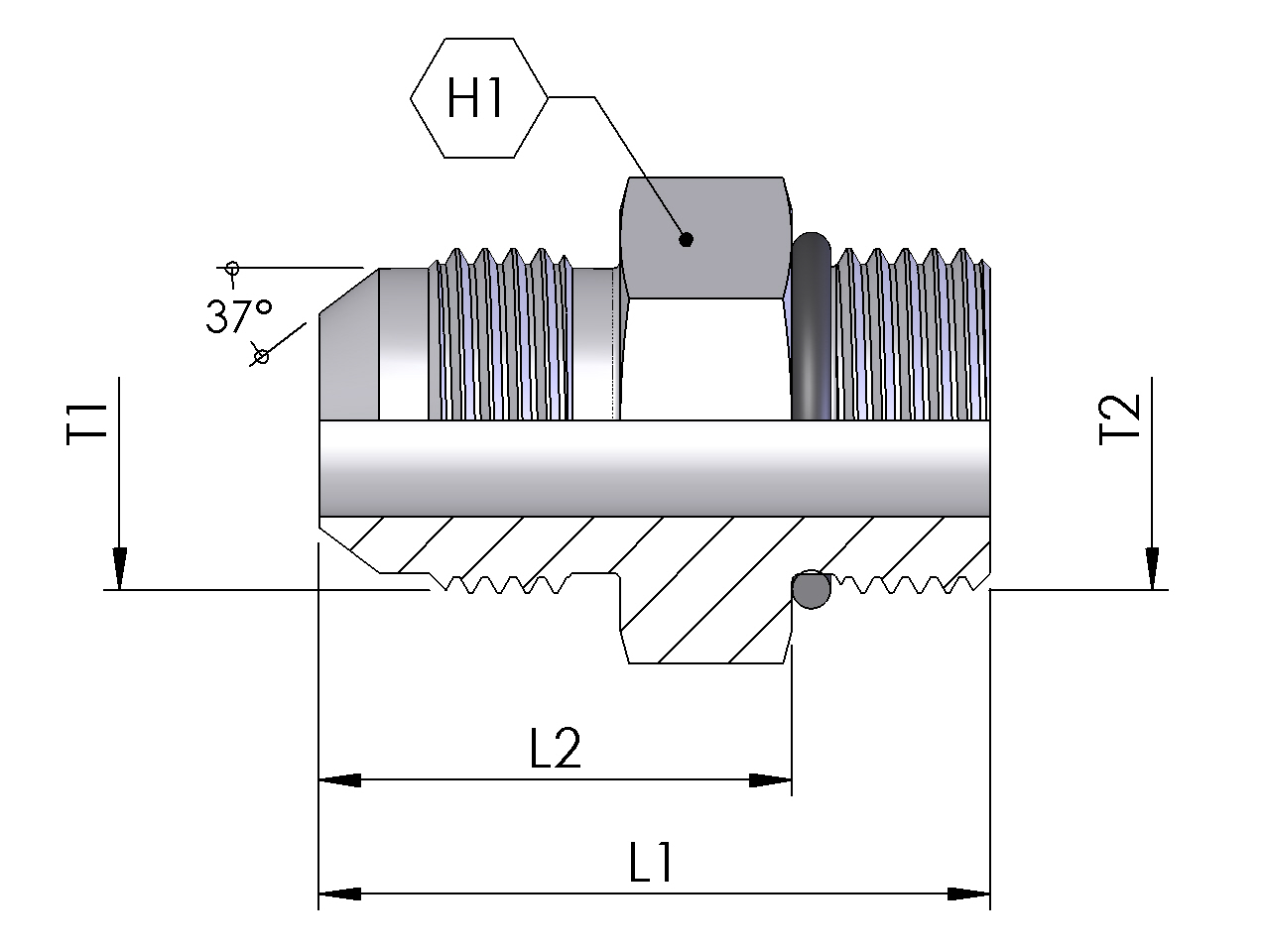

JIC 37° FLARE MALE X UNO FIXED STUD STRAIGHT

  • ISO 8434-2

JIC 37° FLARE MALE X UNO FIXED STUD STRAIGHT

Download PDF
PartNumber
Short Code
T1
T2
H1
L1
L2
PN (bar)
G-N-0707
CPZ
7/16-20
7/16-20
14
31
22
315
G-N-0709
CQA
7/16-20
9/16-18
17
33
23
315
G-N-0712
7/16-20
3/4-16
22
35
14
G-N-0807
1/2-20
7/16-20
14
33
14
G-N-0808
1/2-20
1/2-20
G-N-0809
1/2-20
9/16-18
18
33
14
G-N-0812
1/2-20
3/4-16
G-N-0814
1/2-20
7/8-14
G-N-0907
9/16-18
7/16-20
16
32
14
G-N-0908
9/16-18
1/2-20
16
32
14
G-N-0909
CQK
9/16-18
9/16-18
17
33
23
315
G-N-0912
CQM
9/16-18
3/4-16
22
35
24
315
G-N-0914
9/16-18
7/8-14
25
38
14
G-N-0917
9/16-18
1.1/16-12
32
42
14
G-N-1209
3/4-14
9/16-18
21
37
17
G-N-1212
CQS
3/4-16
3/4-16
22
38
27
310
G-N-1214
CQT
3/4-16
7/8-14
27
41
28
250
G-N-1217
3/4-14
1.1/16-12
32
45
17
G-N-1219
3/4-14
1.3/16-12
G-N-1221
3/4-14
1.5/16-12
38
45
17
G-N-1409
7/8-14
9/16-18
G-N-1412
7/8-14
3/4-16
24
42
19
G-N-1414
CQZ
7/8-14
7/8-14
27
43
30
240
G-N-1417
7/8-14
1.1/16-12
32
47
19
G-N-1421
7/8-14
1.5/16-12
38
48
19
G-N-1712
1.1/16-12
3/4-16
29
49
22
G-N-1714
1.1/16-12
7/8-14
29
48
22
G-N-1717
CRF
1.1/16-12
1.1/16-12
32
50
35
240
G-N-1719
1.1/16-12
1.3/16-12
G-N-1721
1.1/16-12
1.5/16-12
38
51
22
G-N-1726
1.1/16-12
1.5/8-12
48
53
22
G-N-1917
1.3/16-12
1.1/16-12
G-N-1919
1.3/16-12
1.3/16-12
G-N-2117
1.5/16-12
1.1/16-12
35
52
23
G-N-2119
1.5/16-12
1.3/16-12
G-N-2121
1.5/16-12
1.5/16-12
38
52
23
G-N-2126
1.5/16-12
1.5/8-12
48
54
23
G-N-2621
1.5/8-12
1.5/16-12
43
59
24
G-N-2626
1.5/8-12
1.5/8-12
48
55
24
G-N-2630
1.5/8-12
1.7/8-12
54
57
24
G-N-3026
1.7/8-12
1.5/8-12
51
64
28
G-N-3030
1.7/8-12
1.7/8-12

Product Data

G-N-0707

Short Code

CPZ

T1

7/16-20

T2

7/16-20

H1

14

L1

31

L2

22

PN (bar)

315

G-N-0709

Short Code

CQA

T1

7/16-20

T2

9/16-18

H1

17

L1

33

L2

23

PN (bar)

315

G-N-0712

Short Code

T1

7/16-20

T2

3/4-16

H1

22

L1

35

L2

14

PN (bar)

G-N-0807

Short Code

T1

1/2-20

T2

7/16-20

H1

14

L1

33

L2

14

PN (bar)

G-N-0808

Short Code

T1

1/2-20

T2

1/2-20

H1

L1

L2

PN (bar)

G-N-0809

Short Code

T1

1/2-20

T2

9/16-18

H1

18

L1

33

L2

14

PN (bar)

G-N-0812

Short Code

T1

1/2-20

T2

3/4-16

H1

L1

L2

PN (bar)

G-N-0814

Short Code

T1

1/2-20

T2

7/8-14

H1

L1

L2

PN (bar)

G-N-0907

Short Code

T1

9/16-18

T2

7/16-20

H1

16

L1

32

L2

14

PN (bar)

G-N-0908

Short Code

T1

9/16-18

T2

1/2-20

H1

16

L1

32

L2

14

PN (bar)

G-N-0909

Short Code

CQK

T1

9/16-18

T2

9/16-18

H1

17

L1

33

L2

23

PN (bar)

315

G-N-0912

Short Code

CQM

T1

9/16-18

T2

3/4-16

H1

22

L1

35

L2

24

PN (bar)

315

G-N-0914

Short Code

T1

9/16-18

T2

7/8-14

H1

25

L1

38

L2

14

PN (bar)

G-N-0917

Short Code

T1

9/16-18

T2

1.1/16-12

H1

32

L1

42

L2

14

PN (bar)

G-N-1209

Short Code

T1

3/4-14

T2

9/16-18

H1

21

L1

37

L2

17

PN (bar)

G-N-1212

Short Code

CQS

T1

3/4-16

T2

3/4-16

H1

22

L1

38

L2

27

PN (bar)

310

G-N-1214

Short Code

CQT

T1

3/4-16

T2

7/8-14

H1

27

L1

41

L2

28

PN (bar)

250

G-N-1217

Short Code

T1

3/4-14

T2

1.1/16-12

H1

32

L1

45

L2

17

PN (bar)

G-N-1219

Short Code

T1

3/4-14

T2

1.3/16-12

H1

L1

L2

PN (bar)

G-N-1221

Short Code

T1

3/4-14

T2

1.5/16-12

H1

38

L1

45

L2

17

PN (bar)

G-N-1409

Short Code

T1

7/8-14

T2

9/16-18

H1

L1

L2

PN (bar)

G-N-1412

Short Code

T1

7/8-14

T2

3/4-16

H1

24

L1

42

L2

19

PN (bar)

G-N-1414

Short Code

CQZ

T1

7/8-14

T2

7/8-14

H1

27

L1

43

L2

30

PN (bar)

240

G-N-1417

Short Code

T1

7/8-14

T2

1.1/16-12

H1

32

L1

47

L2

19

PN (bar)

G-N-1421

Short Code

T1

7/8-14

T2

1.5/16-12

H1

38

L1

48

L2

19

PN (bar)

G-N-1712

Short Code

T1

1.1/16-12

T2

3/4-16

H1

29

L1

49

L2

22

PN (bar)

G-N-1714

Short Code

T1

1.1/16-12

T2

7/8-14

H1

29

L1

48

L2

22

PN (bar)

G-N-1717

Short Code

CRF

T1

1.1/16-12

T2

1.1/16-12

H1

32

L1

50

L2

35

PN (bar)

240

G-N-1719

Short Code

T1

1.1/16-12

T2

1.3/16-12

H1

L1

L2

PN (bar)

G-N-1721

Short Code

T1

1.1/16-12

T2

1.5/16-12

H1

38

L1

51

L2

22

PN (bar)

G-N-1726

Short Code

T1

1.1/16-12

T2

1.5/8-12

H1

48

L1

53

L2

22

PN (bar)

G-N-1917

Short Code

T1

1.3/16-12

T2

1.1/16-12

H1

L1

L2

PN (bar)

G-N-1919

Short Code

T1

1.3/16-12

T2

1.3/16-12

H1

L1

L2

PN (bar)

G-N-2117

Short Code

T1

1.5/16-12

T2

1.1/16-12

H1

35

L1

52

L2

23

PN (bar)

G-N-2119

Short Code

T1

1.5/16-12

T2

1.3/16-12

H1

L1

L2

PN (bar)

G-N-2121

Short Code

T1

1.5/16-12

T2

1.5/16-12

H1

38

L1

52

L2

23

PN (bar)

G-N-2126

Short Code

T1

1.5/16-12

T2

1.5/8-12

H1

48

L1

54

L2

23

PN (bar)

G-N-2621

Short Code

T1

1.5/8-12

T2

1.5/16-12

H1

43

L1

59

L2

24

PN (bar)

G-N-2626

Short Code

T1

1.5/8-12

T2

1.5/8-12

H1

48

L1

55

L2

24

PN (bar)

G-N-2630

Short Code

T1

1.5/8-12

T2

1.7/8-12

H1

54

L1

57

L2

24

PN (bar)

G-N-3026

Short Code

T1

1.7/8-12

T2

1.5/8-12

H1

51

L1

64

L2

28

PN (bar)

G-N-3030

Short Code

T1

1.7/8-12

T2

1.7/8-12

H1

L1

L2

PN (bar)
