Get the job done with the right equipment
Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.
Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.
The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.
To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.
- Product Catalogue
- Safety Data Sheets
STRAIGHT ADAPTORS
PIPEWELD X BSP FEMALE
STRAIGHT ADAPTORS
PIPEWELD X BSP FEMALE
STRAIGHT ADAPTORS
PIPEWELD X BSP FEMALE

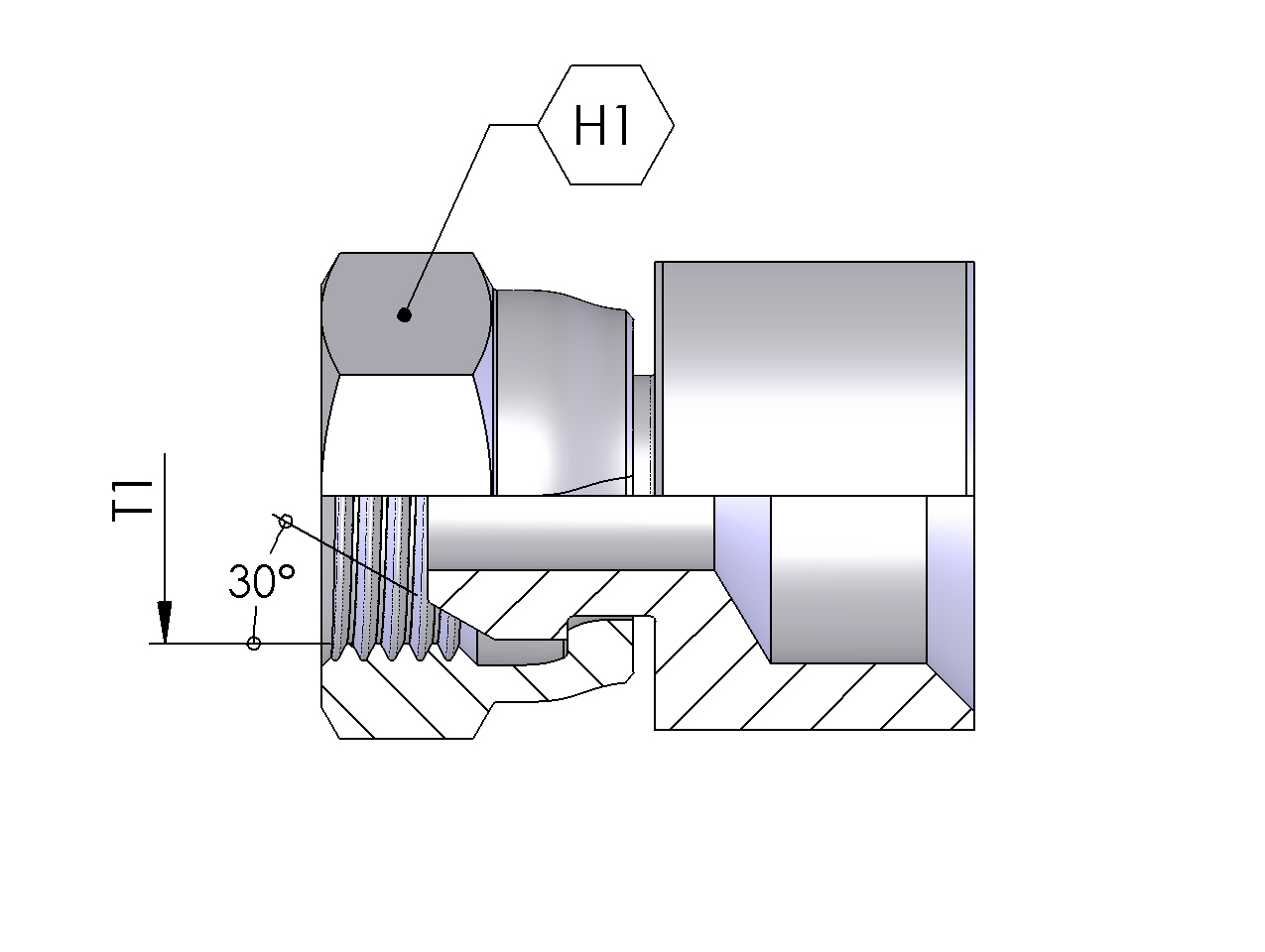

SCHEDULE PIPE WELD SOCKET X BSP 60° CONE FEMALE SWIVEL NUT
Product Data
TWS-C-0808
Suits Schedule Pipe
1/2
BSPP Female Thread (T1)
1/2-14
Weld Socket
21.5 x 13
L1 - mm
35
L2 - mm
15
Hex A/F (H1)
27
TWS-C-1212
Suits Schedule Pipe
3/4
BSPP Female Thread (T1)
3/4-14
Weld Socket
26.8 x 16
L1 - mm
42
L2 - mm
17
Hex A/F (H1)
32
TWS-C-1616
Suits Schedule Pipe
1
BSPP Female Thread (T1)
1-11
Weld Socket
33.5 x 20
L1 - mm
48
L2 - mm
18
Hex A/F (H1)
38
TWS-C-2020
Suits Schedule Pipe
1.1/4
BSPP Female Thread (T1)
1.1/4-11
Weld Socket
L1 - mm
L2 - mm
Hex A/F (H1)
TWS-C-2424
Suits Schedule Pipe
1.1/2
BSPP Female Thread (T1)
1.1/2-11
Weld Socket
L1 - mm
L2 - mm
Hex A/F (H1)
