JIC

Product catalogue Carbon Steel Swage Couplings JIC JIC FEMALE 90° ELBOW

JIC FEMALE 90° ELBOW

JIC

JIC FEMALE 90° ELBOW

JIC

JIC FEMALE 90° ELBOW

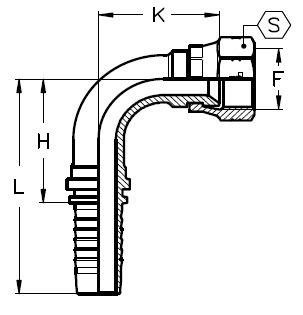

JIC 37° FLARE FEMALE SWIVEL NUT 90° ELBOW

Download PDF
PartNumber
JIC Female Thread (F)
Hose I.D (Inches)
Hose I.D (mm)
Dash size
Hex A/F (S)
Drop mm (K)
Cutoff (H)
Length mm (L)
Working Pressure(bar)
Working Pressure (psi)
S55-0703
7/16-20
3/16
5
03
14
21
21
46
415
6000
S55-0704
7/16-20
1/4
6.3
04
14
26
25.5
53.5
415
6000
S55-0804
1/2-20
1/4
6.3
04
17
26
25.5
53.5
400
5800
S55-0904
9/16-18
1/4
6.3
04
19
27
25.5
53.5
350
5000
S55-0906
9/16-18
3/8
10
06
19
33
31
61.5
350
5000
S55-1206
3/4-16
3/8
10
06
22
33
31
61.5
350
5000
S55-1208
3/4-16
1/2
12.5
08
22
39
37
70
350
5000
S55-1406
7/8-14
3/8
10
06
27
31
31
61.5
350
5000
S55-1408
7/8-14
1/2
12.5
08
27
40
37
70
350
5000
S55-1410
7/8-14
5/8
16
10
27
45
45
81
350
5000
S55-1412
7/8-14
3/4
19
12
27
54
55
95
350
5000
S55-1708
1 1/16-12
1/2
12.5
08
32
40
40
73
350
5000
S55-1710
1 1/16-12
5/8
16
10
32
47
45
81
350
5000
S55-1712
1 1/16-12
3/4
19
12
32
53
55
95
350
5000
S55-1716
1 1/16-12
1
25
16
32
71
71
122
280
4000
S55-1912
1 3/16-12
3/4
19
12
36
54
55
95
280
4000
S55-1916
1 3/16-12
1
25.4
16
35
69
64
S55-2112
1 5/16-12
3/4
19
12
41
56
55
95
280
4000
S55-2116
1 5/16-12
1
25
16
41
67
71
128
280
4000
S55-2616
1 5/8-12
1
25
16
50
69
71
128
210
3000
S55-2620
1 5/8-12
1 1/4
31.5
20
50
81
87
154
210
3000
S55-3024
1 7/8-12
1 1/2
38
24
60
82
87
154
185
2700
S55-4032
2 1/2-12
2
51
32
75
132
140
237
175
2500

Product Data

S55-0703

JIC Female Thread (F)

7/16-20

Hose I.D (Inches)

3/16

Hose I.D (mm)

5

Dash size

03

Hex A/F (S)

14

Drop mm (K)

21

Cutoff (H)

21

Length mm (L)

46

Working Pressure(bar)

415

Working Pressure (psi)

6000

S55-0704

JIC Female Thread (F)

7/16-20

Hose I.D (Inches)

1/4

Hose I.D (mm)

6.3

Dash size

04

Hex A/F (S)

14

Drop mm (K)

26

Cutoff (H)

25.5

Length mm (L)

53.5

Working Pressure(bar)

415

Working Pressure (psi)

6000

S55-0804

JIC Female Thread (F)

1/2-20

Hose I.D (Inches)

1/4

Hose I.D (mm)

6.3

Dash size

04

Hex A/F (S)

17

Drop mm (K)

26

Cutoff (H)

25.5

Length mm (L)

53.5

Working Pressure(bar)

400

Working Pressure (psi)

5800

S55-0904

JIC Female Thread (F)

9/16-18

Hose I.D (Inches)

1/4

Hose I.D (mm)

6.3

Dash size

04

Hex A/F (S)

19

Drop mm (K)

27

Cutoff (H)

25.5

Length mm (L)

53.5

Working Pressure(bar)

350

Working Pressure (psi)

5000

S55-0906

JIC Female Thread (F)

9/16-18

Hose I.D (Inches)

3/8

Hose I.D (mm)

10

Dash size

06

Hex A/F (S)

19

Drop mm (K)

33

Cutoff (H)

31

Length mm (L)

61.5

Working Pressure(bar)

350

Working Pressure (psi)

5000

S55-1206

JIC Female Thread (F)

3/4-16

Hose I.D (Inches)

3/8

Hose I.D (mm)

10

Dash size

06

Hex A/F (S)

22

Drop mm (K)

33

Cutoff (H)

31

Length mm (L)

61.5

Working Pressure(bar)

350

Working Pressure (psi)

5000

S55-1208

JIC Female Thread (F)

3/4-16

Hose I.D (Inches)

1/2

Hose I.D (mm)

12.5

Dash size

08

Hex A/F (S)

22

Drop mm (K)

39

Cutoff (H)

37

Length mm (L)

70

Working Pressure(bar)

350

Working Pressure (psi)

5000

S55-1406

JIC Female Thread (F)

7/8-14

Hose I.D (Inches)

3/8

Hose I.D (mm)

10

Dash size

06

Hex A/F (S)

27

Drop mm (K)

31

Cutoff (H)

31

Length mm (L)

61.5

Working Pressure(bar)

350

Working Pressure (psi)

5000

S55-1408

JIC Female Thread (F)

7/8-14

Hose I.D (Inches)

1/2

Hose I.D (mm)

12.5

Dash size

08

Hex A/F (S)

27

Drop mm (K)

40

Cutoff (H)

37

Length mm (L)

70

Working Pressure(bar)

350

Working Pressure (psi)

5000

S55-1410

JIC Female Thread (F)

7/8-14

Hose I.D (Inches)

5/8

Hose I.D (mm)

16

Dash size

10

Hex A/F (S)

27

Drop mm (K)

45

Cutoff (H)

45

Length mm (L)

81

Working Pressure(bar)

350

Working Pressure (psi)

5000

S55-1412

JIC Female Thread (F)

7/8-14

Hose I.D (Inches)

3/4

Hose I.D (mm)

19

Dash size

12

Hex A/F (S)

27

Drop mm (K)

54

Cutoff (H)

55

Length mm (L)

95

Working Pressure(bar)

350

Working Pressure (psi)

5000

S55-1708

JIC Female Thread (F)

1 1/16-12

Hose I.D (Inches)

1/2

Hose I.D (mm)

12.5

Dash size

08

Hex A/F (S)

32

Drop mm (K)

40

Cutoff (H)

40

Length mm (L)

73

Working Pressure(bar)

350

Working Pressure (psi)

5000

S55-1710

JIC Female Thread (F)

1 1/16-12

Hose I.D (Inches)

5/8

Hose I.D (mm)

16

Dash size

10

Hex A/F (S)

32

Drop mm (K)

47

Cutoff (H)

45

Length mm (L)

81

Working Pressure(bar)

350

Working Pressure (psi)

5000

S55-1712

JIC Female Thread (F)

1 1/16-12

Hose I.D (Inches)

3/4

Hose I.D (mm)

19

Dash size

12

Hex A/F (S)

32

Drop mm (K)

53

Cutoff (H)

55

Length mm (L)

95

Working Pressure(bar)

350

Working Pressure (psi)

5000

S55-1716

JIC Female Thread (F)

1 1/16-12

Hose I.D (Inches)

1

Hose I.D (mm)

25

Dash size

16

Hex A/F (S)

32

Drop mm (K)

71

Cutoff (H)

71

Length mm (L)

122

Working Pressure(bar)

280

Working Pressure (psi)

4000

S55-1912

JIC Female Thread (F)

1 3/16-12

Hose I.D (Inches)

3/4

Hose I.D (mm)

19

Dash size

12

Hex A/F (S)

36

Drop mm (K)

54

Cutoff (H)

55

Length mm (L)

95

Working Pressure(bar)

280

Working Pressure (psi)

4000

S55-1916

JIC Female Thread (F)

1 3/16-12

Hose I.D (Inches)

1

Hose I.D (mm)

25.4

Dash size

16

Hex A/F (S)

35

Drop mm (K)

69

Cutoff (H)

64

Length mm (L)

Working Pressure(bar)

Working Pressure (psi)

S55-2112

JIC Female Thread (F)

1 5/16-12

Hose I.D (Inches)

3/4

Hose I.D (mm)

19

Dash size

12

Hex A/F (S)

41

Drop mm (K)

56

Cutoff (H)

55

Length mm (L)

95

Working Pressure(bar)

280

Working Pressure (psi)

4000

S55-2116

JIC Female Thread (F)

1 5/16-12

Hose I.D (Inches)

1

Hose I.D (mm)

25

Dash size

16

Hex A/F (S)

41

Drop mm (K)

67

Cutoff (H)

71

Length mm (L)

128

Working Pressure(bar)

280

Working Pressure (psi)

4000

S55-2616

JIC Female Thread (F)

1 5/8-12

Hose I.D (Inches)

1

Hose I.D (mm)

25

Dash size

16

Hex A/F (S)

50

Drop mm (K)

69

Cutoff (H)

71

Length mm (L)

128

Working Pressure(bar)

210

Working Pressure (psi)

3000

S55-2620

JIC Female Thread (F)

1 5/8-12

Hose I.D (Inches)

1 1/4

Hose I.D (mm)

31.5

Dash size

20

Hex A/F (S)

50

Drop mm (K)

81

Cutoff (H)

87

Length mm (L)

154

Working Pressure(bar)

210

Working Pressure (psi)

3000

S55-3024

JIC Female Thread (F)

1 7/8-12

Hose I.D (Inches)

1 1/2

Hose I.D (mm)

38

Dash size

24

Hex A/F (S)

60

Drop mm (K)

82

Cutoff (H)

87

Length mm (L)

154

Working Pressure(bar)

185

Working Pressure (psi)

2700

S55-4032

JIC Female Thread (F)

2 1/2-12

Hose I.D (Inches)

2

Hose I.D (mm)

51

Dash size

32

Hex A/F (S)

75

Drop mm (K)

132

Cutoff (H)

140

Length mm (L)

237

Working Pressure(bar)

175

Working Pressure (psi)

2500
