JIC
JIC FEMALE 90° ELBOW
JIC
JIC FEMALE 90° ELBOW

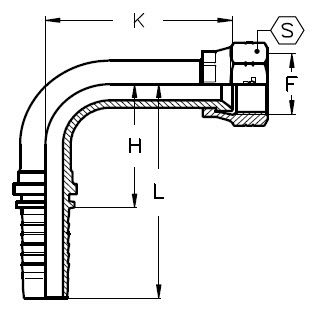

Product Data
S58-0704
JIC Female Thread (F)
7/16-20
Hose I.D (Inches)
1/4
Hose I.D (mm)
6.3
Dash size
04
Hex A/F (S)
14
Drop mm (K)
46
Cutoff (H)
25.5
Length mm (L)
53.5
Working Pressure (bar)
400
Working Pressure (psi)
5800
S58-0904
JIC Female Thread (F)
9/16-18
Hose I.D (Inches)
1/4
Hose I.D (mm)
6.3
Dash size
04
Hex A/F (S)
17
Drop mm (K)
46
Cutoff (H)
25.5
Length mm (L)
53.5
Working Pressure (bar)
350
Working Pressure (psi)
5000
S58-0906
JIC Female Thread (F)
9/16-18
Hose I.D (Inches)
3/8
Hose I.D (mm)
10
Dash size
06
Hex A/F (S)
19
Drop mm (K)
54
Cutoff (H)
31
Length mm (L)
61.5
Working Pressure (bar)
350
Working Pressure (psi)
5000
S58-1206
JIC Female Thread (F)
3/4-16
Hose I.D (Inches)
3/8
Hose I.D (mm)
10
Dash size
06
Hex A/F (S)
22
Drop mm (K)
64
Cutoff (H)
31
Length mm (L)
61.5
Working Pressure (bar)
350
Working Pressure (psi)
5000
S58-1208
JIC Female Thread (F)
3/4-16
Hose I.D (Inches)
1/2
Hose I.D (mm)
12.5
Dash size
08
Hex A/F (S)
22
Drop mm (K)
64
Cutoff (H)
38
Length mm (L)
71
Working Pressure (bar)
350
Working Pressure (psi)
5000
S58-1408
JIC Female Thread (F)
7/8-14
Hose I.D (Inches)
1/2
Hose I.D (mm)
12.5
Dash size
08
Hex A/F (S)
27
Drop mm (K)
70
Cutoff (H)
38
Length mm (L)
71
Working Pressure (bar)
350
Working Pressure (psi)
5000
S58-1712
JIC Female Thread (F)
1 1/16-12
Hose I.D (Inches)
3/4
Hose I.D (mm)
19
Dash size
12
Hex A/F (S)
32
Drop mm (K)
96
Cutoff (H)
55
Length mm (L)
95
Working Pressure (bar)
350
Working Pressure (psi)
5000
S58-2116
JIC Female Thread (F)
1 5/16-12
Hose I.D (Inches)
1
Hose I.D (mm)
25
Dash size
16
Hex A/F (S)
41
Drop mm (K)
116
Cutoff (H)
71
Length mm (L)
128
Working Pressure (bar)
280
Working Pressure (psi)
4000
