JIC

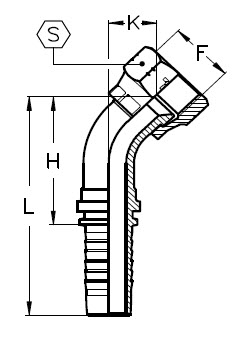

JIC FEMALE 45° ELBOW
Product Data
S64-0704
JIC Female Thread (F)
7/16-20
Hose I.D (Inches)
1/4
Hose I.D (mm)
6.3
Dash size
04
Hex A/F (S)
14
Drop mm (K)
10
Cutoff (H)
31
Length mm (L)
59
Working Pressure (bar)
400
Working Pressure (psi)
5800
S64-0706
JIC Female Thread (F)
7/16-20
Hose I.D (Inches)
3/8
Hose I.D (mm)
9.5
Dash size
06
Hex A/F (S)
14
Drop mm (K)
Cutoff (H)
Length mm (L)
Working Pressure (bar)
Working Pressure (psi)
S64-0804
JIC Female Thread (F)
1/2-20
Hose I.D (Inches)
1/4
Hose I.D (mm)
6.3
Dash size
04
Hex A/F (S)
17
Drop mm (K)
11
Cutoff (H)
32
Length mm (L)
60
Working Pressure (bar)
400
Working Pressure (psi)
5800
S64-0904
JIC Female Thread (F)
9/16-18
Hose I.D (Inches)
1/4
Hose I.D (mm)
6.3
Dash size
04
Hex A/F (S)
19
Drop mm (K)
12
Cutoff (H)
33
Length mm (L)
61
Working Pressure (bar)
350
Working Pressure (psi)
5000
S64-0906
JIC Female Thread (F)
9/16-18
Hose I.D (Inches)
3/8
Hose I.D (mm)
10
Dash size
06
Hex A/F (S)
19
Drop mm (K)
12
Cutoff (H)
35.5
Length mm (L)
66
Working Pressure (bar)
350
Working Pressure (psi)
5000
S64-1206
JIC Female Thread (F)
3/4-16
Hose I.D (Inches)
3/8
Hose I.D (mm)
10
Dash size
06
Hex A/F (S)
22
Drop mm (K)
14
Cutoff (H)
37.5
Length mm (L)
68
Working Pressure (bar)
350
Working Pressure (psi)
5000
S64-1208
JIC Female Thread (F)
3/4-16
Hose I.D (Inches)
1/2
Hose I.D (mm)
12.5
Dash size
08
Hex A/F (S)
22
Drop mm (K)
14.5
Cutoff (H)
41
Length mm (L)
76
Working Pressure (bar)
350
Working Pressure (psi)
5000
S64-1408
JIC Female Thread (F)
7/8-14
Hose I.D (Inches)
1/2
Hose I.D (mm)
12.5
Dash size
08
Hex A/F (S)
27
Drop mm (K)
16
Cutoff (H)
43
Length mm (L)
76
Working Pressure (bar)
350
Working Pressure (psi)
5000
S64-1410
JIC Female Thread (F)
7/8-14
Hose I.D (Inches)
5/8
Hose I.D (mm)
16
Dash size
10
Hex A/F (S)
27
Drop mm (K)
16
Cutoff (H)
47
Length mm (L)
83
Working Pressure (bar)
350
Working Pressure (psi)
5000
S64-1412
JIC Female Thread (F)
7/8-14
Hose I.D (Inches)
3/4
Hose I.D (mm)
19
Dash size
12
Hex A/F (S)
27
Drop mm (K)
27
Cutoff (H)
64
Length mm (L)
105
Working Pressure (bar)
350
Working Pressure (psi)
5000
S64-1708
JIC Female Thread (F)
1 1/16-12
Hose I.D (Inches)
1/2
Hose I.D (mm)
12.5
Dash size
08
Hex A/F (S)
32
Drop mm (K)
19
Cutoff (H)
50
Length mm (L)
86
Working Pressure (bar)
350
Working Pressure (psi)
5000
S64-1710
JIC Female Thread (F)
1 1/16-12
Hose I.D (Inches)
5/8
Hose I.D (mm)
16
Dash size
10
Hex A/F (S)
32
Drop mm (K)
19
Cutoff (H)
45.5
Length mm (L)
78.5
Working Pressure (bar)
350
Working Pressure (psi)
5000
S64-1712
JIC Female Thread (F)
1 1/16-12
Hose I.D (Inches)
3/4
Hose I.D (mm)
19
Dash size
12
Hex A/F (S)
32
Drop mm (K)
22
Cutoff (H)
59
Length mm (L)
99
Working Pressure (bar)
350
Working Pressure (psi)
5000
S64-1912
JIC Female Thread (F)
1 3/16-12
Hose I.D (Inches)
3/4
Hose I.D (mm)
19
Dash size
12
Hex A/F (S)
36
Drop mm (K)
22
Cutoff (H)
59
Length mm (L)
100
Working Pressure (bar)
280
Working Pressure (psi)
4000
S64-2112
JIC Female Thread (F)
1 5/16-12
Hose I.D (Inches)
3/4
Hose I.D (mm)
19
Dash size
12
Hex A/F (S)
41
Drop mm (K)
24
Cutoff (H)
61
Length mm (L)
101
Working Pressure (bar)
280
Working Pressure (psi)
4000
S64-2116
JIC Female Thread (F)
1 5/16-12
Hose I.D (Inches)
1
Hose I.D (mm)
25
Dash size
16
Hex A/F (S)
41
Drop mm (K)
32
Cutoff (H)
82
Length mm (L)
138
Working Pressure (bar)
280
Working Pressure (psi)
4000
S64-2620
JIC Female Thread (F)
1 5/8-12
Hose I.D (Inches)
1 1/4
Hose I.D (mm)
31.5
Dash size
20
Hex A/F (S)
50
Drop mm (K)
38
Cutoff (H)
98
Length mm (L)
164
Working Pressure (bar)
210
Working Pressure (psi)
3000
S64-3024
JIC Female Thread (F)
1 7/8-12
Hose I.D (Inches)
1 1/2
Hose I.D (mm)
38
Dash size
24
Hex A/F (S)
60
Drop mm (K)
46
Cutoff (H)
118
Length mm (L)
201
Working Pressure (bar)
185
Working Pressure (psi)
2700
S64-4032
JIC Female Thread (F)
2 1/2-12
Hose I.D (Inches)
2
Hose I.D (mm)
51
Dash size
32
Hex A/F (S)
75
Drop mm (K)
62
Cutoff (H)
157
Length mm (L)
253
Working Pressure (bar)
175
Working Pressure (psi)
2500
