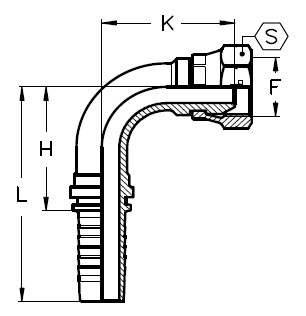

METRIC 60°
MET FEMALE 90° ELBOW
METRIC 60°
MET FEMALE 90° ELBOW
Product Data
S95-M1204
Metric Female Thread (F)
M12x1.5
Hose I.D (Inches)
1/4
Hose I.D (mm)
6.4
Dash size
04
Hex A/F (S)
17
Cutoff (H)
28
Drop mm (K)
35
S95-M1404
Metric Female Thread (F)
M14-1.5
Hose I.D (Inches)
1/4
Hose I.D (mm)
6.4
Dash size
04
Hex A/F (S)
19
Cutoff (H)
25
Drop mm (K)
28
S95-M1606
Metric Female Thread (F)
M16x1.5
Hose I.D (Inches)
3/8
Hose I.D (mm)
9.5
Dash size
06
Hex A/F (S)
22
Cutoff (H)
33
Drop mm (K)
34
S95-M1806
Metric Female Thread (F)
M18x1.5
Hose I.D (Inches)
3/8
Hose I.D (mm)
9.5
Dash size
06
Hex A/F (S)
24
Cutoff (H)
33
Drop mm (K)
34
S95-M2208
Metric Female Thread (F)
M22x1.5
Hose I.D (Inches)
1/2
Hose I.D (mm)
12.7
Dash size
08
Hex A/F (S)
27
Cutoff (H)
39
Drop mm (K)
41
S95-M2610
Metric Female Thread (F)
M26x1.5
Hose I.D (Inches)
5/8
Hose I.D (mm)
15.9
Dash size
10
Hex A/F (S)
32
Cutoff (H)
45
Drop mm (K)
48
S95-M2612
Metric Female Thread (F)
M26x1.5
Hose I.D (Inches)
3/4
Hose I.D (mm)
19
Dash size
12
Hex A/F (S)
32
Cutoff (H)
56
Drop mm (K)
58
S95-M2710
Metric Female Thread (F)
M27x1.5
Hose I.D (Inches)
5/8
Hose I.D (mm)
15.9
Dash size
10
Hex A/F (S)
32
Cutoff (H)
45
Drop mm (K)
50
S95-M3816
Metric Female Thread (F)
M38x1.5
Hose I.D (Inches)
1
Hose I.D (mm)
25.4
Dash size
16
Hex A/F (S)
46
Cutoff (H)
68
Drop mm (K)
81
