JIC

JIC FEMALE 90° ELBOW

JIC

JIC FEMALE 90° ELBOW

JIC

JIC FEMALE 90° ELBOW

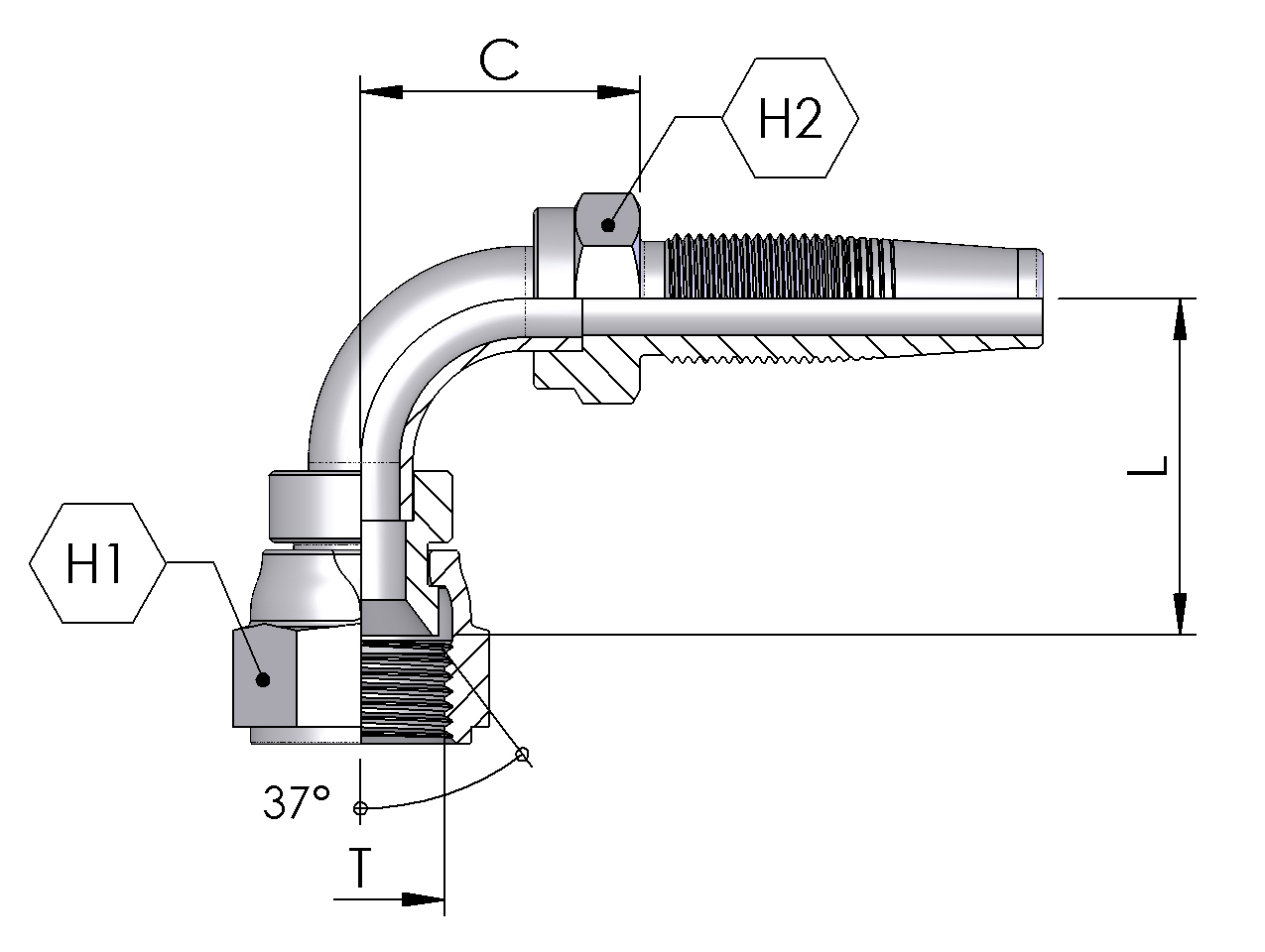

JIC 37° FLARE FEMALE SWIVEL NUT 90° ELBOW

PartNumber
T
Hose I.D (in)
Hose I.D (mm)
Dash size
H1 (mm)
L (mm)
C (mm)
F55-0704
7/16-20
1/4
6.4
04
15
27
23
F55-0904
9/16-18
1/4
6.4
04
19
29
23
F55-0906
9/16-18
3/8
9.5
06
19
34
30
F55-1206
3/4-16
3/8
9.5
06
24
35
30
F55-1208
3/4-16
1/2
12.7
08
24
39
36
F55-1408
7/8-14
1/2
12.7
08
27
45
36
F55-1410
7/8-14
5/8
15.9
10
27
50
42
F55-1712
1.1/16-12
3/4
19
12
32
55
47
F55-2116
1.5/16-12
1
25.4
16
41
68
58

Product Data

F55-0704

T

7/16-20

Hose I.D (in)

1/4

Hose I.D (mm)

6.4

Dash size

04

H1 (mm)

15

L (mm)

27

C (mm)

23

F55-0904

T

9/16-18

Hose I.D (in)

1/4

Hose I.D (mm)

6.4

Dash size

04

H1 (mm)

19

L (mm)

29

C (mm)

23

F55-0906

T

9/16-18

Hose I.D (in)

3/8

Hose I.D (mm)

9.5

Dash size

06

H1 (mm)

19

L (mm)

34

C (mm)

30

F55-1206

T

3/4-16

Hose I.D (in)

3/8

Hose I.D (mm)

9.5

Dash size

06

H1 (mm)

24

L (mm)

35

C (mm)

30

F55-1208

T

3/4-16

Hose I.D (in)

1/2

Hose I.D (mm)

12.7

Dash size

08

H1 (mm)

24

L (mm)

39

C (mm)

36

F55-1408

T

7/8-14

Hose I.D (in)

1/2

Hose I.D (mm)

12.7

Dash size

08

H1 (mm)

27

L (mm)

45

C (mm)

36

F55-1410

T

7/8-14

Hose I.D (in)

5/8

Hose I.D (mm)

15.9

Dash size

10

H1 (mm)

27

L (mm)

50

C (mm)

42

F55-1712

T

1.1/16-12

Hose I.D (in)

3/4

Hose I.D (mm)

19

Dash size

12

H1 (mm)

32

L (mm)

55

C (mm)

47

F55-2116

T

1.5/16-12

Hose I.D (in)

1

Hose I.D (mm)

25.4

Dash size

16

H1 (mm)

41

L (mm)

68

C (mm)

58
