Get the job done with the right equipment

Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.

Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.

The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.

To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.

  • Product Catalogue
  • Promotions
  • Our Agencies
  • Our Quality
  • Safety Data Sheets

EXTREMELY HIGH PRESSURE HOSE

FOUR SPIRAL WIRE HOSE

EXTREMELY HIGH PRESSURE HOSE

FOUR SPIRAL WIRE HOSE

EXTREMELY HIGH PRESSURE HOSE

FOUR SPIRAL WIRE HOSE

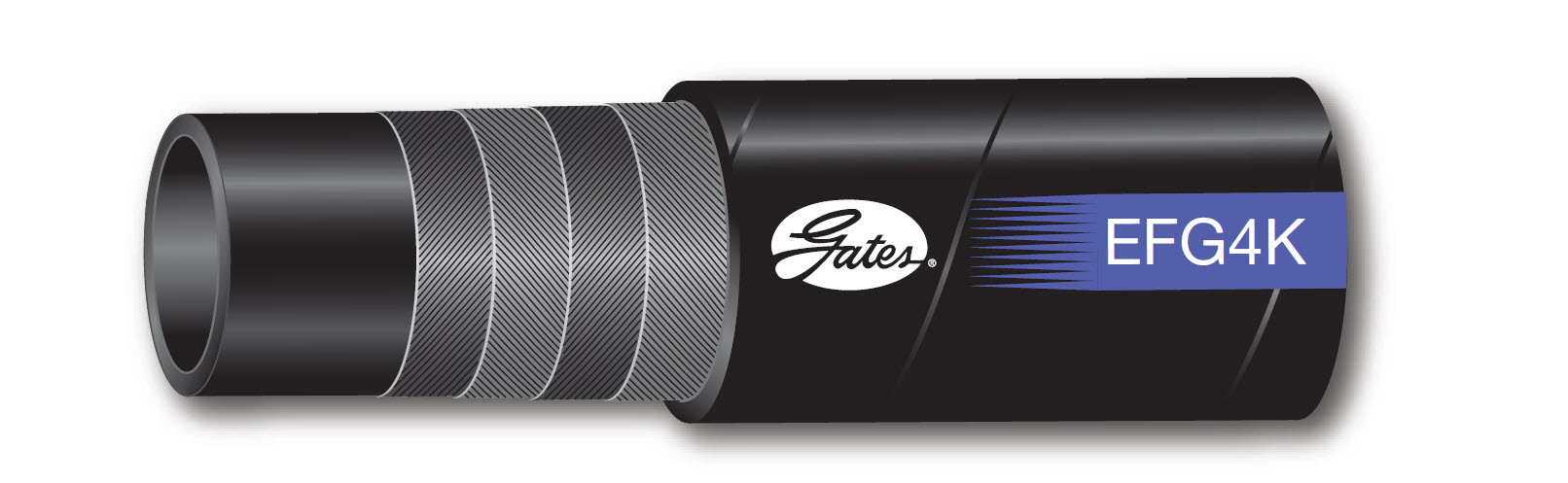

SPIRAL WIRE REINFORCED HOSE - SAE 100R12

PartNumber
Internal Size
Internal DN
Internal Diameter - inches
External Diameter - mm
Working Pressure - psi
Working pressure - bar
Min burst pressure - psi
Min burst pressure - bar
Min bend radius - mm
6EFG4K
06
10
3/8
20.5
4000
280
16000
1120
65
8EFG4K
08
12
1/2
24.0
4000
280
16000
1120
90
10EFG4K
10
16
5/8
27.6
4000
280
16000
1120
100
12EFG4K
12
19
3/4
30.7
4000
280
16000
1120
120
16EFG4K
16
25
1
38.0
4000
280
16000
1120
150
20EFG4K
20
31
1.1/4
47.0
4000
280
16000
1120
210

Product Data

6EFG4K

Internal Size

06

Internal DN

10

Internal Diameter - inches

3/8

External Diameter - mm

20.5

Working Pressure - psi

4000

Working pressure - bar

280

Min burst pressure - psi

16000

Min burst pressure - bar

1120

Min bend radius - mm

65

8EFG4K

Internal Size

08

Internal DN

12

Internal Diameter - inches

1/2

External Diameter - mm

24.0

Working Pressure - psi

4000

Working pressure - bar

280

Min burst pressure - psi

16000

Min burst pressure - bar

1120

Min bend radius - mm

90

10EFG4K

Internal Size

10

Internal DN

16

Internal Diameter - inches

5/8

External Diameter - mm

27.6

Working Pressure - psi

4000

Working pressure - bar

280

Min burst pressure - psi

16000

Min burst pressure - bar

1120

Min bend radius - mm

100

12EFG4K

Internal Size

12

Internal DN

19

Internal Diameter - inches

3/4

External Diameter - mm

30.7

Working Pressure - psi

4000

Working pressure - bar

280

Min burst pressure - psi

16000

Min burst pressure - bar

1120

Min bend radius - mm

120

16EFG4K

Internal Size

16

Internal DN

25

Internal Diameter - inches

1

External Diameter - mm

38.0

Working Pressure - psi

4000

Working pressure - bar

280

Min burst pressure - psi

16000

Min burst pressure - bar

1120

Min bend radius - mm

150

20EFG4K

Internal Size

20

Internal DN

31

Internal Diameter - inches

1.1/4

External Diameter - mm

47.0

Working Pressure - psi

4000

Working pressure - bar

280

Min burst pressure - psi

16000

Min burst pressure - bar

1120

Min bend radius - mm

210

INTRODUCING NEW ENDURO SPIRAL HOSE

ENDURO spiral is an extremely flexible slim profile hose featuring our very high wear and abrasion resistant SuperTuff (ST) MSHA cover for increased protection against abrasion in severe operating environments.

VIEW ENDURO BROCHURE
