Get the job done with the right equipment

Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.

Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.

The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.

To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.

EXTREMELY HIGH PRESSURE HOSE

FOUR/SIX SPIRAL WIRE HOSE

EXTREMELY HIGH PRESSURE HOSE

FOUR/SIX SPIRAL WIRE HOSE

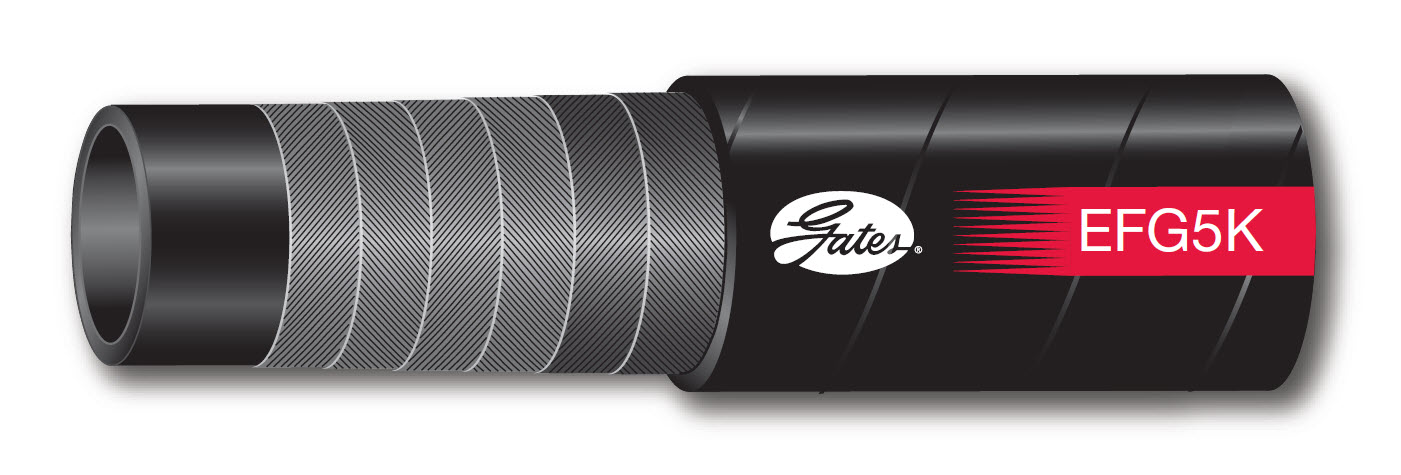

EFG5K

FOUR/SIX SPIRAL WIRE HOSE

SPIRAL WIRE REINFORCED HOSE - SAE 100R13

  • Due to manufacturing tolerances, external dimension is an average.
  • Recommended for: Extremely high pressure and high impulse hydraulic applications.
  • Internal tube: -6 to -20
  • Nitrile based: -24, -32: Neoprene based.
  • Reinforcement: Four (six for -20, to -32) alternating layers of spiralled, high tensile steel wire.
  • External cover: Neoprene based, MSHA approved.
  • Temperature range: -40°C to +121°C
  • Standards: EN 856 R13. SAE 100R13. Meets or exceeds performance requirements of EN 856 4SP (-10, -12) and EN 856 4SH (-20).
  • Characteristics: Extremely flexible. Compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols, vegetable oils and petroleum-based fluids in sizes -06 to -20 (not -24 or -32)

SPIRAL WIRE REINFORCED HOSE - SAE 100R13

PartNumber
Internal Size
Internal DN
Internal Diameter - inches
External Diameter - mm
Working Pressure - psi
Working pressure - bar
Min burst pressure - psi
Min burst pressure - bar
Min bend radius - mm
8EFG5K
08
12
1/2
24.0
5000
350
20000
1400
90
12EFG5K
12
19
3/4
31.4
5000
350
24000
1400
120
16EFG5K
16
25
1
38.7
5000
350
24000
1400
150
20EFG5K
20
31
1.1/4
50
5000
350
24000
1400
210
24EFG5K
24
38
1.1/2
57.4
5000
350
24000
1400
250
32EFG5K
32
51
2
71
5000
350
24000
1400
635

Product Data

8EFG5K

Internal Size

08

Internal DN

12

Internal Diameter - inches

1/2

External Diameter - mm

24.0

Working Pressure - psi

5000

Working pressure - bar

350

Min burst pressure - psi

20000

Min burst pressure - bar

1400

Min bend radius - mm

90

12EFG5K

Internal Size

12

Internal DN

19

Internal Diameter - inches

3/4

External Diameter - mm

31.4

Working Pressure - psi

5000

Working pressure - bar

350

Min burst pressure - psi

24000

Min burst pressure - bar

1400

Min bend radius - mm

120

16EFG5K

Internal Size

16

Internal DN

25

Internal Diameter - inches

1

External Diameter - mm

38.7

Working Pressure - psi

5000

Working pressure - bar

350

Min burst pressure - psi

24000

Min burst pressure - bar

1400

Min bend radius - mm

150

20EFG5K

Internal Size

20

Internal DN

31

Internal Diameter - inches

1.1/4

External Diameter - mm

50

Working Pressure - psi

5000

Working pressure - bar

350

Min burst pressure - psi

24000

Min burst pressure - bar

1400

Min bend radius - mm

210

24EFG5K

Internal Size

24

Internal DN

38

Internal Diameter - inches

1.1/2

External Diameter - mm

57.4

Working Pressure - psi

5000

Working pressure - bar

350

Min burst pressure - psi

24000

Min burst pressure - bar

1400

Min bend radius - mm

250

32EFG5K

Internal Size

32

Internal DN

51

Internal Diameter - inches

2

External Diameter - mm

71

Working Pressure - psi

5000

Working pressure - bar

350

Min burst pressure - psi

24000

Min burst pressure - bar

1400

Min bend radius - mm

635

INTRODUCING NEW ENDURO SPIRAL HOSE

ENDURO spiral is an extremely flexible slim profile hose featuring our very high wear and abrasion resistant SuperTuff (ST) MSHA cover for increased protection against abrasion in severe operating environments.

VIEW ENDURO BROCHURE
