Get the job done with the right equipment

Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.

Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.

The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.

To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.

  • Product Catalogue
  • Promotions
  • Our Agencies
  • Our Quality
  • Safety Data Sheets

HIGH PRESSURE HOSE

TWO WIRE BRAID JACK HOSE

HIGH PRESSURE HOSE

TWO WIRE BRAID JACK HOSE

HIGH PRESSURE HOSE

TWO WIRE BRAID JACK HOSE

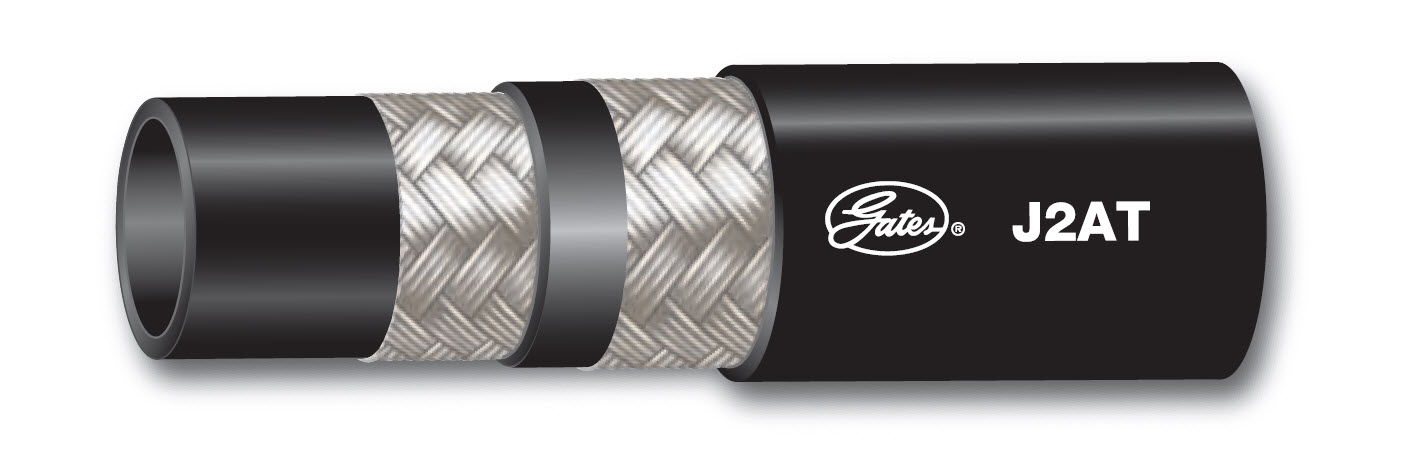

BRAIDED WIRE REINFORCED JACK HOSE

PartNumber
Internal Size
Internal DN
Internal Diameter - inches
External Diameter - mm
Working Pressure - psi
Working pressure - bar
Min burst pressure - psi
Min burst pressure - bar
Min bend radius - mm
4J2AT
04
6
1/4
15.0
10000
690
20000
1380
100
6J2AT
06
10
3/8
18.8
10000
690
20000
1380
130

Product Data

4J2AT

Internal Size

04

Internal DN

6

Internal Diameter - inches

1/4

External Diameter - mm

15.0

Working Pressure - psi

10000

Working pressure - bar

690

Min burst pressure - psi

20000

Min burst pressure - bar

1380

Min bend radius - mm

100

6J2AT

Internal Size

06

Internal DN

10

Internal Diameter - inches

3/8

External Diameter - mm

18.8

Working Pressure - psi

10000

Working pressure - bar

690

Min burst pressure - psi

20000

Min burst pressure - bar

1380

Min bend radius - mm

130

INTRODUCING NEW ENDURO SPIRAL HOSE

ENDURO spiral is an extremely flexible slim profile hose featuring our very high wear and abrasion resistant SuperTuff (ST) MSHA cover for increased protection against abrasion in severe operating environments.

VIEW ENDURO BROCHURE
