Get the job done with the right equipment

Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.

Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.

The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.

To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.

LPG HOSE

LPG SERVICE HOSE

LPG HOSE

LPG SERVICE HOSE

LPG

LPG SERVICE HOSE

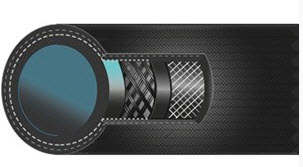

WIRE AND FIBRE REINFORCED HOSE FOR LPG

  • Due to manufacturing tolerances, the external dimension is an average.
  • Recommended for: LPG service line for mobile plant, particularly forklift trucks.
  • Internal tube: Synthetic rubber, LP Gas, oil and low temp resistant.
  • Reinforcement: One textile and one stainless wire braid.
  • External cover: Textile braid.
  • Standards: Meets AS/NZ 1869 Class D, AGA Certificate no. AGA5318

WIRE AND FIBRE REINFORCED HOSE FOR LPG

PartNumber
Internal Size
Internal Diameter - mm
Internal Diameter - inches
External Diameter - mm
Working Pressure - psi
Working pressure - bar
Min burst pressure - psi
Min burst pressure - bar
Min bend radius - mm
5LPG
05
8
5/16
17.1
350
24
1400
96

Product Data

5LPG

Internal Size

05

Internal Diameter - mm

8

Internal Diameter - inches

5/16

External Diameter - mm

17.1

Working Pressure - psi

350

Working pressure - bar

24

Min burst pressure - psi

1400

Min burst pressure - bar

96

Min bend radius - mm

INTRODUCING NEW ENDURO SPIRAL HOSE

ENDURO spiral is an extremely flexible slim profile hose featuring our very high wear and abrasion resistant SuperTuff (ST) MSHA cover for increased protection against abrasion in severe operating environments.

VIEW ENDURO BROCHURE
