MEDIUM PRESSURE HOSE

HIGH TEMP. ONE WIRE BRAID HOSE

MEDIUM PRESSURE HOSE

HIGH TEMP. ONE WIRE BRAID HOSE

G1H

HIGH TEMP. ONE WIRE BRAID HOSE

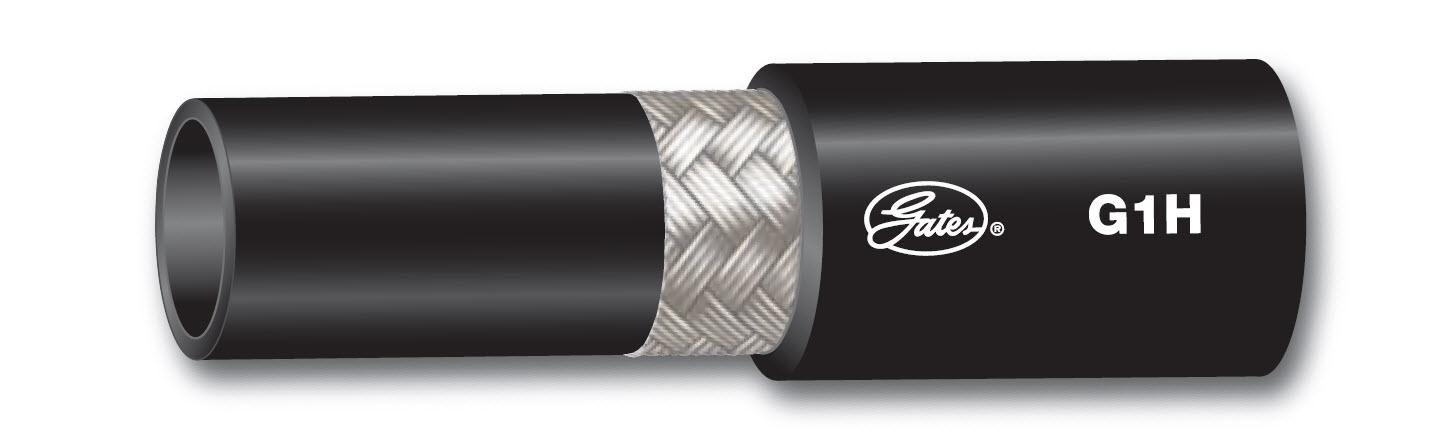

BRAIDED WIRE REINFORCED HOSE - SAE 100R1 Type AT

  • Due to manufacturing tolerances, the external dimension is an average.
  • Recommended for: High temperature, medium pressure hydraulic applications.
  • Internal tube: Nitrile based.
  • Reinforcement: One braid of high tensile steel wire.
  • External cover: CSM based. MSHA approved.
  • Temperature range: -40°C to +135°C constant and +150°C intermittent.
  • Standards: SAE 100R1AT. SAE 100R1S. EN 853 1SN. ISO 1436.

BRAIDED WIRE REINFORCED HOSE - SAE 100R1 Type AT

PartNumber
Internal Size
Internal DN
Internal Diameter - inches
External Diameter - mm
Working Pressure - psi
Working pressure - bar
Min burst pressure - psi
Min burst pressure - bar
Min bend radius - mm
4G1H
4
6
3/8
13.5
2750
190
11000
758
102
6G1H
6
10
5/8
17.5
2250
155
9000
620
127
8G1H
8
12
3/4
20.3
2000
138
8000
552
178
10G1H
10
16
5/8
23.9
1500
104
6000
414
200
12G1H
12
19
3/4
27.9
1250
86
5000
345
240
16G1H
16
25
1
35.8
1000
69
4000
276
300
20G1H
20
31
1.1/4
43.4
925
63
3700
252
420
24G1H
24
38
1.1/2
49.8
725
50
2900
200
500

Product Data

4G1H

Internal Size

4

Internal DN

6

Internal Diameter - inches

3/8

External Diameter - mm

13.5

Working Pressure - psi

2750

Working pressure - bar

190

Min burst pressure - psi

11000

Min burst pressure - bar

758

Min bend radius - mm

102

6G1H

Internal Size

6

Internal DN

10

Internal Diameter - inches

5/8

External Diameter - mm

17.5

Working Pressure - psi

2250

Working pressure - bar

155

Min burst pressure - psi

9000

Min burst pressure - bar

620

Min bend radius - mm

127

8G1H

Internal Size

8

Internal DN

12

Internal Diameter - inches

3/4

External Diameter - mm

20.3

Working Pressure - psi

2000

Working pressure - bar

138

Min burst pressure - psi

8000

Min burst pressure - bar

552

Min bend radius - mm

178

10G1H

Internal Size

10

Internal DN

16

Internal Diameter - inches

5/8

External Diameter - mm

23.9

Working Pressure - psi

1500

Working pressure - bar

104

Min burst pressure - psi

6000

Min burst pressure - bar

414

Min bend radius - mm

200

12G1H

Internal Size

12

Internal DN

19

Internal Diameter - inches

3/4

External Diameter - mm

27.9

Working Pressure - psi

1250

Working pressure - bar

86

Min burst pressure - psi

5000

Min burst pressure - bar

345

Min bend radius - mm

240

16G1H

Internal Size

16

Internal DN

25

Internal Diameter - inches

1

External Diameter - mm

35.8

Working Pressure - psi

1000

Working pressure - bar

69

Min burst pressure - psi

4000

Min burst pressure - bar

276

Min bend radius - mm

300

20G1H

Internal Size

20

Internal DN

31

Internal Diameter - inches

1.1/4

External Diameter - mm

43.4

Working Pressure - psi

925

Working pressure - bar

63

Min burst pressure - psi

3700

Min burst pressure - bar

252

Min bend radius - mm

420

24G1H

Internal Size

24

Internal DN

38

Internal Diameter - inches

1.1/2

External Diameter - mm

49.8

Working Pressure - psi

725

Working pressure - bar

50

Min burst pressure - psi

2900

Min burst pressure - bar

200

Min bend radius - mm

500
