Get the job done with the right equipment
Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.
Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.
The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.
To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.
THERMOPLASTIC HOSE
TWINLINE THERMOPLASTIC HOSE
THERMOPLASTIC HOSE
TWINLINE THERMOPLASTIC HOSE

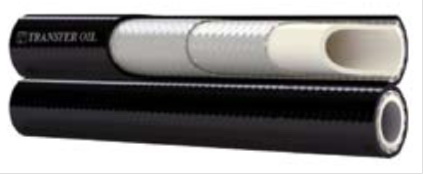

R18TNEO
TWINLINE THERMOPLASTIC HOSE
- Due to manufacturing tolerances, the external dimension is an average.
- Recommended for: Medium pressure hydraulic applications exposed to low temperatures, or cyclic and quick temperature changes, such as cool-stores. Ideal for forklift applications
- Internal tube: Polyester elastomer.
- Reinforcement: Two braids of synthetic fiber.
- External cover: Special polyurethane cover, black, non-pinpricked, white ink-jet branding.
- Temperature range: -40 °C to +100 °C, limited to +70 °C for air and water-based fluids.
- Standards: Meets or exceeds SAE 10018.
- Characteristics: R18 is a medium pressure hose suitable for petroleum or synthetic based hydraulic fluids in hydraulic systems of forklifts. Optimum bonding characteristics and special cover also make it an ideal for equipment operating in cold environments, while maintaining a high level of flexibility.
BRAIDED FIBRE REINFORCED HOSE - SAE 100R18
Product Data
4R18TNEO
Internal Size
04
Internal DN
6
Internal Diameter - inches
1/4
External Diameter - mm
11.8
Working Pressure - psi
3000
Working pressure - bar
210
Min burst pressure - psi
12000
Min burst pressure - bar
840
Min bend radius - mm
35
6R18TNEO
Internal Size
06
Internal DN
10
Internal Diameter - inches
3/8
External Diameter - mm
16.5
Working Pressure - psi
3000
Working pressure - bar
210
Min burst pressure - psi
12000
Min burst pressure - bar
840
Min bend radius - mm
45
INTRODUCING NEW ENDURO SPIRAL HOSE
ENDURO spiral is an extremely flexible slim profile hose featuring our very high wear and abrasion resistant SuperTuff (ST) MSHA cover for increased protection against abrasion in severe operating environments.
