R7

FIBRE BRAID THERMOPLASTIC HOSE

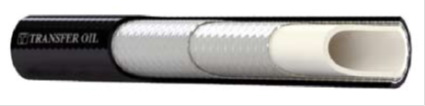

BRAIDED FIBRE REINFORCED HOSE - SAE 100R7

  • Due to manufacturing tolerances, the external dimension is an average.
  • Recommended for: Medium pressure hydraulic applications requiring increased resistance to abrasion.
  • Internal tube: Polyester elastomer.
  • Reinforcement: One or two braids of synthetic fiber. External cover: Abrasion resistant polyurethane, black, pinpricked, white ink-jet branding.
  • Temperature range: -40 °C to +100 °C, limited to +70 °C for air and water-based fluids.
  • Standards: Meets or exceeds SAE 100R7.
  • Characteristics: R7 is a medium pressure hose for use with petroleum, synthetic or water based hydraulic fluids. Suitable for general fluid power transmission like earthmoving, agricultural machinery and forklift trucks. Also suitable for many industrial gases (check for compatibility).
  • Not suitable for use on forklift mast application below ambient temperatures.

BRAIDED FIBRE REINFORCED HOSE - SAE 100R7

PartNumber
Internal Size
Internal DN
Internal Diameter - inches
External Diameter - mm
Working Pressure - psi
Working pressure - bar
Min burst pressure - psi
Min burst pressure - bar
Min bend radius - mm
3R7
03
5
3/16
9.6
3000
210
12000
840
25
4R7
04
6
1/4
12.2
3000
210
12000
840
35
5R7
05
8
5/16
14.3
2700
190
10800
760
45
6R7
06
10
3/8
16.0
2300
160
9200
640
55
8R7
08
12
1/2
20.3
2000
140
8000
560
75
12R7
12
19
3/4
27.1
1300
90
5200
360
140

Product Data

3R7

Internal Size

03

Internal DN

5

Internal Diameter - inches

3/16

External Diameter - mm

9.6

Working Pressure - psi

3000

Working pressure - bar

210

Min burst pressure - psi

12000

Min burst pressure - bar

840

Min bend radius - mm

25

4R7

Internal Size

04

Internal DN

6

Internal Diameter - inches

1/4

External Diameter - mm

12.2

Working Pressure - psi

3000

Working pressure - bar

210

Min burst pressure - psi

12000

Min burst pressure - bar

840

Min bend radius - mm

35

5R7

Internal Size

05

Internal DN

8

Internal Diameter - inches

5/16

External Diameter - mm

14.3

Working Pressure - psi

2700

Working pressure - bar

190

Min burst pressure - psi

10800

Min burst pressure - bar

760

Min bend radius - mm

45

6R7

Internal Size

06

Internal DN

10

Internal Diameter - inches

3/8

External Diameter - mm

16.0

Working Pressure - psi

2300

Working pressure - bar

160

Min burst pressure - psi

9200

Min burst pressure - bar

640

Min bend radius - mm

55

8R7

Internal Size

08

Internal DN

12

Internal Diameter - inches

1/2

External Diameter - mm

20.3

Working Pressure - psi

2000

Working pressure - bar

140

Min burst pressure - psi

8000

Min burst pressure - bar

560

Min bend radius - mm

75

12R7

Internal Size

12

Internal DN

19

Internal Diameter - inches

3/4

External Diameter - mm

27.1

Working Pressure - psi

1300

Working pressure - bar

90

Min burst pressure - psi

5200

Min burst pressure - bar

360

Min bend radius - mm

140
