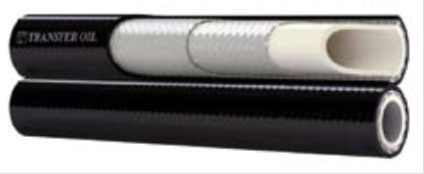

R8XT

TWINLINE THERMOPLASTIC HOSE

BRAIDED FIBRE REINFORCED SLIMLINE HOSE - SAE 100R8

  • Due to manufacturing tolerances, the external dimension is an average.
  • Recommended for: High pressure hydraulic applications requiring increased resistance to abrasion.
  • Internal tube: Polyester elastomer.
  • Reinforcement: One or two braids of aramid fiber.
  • External cover: Abrasion resisant polyurethane, black, pinpricked, white ink-jet branding.
  • Temperature range: -40 °C to +100 °C, limited to +70 °C for air and water-based fluids.
  • Standards: Meets or exceeds SAE 100R8.
  • Characteristics: R8X is a compact high pressure hose for use with petroleum, synthetic or water based hydraulic fluids. Suitable for general fluid power transmission like earthmoving, agricultural machinery and forklift trucks. Also suitable for many industrial gases (check for compatiblity).
  • Please note customised multi-line combinations of different hose types or diameters can also be produced to customer requirements.

BRAIDED FIBRE REINFORCED SLIMLINE HOSE - SAE 100R8

PartNumber
Internal Size
Internal DN
Internal Diameter - inches
External Diameter - mm
Working Pressure - psi
Working pressure - bar
Min burst pressure - psi
Min burst pressure - bar
Min bend radius - mm
3R8XT
03
5
3/16
8.9
5000
350
20000
1400
30
4R8XT
04
6
1/4
11.5
5000
350
20000
1400
50
6R8XT
06
10
3/8
15.5
4000
280
16000
1120
60
8R8XT
08
12
1/2
19.9
3500
245
14000
980
80

Product Data

3R8XT

Internal Size

03

Internal DN

5

Internal Diameter - inches

3/16

External Diameter - mm

8.9

Working Pressure - psi

5000

Working pressure - bar

350

Min burst pressure - psi

20000

Min burst pressure - bar

1400

Min bend radius - mm

30

4R8XT

Internal Size

04

Internal DN

6

Internal Diameter - inches

1/4

External Diameter - mm

11.5

Working Pressure - psi

5000

Working pressure - bar

350

Min burst pressure - psi

20000

Min burst pressure - bar

1400

Min bend radius - mm

50

6R8XT

Internal Size

06

Internal DN

10

Internal Diameter - inches

3/8

External Diameter - mm

15.5

Working Pressure - psi

4000

Working pressure - bar

280

Min burst pressure - psi

16000

Min burst pressure - bar

1120

Min bend radius - mm

60

8R8XT

Internal Size

08

Internal DN

12

Internal Diameter - inches

1/2

External Diameter - mm

19.9

Working Pressure - psi

3500

Working pressure - bar

245

Min burst pressure - psi

14000

Min burst pressure - bar

980

Min bend radius - mm

80
