Get the job done with the right equipment

Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.

Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.

The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.

To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.

DUCTING

ELASTOFLEX

DUCTING

ELASTOFLEX

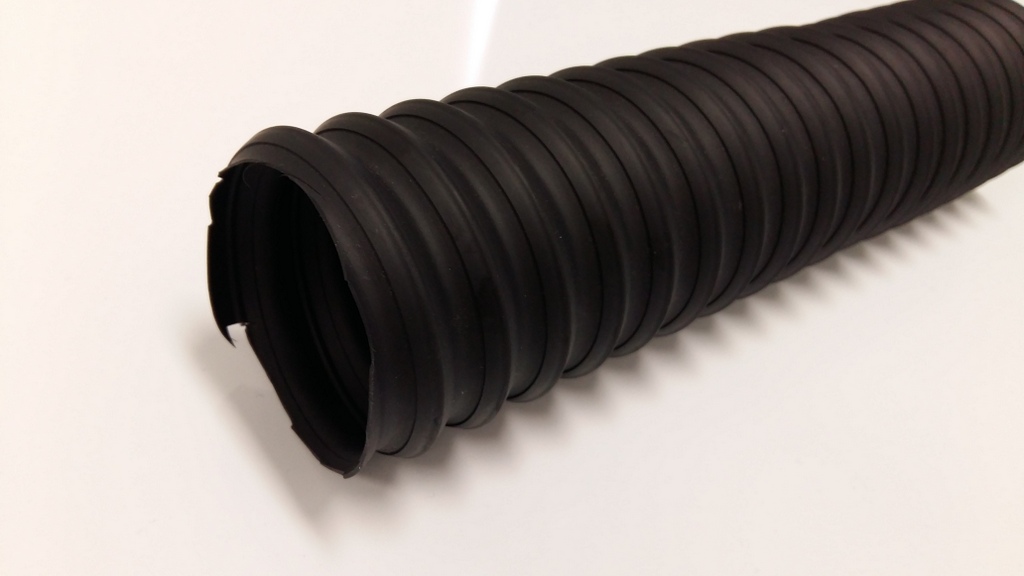

DUTAS10

ELASTOFLEX

SANTOPRENE TPE

  • Temperature: 0°C to +125°C
  • Material: Santoprene TPE
  • Colour: Black
  • Standard Length: 10 metres and up to 15 metres on request.
  • Properties: Extremely flexible, very light weight, not suitable in abrasive situations.
  • Applications: Especially suitable for suction of gases, fumes and hot air transfer. UV and ozone resistance. Not for automotive use.

SANTOPRENE TPE

PartNumber
Hose I.D (mm)
Min Bend Radius (mm)
Vacuum (bar)
WP (bar)
Weight kg/mtr
Wall Thickness (mm)
DUTAS10-032
32
48
.32
.32
.15
.55
DUTAS10-038
38
58
.31
.28
.17
.55
DUTAS10-040
40
60
.28
.26
.19
.55
DUTAS10-057
57
85
.18
.21
.31
.55
DUTAS10-076
76
110
.12
.18
.40
.60
DUTAS10-102
102
150
.085
.15
.50
.60
DUTAS10-127
127
190
.060
.095
.65
.60
DUTAS10-152
152
225
.050
.090
.66
.60

Product Data

DUTAS10-032

Hose I.D (mm)

32

Min Bend Radius (mm)

48

Vacuum (bar)

.32

WP (bar)

.32

Weight kg/mtr

.15

Wall Thickness (mm)

.55

DUTAS10-038

Hose I.D (mm)

38

Min Bend Radius (mm)

58

Vacuum (bar)

.31

WP (bar)

.28

Weight kg/mtr

.17

Wall Thickness (mm)

.55

DUTAS10-040

Hose I.D (mm)

40

Min Bend Radius (mm)

60

Vacuum (bar)

.28

WP (bar)

.26

Weight kg/mtr

.19

Wall Thickness (mm)

.55

DUTAS10-057

Hose I.D (mm)

57

Min Bend Radius (mm)

85

Vacuum (bar)

.18

WP (bar)

.21

Weight kg/mtr

.31

Wall Thickness (mm)

.55

DUTAS10-076

Hose I.D (mm)

76

Min Bend Radius (mm)

110

Vacuum (bar)

.12

WP (bar)

.18

Weight kg/mtr

.40

Wall Thickness (mm)

.60

DUTAS10-102

Hose I.D (mm)

102

Min Bend Radius (mm)

150

Vacuum (bar)

.085

WP (bar)

.15

Weight kg/mtr

.50

Wall Thickness (mm)

.60

DUTAS10-127

Hose I.D (mm)

127

Min Bend Radius (mm)

190

Vacuum (bar)

.060

WP (bar)

.095

Weight kg/mtr

.65

Wall Thickness (mm)

.60

DUTAS10-152

Hose I.D (mm)

152

Min Bend Radius (mm)

225

Vacuum (bar)

.050

WP (bar)

.090

Weight kg/mtr

.66

Wall Thickness (mm)

.60

INTRODUCING NEW ENDURO SPIRAL HOSE

ENDURO spiral is an extremely flexible slim profile hose featuring our very high wear and abrasion resistant SuperTuff (ST) MSHA cover for increased protection against abrasion in severe operating environments.

VIEW ENDURO BROCHURE
