Get the job done with the right equipment

Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.

Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.

The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.

To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.

DUCTING

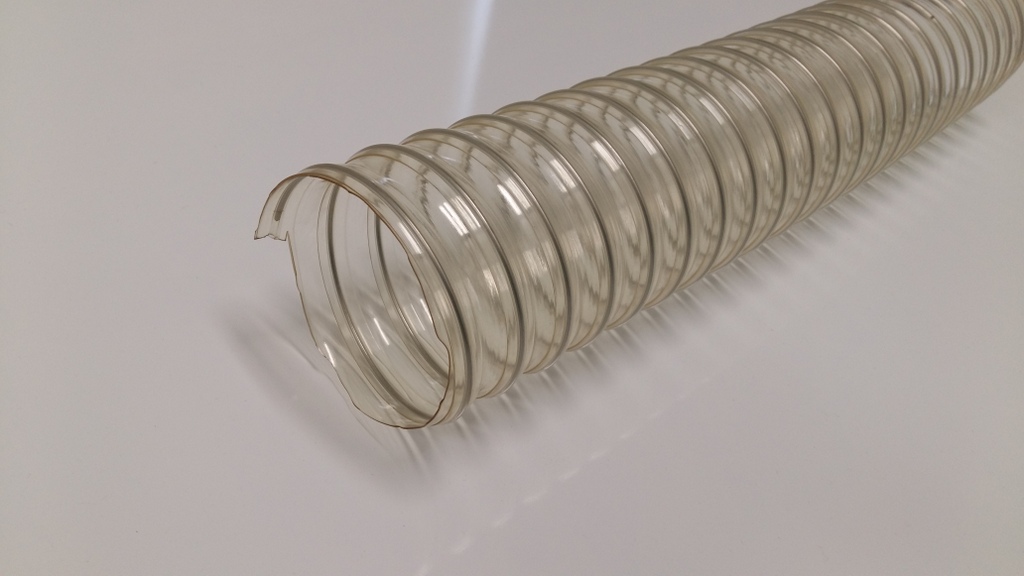

URAFLEX STANDARD

DUCTING

URAFLEX STANDARD

DUUFS

URAFLEX STANDARD

ESTER-POLYURETHANE

  • Temperature: -30°C to +90°C
  • Material: Ester-polyurethane
  • Colour: Transparent
  • Standard Length: 10 metres and up to 15 metres on request.
  • Properties: Tight bend radius, extremely flexible, very light weight, high mechanical strength, highly compressible, good mineral oil resistance.
  • Applications: Especially suitable for abrasive dust, powders, seed drills, fibres and sawdust. Not suitable in wet humid or moist conditions.

ESTER-POLYURETHANE

PartNumber
Hose I.D (mm)
Min Bend Radius (mm)
Vacuum (bar)
WP (bar)
Weight kg/mtr
Wall Thickness (mm)
DUUFS-038
38
42
.31
.55
.17
.38
DUUFS-040
40
44
.28
.50
.19
.38
DUUFS-051
51
56
.22
.40
.29
.38

Product Data

DUUFS-038

Hose I.D (mm)

38

Min Bend Radius (mm)

42

Vacuum (bar)

.31

WP (bar)

.55

Weight kg/mtr

.17

Wall Thickness (mm)

.38

DUUFS-040

Hose I.D (mm)

40

Min Bend Radius (mm)

44

Vacuum (bar)

.28

WP (bar)

.50

Weight kg/mtr

.19

Wall Thickness (mm)

.38

DUUFS-051

Hose I.D (mm)

51

Min Bend Radius (mm)

56

Vacuum (bar)

.22

WP (bar)

.40

Weight kg/mtr

.29

Wall Thickness (mm)

.38

INTRODUCING NEW ENDURO SPIRAL HOSE

ENDURO spiral is an extremely flexible slim profile hose featuring our very high wear and abrasion resistant SuperTuff (ST) MSHA cover for increased protection against abrasion in severe operating environments.

VIEW ENDURO BROCHURE
