Get the job done with the right equipment

Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.

Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.

The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.

To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.

  • Product Catalogue
  • Promotions
  • Our Agencies
  • Our Quality
  • Safety Data Sheets

SAE

SAE FEMALE STRAIGHT

SAE

SAE FEMALE STRAIGHT

SAE

SAE FEMALE STRAIGHT

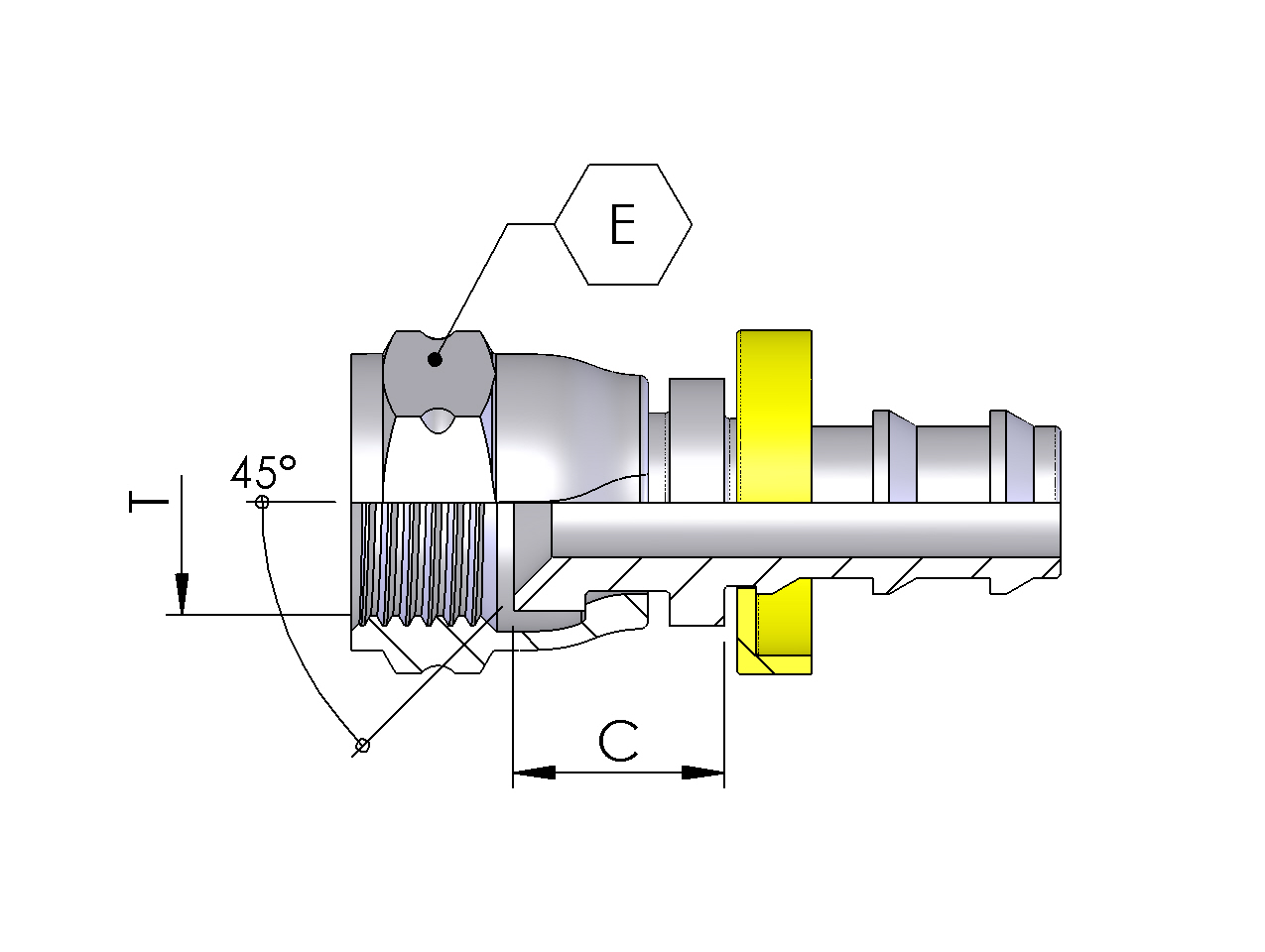

SAE 45° FLARE FEMALE SWIVEL NUT STRAIGHT

PartNumber
SAE Female Thread (T)
Hose I.D inches
Hose I.D (mm)
Dash size
Hex A/F (E)
Cutoff - C
P03-0704
7/16 - 20
1/4
6.4
04
14
11
P03-0804
1/2 - 20
1/4
6.4
04
16
12
P03-1004
5/8 - 18
1/4
6.4
04
19
13
P03-1006
5/8 - 18
3/8
9.5
06
19
13
P03-1206
3/4 - 16
1/2
12.7
08
24
16
P03-1208
3/4 - 16
1/2
12.7
08
24
17
P03-1408
7/8 - 14
1/2
12.7
08
27
17
P03-1710
1.1/16 - 14
5/8
15.9
10
32
17
P03-1712
1.1/16 - 14
3/4
19
12
32
17

Product Data

P03-0704

SAE Female Thread (T)

7/16 - 20

Hose I.D inches

1/4

Hose I.D (mm)

6.4

Dash size

04

Hex A/F (E)

14

Cutoff - C

11

P03-0804

SAE Female Thread (T)

1/2 - 20

Hose I.D inches

1/4

Hose I.D (mm)

6.4

Dash size

04

Hex A/F (E)

16

Cutoff - C

12

P03-1004

SAE Female Thread (T)

5/8 - 18

Hose I.D inches

1/4

Hose I.D (mm)

6.4

Dash size

04

Hex A/F (E)

19

Cutoff - C

13

P03-1006

SAE Female Thread (T)

5/8 - 18

Hose I.D inches

3/8

Hose I.D (mm)

9.5

Dash size

06

Hex A/F (E)

19

Cutoff - C

13

P03-1206

SAE Female Thread (T)

3/4 - 16

Hose I.D inches

1/2

Hose I.D (mm)

12.7

Dash size

08

Hex A/F (E)

24

Cutoff - C

16

P03-1208

SAE Female Thread (T)

3/4 - 16

Hose I.D inches

1/2

Hose I.D (mm)

12.7

Dash size

08

Hex A/F (E)

24

Cutoff - C

17

P03-1408

SAE Female Thread (T)

7/8 - 14

Hose I.D inches

1/2

Hose I.D (mm)

12.7

Dash size

08

Hex A/F (E)

27

Cutoff - C

17

P03-1710

SAE Female Thread (T)

1.1/16 - 14

Hose I.D inches

5/8

Hose I.D (mm)

15.9

Dash size

10

Hex A/F (E)

32

Cutoff - C

17

P03-1712

SAE Female Thread (T)

1.1/16 - 14

Hose I.D inches

3/4

Hose I.D (mm)

19

Dash size

12

Hex A/F (E)

32

Cutoff - C

17

INTRODUCING NEW ENDURO SPIRAL HOSE

ENDURO spiral is an extremely flexible slim profile hose featuring our very high wear and abrasion resistant SuperTuff (ST) MSHA cover for increased protection against abrasion in severe operating environments.

VIEW ENDURO BROCHURE
