Get the job done with the right equipment

Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.

Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.

The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.

To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.

AGRICULTURAL SERIES

HYDRAULIC BRAKE COUPLINGS

AGRICULTURAL SERIES

HYDRAULIC BRAKE COUPLINGS

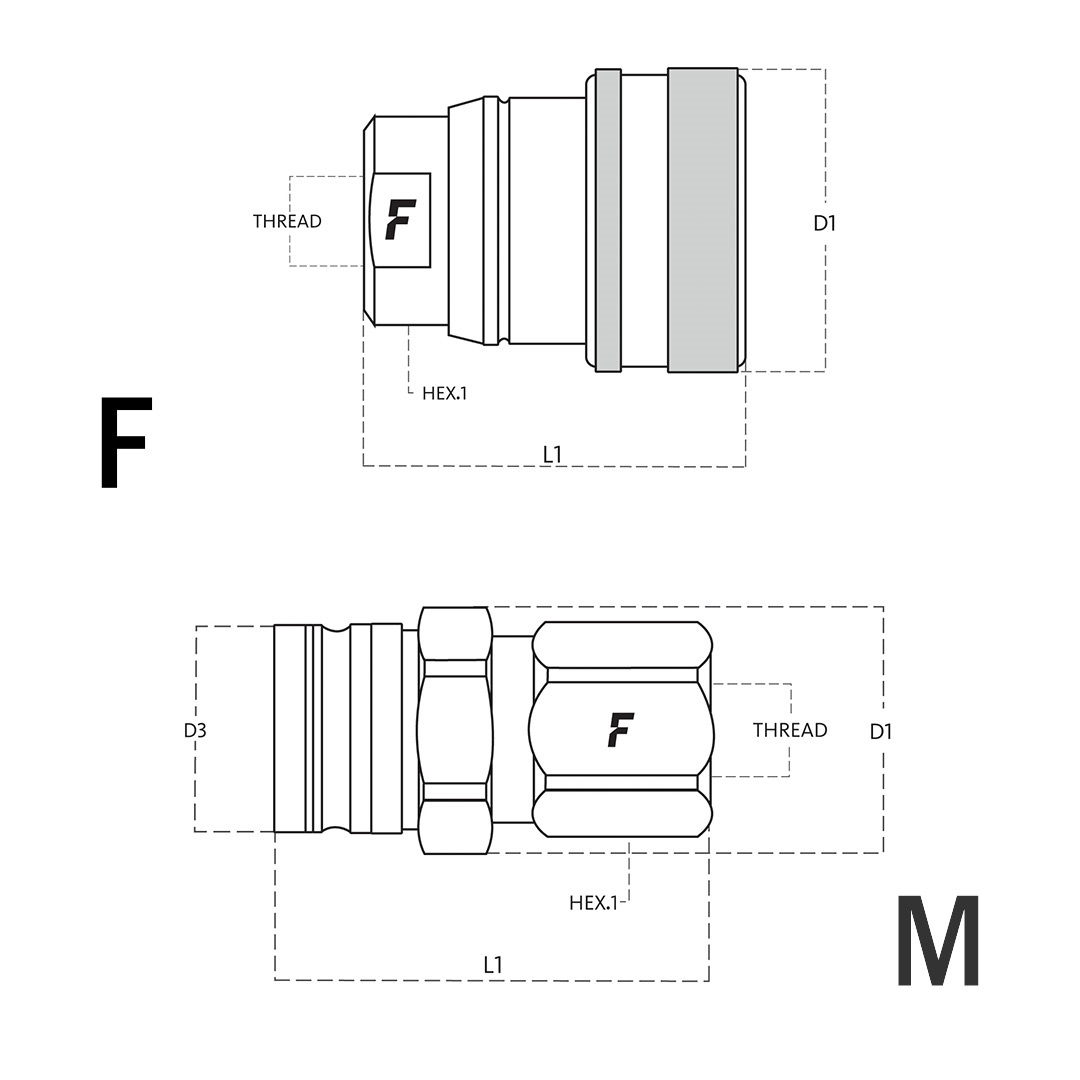

QVF

HYDRAULIC BRAKE COUPLINGS

INTERCHANGE ACCORDING TO ISO 5676

  • Recommended for: Agricultural hydraulic brake systems.
  • QVF series are only available in base size 06 (3/8).
  • Please enquire for alternative thread forms.
  • Connection/Disconnection: Without pressure.

INTERCHANGE ACCORDING TO ISO 5676

PartNumber
Base Size
Threadform
Thread size
Coupling Length - L1
Coupling O.D - D1
Hex Size A/F (Hex 1)
QVF-F06X
06
BSPPF socket
3/8-19
55
44
27
QVF-M0618MK
06
Light DIN male bulkhead
M18-1.5
53
35
32
29

Product Data

QVF-F06X

Base Size

06

Threadform

BSPPF socket

Thread size

3/8-19

Coupling Length - L1

55

Coupling O.D - D1

44

Hex Size A/F (Hex 1)

27

QVF-M0618MK

Base Size

06

Threadform

Light DIN male bulkhead

Thread size

M18-1.5

Coupling Length - L1

53

Coupling O.D - D1

35

Hex Size A/F (Hex 1)

32

Inner Coupling O.D - D3

29

INTRODUCING NEW ENDURO SPIRAL HOSE

ENDURO spiral is an extremely flexible slim profile hose featuring our very high wear and abrasion resistant SuperTuff (ST) MSHA cover for increased protection against abrasion in severe operating environments.

VIEW ENDURO BROCHURE
