Get the job done with the right equipment
Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.
Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.
The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.
To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.
DIAGNOSTIC SERIES

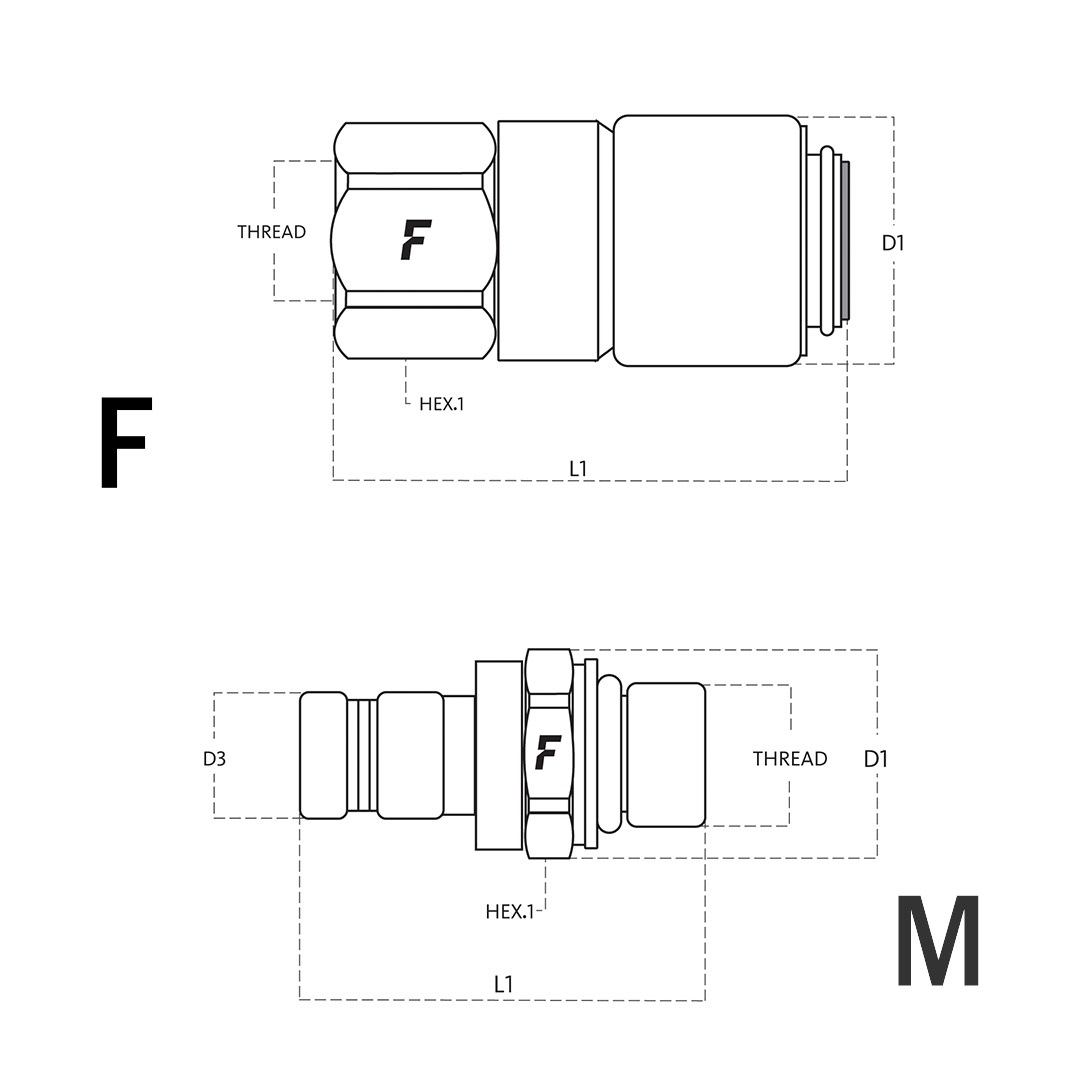

FLAT FACE DIAGNOSTIC COUPLINGS
DIAGNOSTIC SERIES
FLAT FACE DIAGNOSTIC COUPLINGS
Product Data
QDF-F0402AC
Base Size
04
Threadform
NPTF socket
Thread Size
1/8-27
Coupling Length - L1
42
Hex Size A/F (Hex 1)
21
QDF-F04AC
Base Size
04
Threadform
NPTF socket
Thread Size
1/4-18
Coupling Length - L1
50
Hex Size A/F (Hex 1)
21
QDF-M0402AC
Base Size
04
Threadform
NPTF socket
Thread Size
1/8-27
Coupling Length - L1
36
Hex Size A/F (Hex 1)
19
QDF-M0409N
Base Size
04
Threadform
UNO Male
Thread Size
9/16 -18
Coupling Length - L1
37
Hex Size A/F (Hex 1)
17
QDF-M04AC
Base Size
04
Threadform
NPTF socket
Thread Size
1/4-18
Coupling Length - L1
40
Hex Size A/F (Hex 1)
19
INTRODUCING NEW ENDURO SPIRAL HOSE
ENDURO spiral is an extremely flexible slim profile hose featuring our very high wear and abrasion resistant SuperTuff (ST) MSHA cover for increased protection against abrasion in severe operating environments.
