SCREW LOCK SERIES

Product catalogue Quick Release Couplers SCREW LOCK SERIES DUAL LOCK

DUAL LOCK

SCREW LOCK SERIES

DUAL LOCK

QVVS

DUAL LOCK

FASTER PROPRIETARY STANDARD

  • Sizes above 20 (1.1/4) are available on request.
  • Please enquire for other combinations of base size and thread form.
  • Overall length when connected is calculated based on both couplings having the same thread form and size.
  • Recommended for: Construction, earthmoving, hydraulic tools.
  • Connection: Connect with pressure - screw couplings together to connect. Disconnect with pressure - unscrew couplings to disconnect.
  • NOTE: Can be connected with pressure in either or both couplings.
  • Latching: Threaded.
  • Shut-off system: Poppet valve. Reinforced guidevalve with mechanical backstop.
  • Temperature range: -25°C to +125°C
  • Standards: Faster proprietary standard. Interchangeability with all QVV series couplings to size 16 (1).

FASTER PROPRIETARY STANDARD

Download PDF

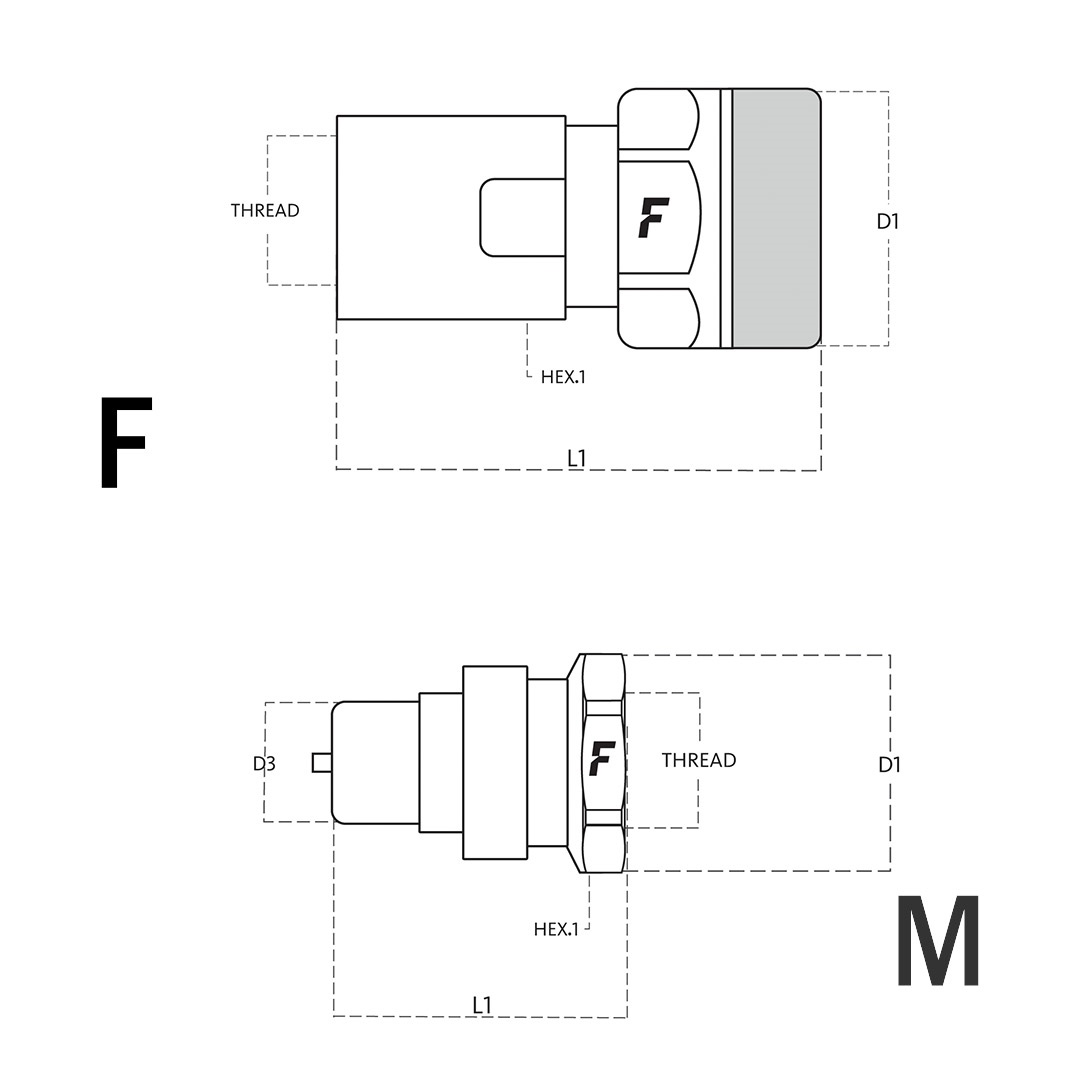

PartNumber
Base Size
Threadform
Thread Size
Coupling Length - L1
Coupling O/D - D1
Hex Size A/F (Hex 1)
Inner Coupling O.D - D3
QVVS-F20
20
BSPPF socket
1.1/4-11
123.0
80
65
QVVS-M04
04
BSPPF socket
1/4-19
43.0
28
25
14.1
QVVS-M06
06
BSPPF socket
3/8-19
48.0
35
30
18.9
QVVS-M08
08
BSPPF socket
1/2-14
53.0
38
34
20.5
QVVS-M12
12
BSPPF socket
3/4-14
63.0
50
46
27.9
QVVS-M16
16
BSPPF socket
1-11
72.0
55
50
31.3
QVVS-M20
20
BSPPF socket
1.1/4-11
86.0
70
65
43.9
QVVS-F04
04
BSPPF socket
1/4-19
58.0
30
22
QVVS-F06
06
BSPPF socket
3/8-19
62.0
40
30
QVVS-F08
08
BSPPF socket
1/2-14
71.0
45
34
QVVS-F12
12
BSPPF socket
3/4-14
63.0
55
41
QVVS-F16
16
BSPPF socket
1-11
100.0
60
50

Product Data

QVVS-F20

Base Size

20

Threadform

BSPPF socket

Thread Size

1.1/4-11

Coupling Length - L1

123.0

Coupling O/D - D1

80

Hex Size A/F (Hex 1)

65

Inner Coupling O.D - D3

QVVS-M04

Base Size

04

Threadform

BSPPF socket

Thread Size

1/4-19

Coupling Length - L1

43.0

Coupling O/D - D1

28

Hex Size A/F (Hex 1)

25

Inner Coupling O.D - D3

14.1

QVVS-M06

Base Size

06

Threadform

BSPPF socket

Thread Size

3/8-19

Coupling Length - L1

48.0

Coupling O/D - D1

35

Hex Size A/F (Hex 1)

30

Inner Coupling O.D - D3

18.9

QVVS-M08

Base Size

08

Threadform

BSPPF socket

Thread Size

1/2-14

Coupling Length - L1

53.0

Coupling O/D - D1

38

Hex Size A/F (Hex 1)

34

Inner Coupling O.D - D3

20.5

QVVS-M12

Base Size

12

Threadform

BSPPF socket

Thread Size

3/4-14

Coupling Length - L1

63.0

Coupling O/D - D1

50

Hex Size A/F (Hex 1)

46

Inner Coupling O.D - D3

27.9

QVVS-M16

Base Size

16

Threadform

BSPPF socket

Thread Size

1-11

Coupling Length - L1

72.0

Coupling O/D - D1

55

Hex Size A/F (Hex 1)

50

Inner Coupling O.D - D3

31.3

QVVS-M20

Base Size

20

Threadform

BSPPF socket

Thread Size

1.1/4-11

Coupling Length - L1

86.0

Coupling O/D - D1

70

Hex Size A/F (Hex 1)

65

Inner Coupling O.D - D3

43.9

QVVS-F04

Base Size

04

Threadform

BSPPF socket

Thread Size

1/4-19

Coupling Length - L1

58.0

Coupling O/D - D1

30

Hex Size A/F (Hex 1)

22

Inner Coupling O.D - D3

QVVS-F06

Base Size

06

Threadform

BSPPF socket

Thread Size

3/8-19

Coupling Length - L1

62.0

Coupling O/D - D1

40

Hex Size A/F (Hex 1)

30

Inner Coupling O.D - D3

QVVS-F08

Base Size

08

Threadform

BSPPF socket

Thread Size

1/2-14

Coupling Length - L1

71.0

Coupling O/D - D1

45

Hex Size A/F (Hex 1)

34

Inner Coupling O.D - D3

QVVS-F12

Base Size

12

Threadform

BSPPF socket

Thread Size

3/4-14

Coupling Length - L1

63.0

Coupling O/D - D1

55

Hex Size A/F (Hex 1)

41

Inner Coupling O.D - D3

QVVS-F16

Base Size

16

Threadform

BSPPF socket

Thread Size

1-11

Coupling Length - L1

100.0

Coupling O/D - D1

60

Hex Size A/F (Hex 1)

50

Inner Coupling O.D - D3
