45 DEGREE ADAPTORS
JIC MALE X UNO ADJUSTABLE
45 DEGREE ADAPTORS
JIC MALE X UNO ADJUSTABLE
G-NP-45
JIC MALE X UNO ADJUSTABLE
- ISO 8434-2

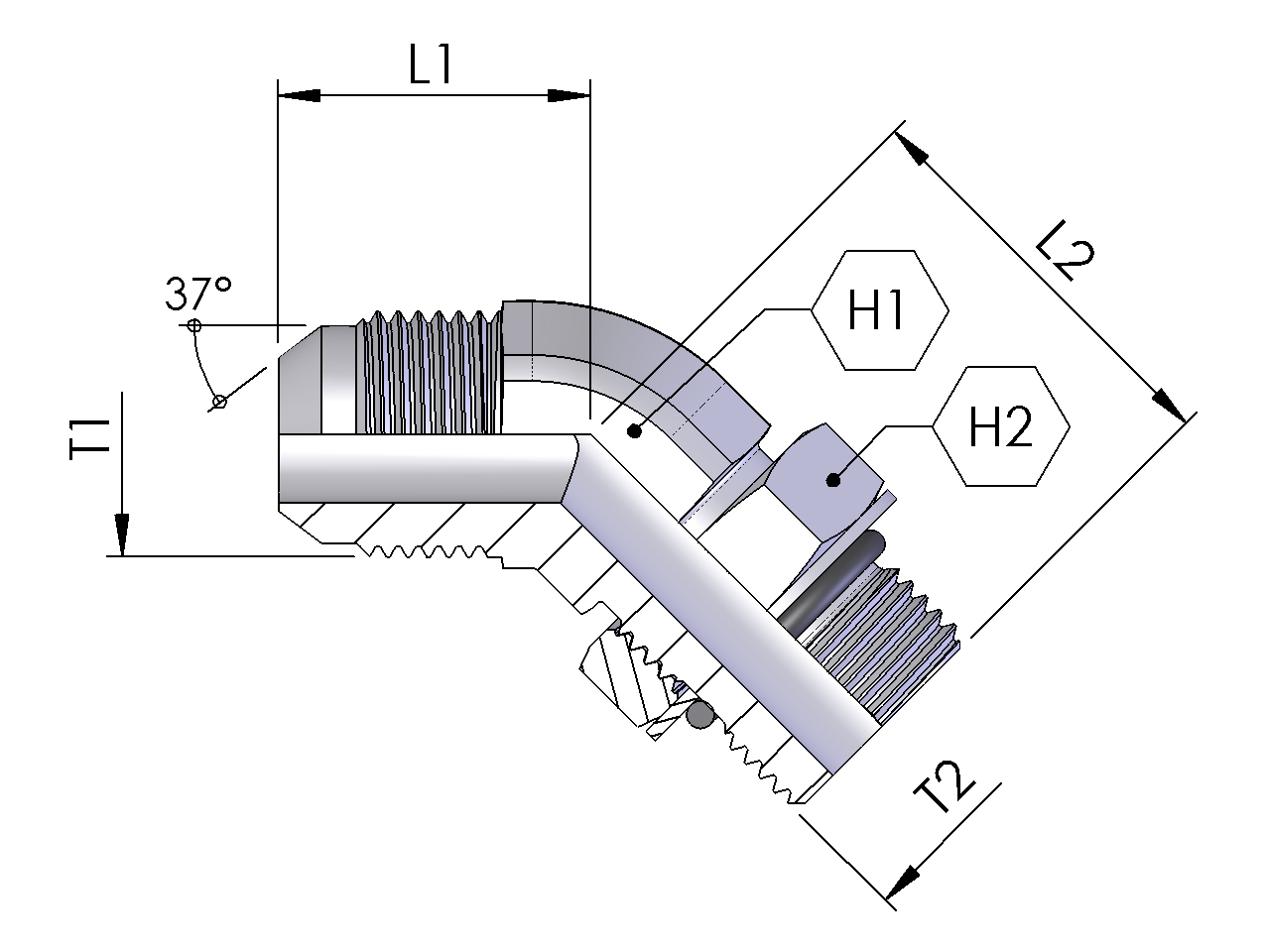

JIC 37° FLARE MALE X UNO ADJUSTABLE STUD 45° ELBOW
Product Data
G-NP-45-0707
Short Code
CRY
T1
7/16-20
T2
7/16-20
H1
14
H2
14
L1
20
L2
27
PN (bar)
315
G-NP-45-0808
Short Code
CSA
T1
1/2-20
T2
1/2-20
H1
14
H2
16
L1
20
L2
27
PN (bar)
315
G-NP-45-0909
Short Code
CSB
T1
9/16-18
T2
9/16-18
H1
14
H2
17
L1
21
L2
28
PN (bar)
250
G-NP-45-0912
Short Code
CSC
T1
9/16-18
T2
3/4-16
H1
19
H2
22
L1
22
L2
32
PN (bar)
250
G-NP-45-1212
Short Code
CSE
T1
3/4-16
T2
3/4-16
H1
19
H2
22
L1
25
L2
32
PN (bar)
250
G-NP-45-1214
Short Code
CSF
T1
3/4-16
T2
7/8-14
H1
22
H2
27
L1
25
L2
37
PN (bar)
250
G-NP-45-1414
Short Code
CSI
T1
7/8-14
T2
7/8-14
H1
22
H2
27
L1
28
L2
37
PN (bar)
200
G-NP-45-1717
Short Code
CSM
T1
1.1/16-12
T2
1.1/16-12
H1
27
H2
32
L1
32
L2
42
PN (bar)
200
G-NP-45-1721
Short Code
CSN
T1
1.1/16-12
T2
1.5/16-12
H1
35
H2
41
L1
36
L2
47
PN (bar)
160
G-NP-45-2121
Short Code
CSQ
T1
1.5/16-12
T2
1.5/16-12
H1
35
H2
41
L1
38
L2
47
PN (bar)
160
G-NP-45-2626
Short Code
CSS
T1
1.5/8-12
T2
1.5/8-12
H1
44
H2
50
L1
41
L2
49
PN (bar)
125
