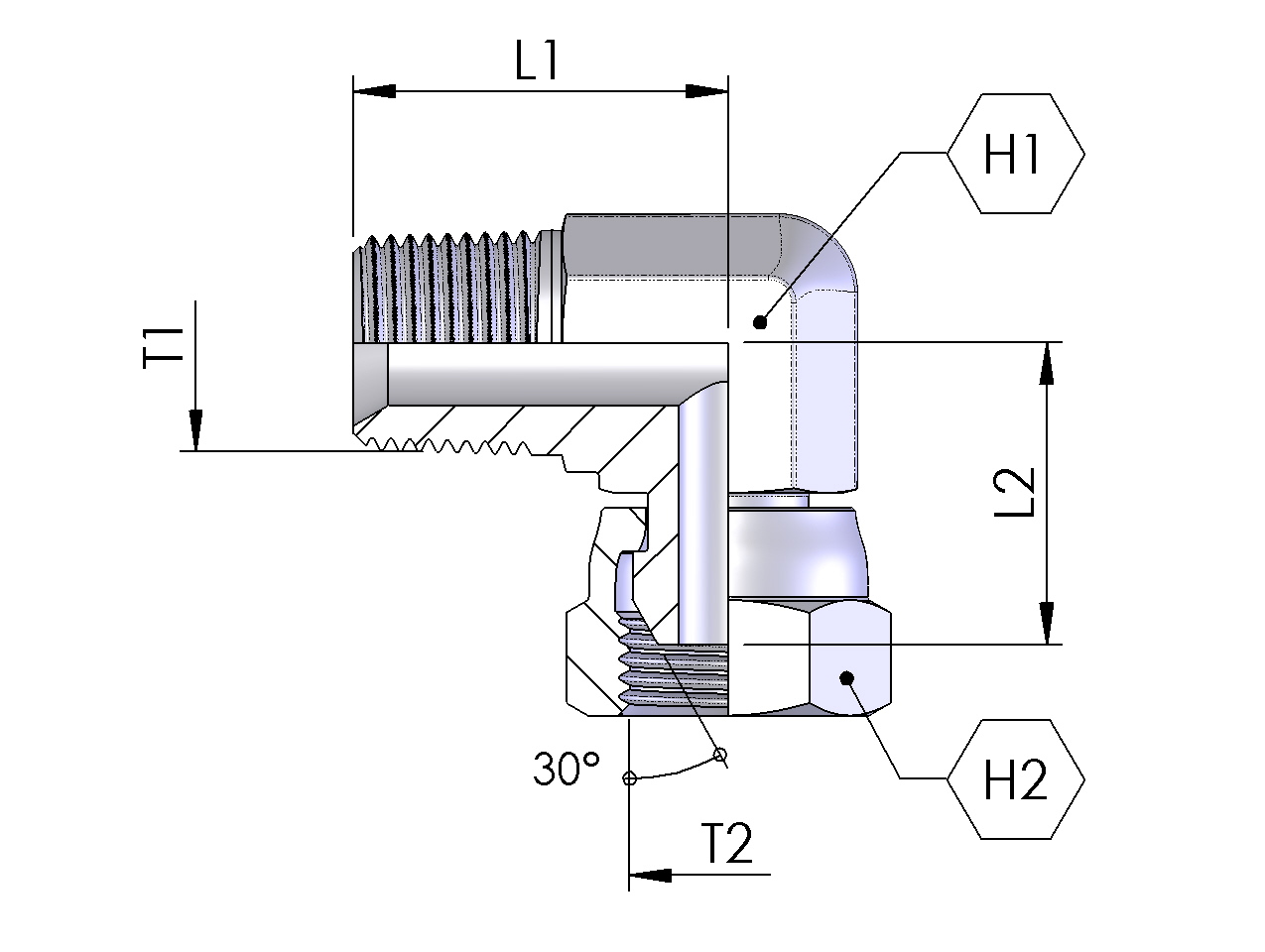

90 DEGREE ADAPTORS
BSPT MALE X BSP FEMALE
90 DEGREE ADAPTORS
BSPT MALE X BSP FEMALE
Product Data
A-C-90-0202
Short Code
AIC
T1
1/8-28
T2
1/8-28
H1
12
H2
14
L1
22
L2
19
PN (bar)
345
A-C-90-0404
Short Code
AID
T1
1/4-19
T2
1/4-19
H1
14
H2
19
L1
26
L2
23
PN (bar)
275
A-C-90-0406
Short Code
AIE
T1
1/4-19
T2
3/8-19
H1
19
H2
22
L1
32
L2
26
PN (bar)
275
A-C-90-0604
Short Code
AIF
T1
3/8-19
T2
1/4-19
H1
19
H2
19
L1
32
L2
25
PN (bar)
210
A-C-90-0606
Short Code
AIG
T1
3/8-19
T2
3/8-19
H1
19
H2
22
L1
32
L2
26
PN (bar)
210
A-C-90-0608
Short Code
AIH
T1
3/8-19
T2
1/2-14
H1
22
H2
27
L1
32
L2
29
PN (bar)
210
A-C-90-0806
Short Code
AII
T1
1/2-14
T2
3/8-19
H1
22
H2
22
L1
36
L2
27
PN (bar)
210
A-C-90-0808
Short Code
AIJ
T1
1/2-14
T2
1/2-14
H1
22
H2
27
L1
36
L2
29
PN (bar)
210
A-C-90-0812
Short Code
AIK
T1
1/2-14
T2
3/4-14
H1
27
H2
32
L1
43
L2
35
PN (bar)
210
A-C-90-1208
Short Code
AIL
T1
3/4-14
T2
1/2-14
H1
27
H2
27
L1
43
L2
33
PN (bar)
170
A-C-90-1212
Short Code
AIM
T1
3/4-14
T2
3/4-14
H1
27
H2
32
L1
43
L2
35
PN (bar)
170
A-C-90-1216
Short Code
AIN
T1
3/4-14
T2
1-11
H1
35
H2
41
L1
45
L2
40
PN (bar)
170
A-C-90-1612
Short Code
AIO
T1
1-11
T2
3/4-14
H1
35
H2
32
L1
48
L2
39
PN (bar)
140
A-C-90-1616
Short Code
AIP
T1
1-11
T2
1-11
H1
35
H2
41
L1
48
L2
40
PN (bar)
140
A-C-90-1620
Short Code
T1
1-11
T2
1.1/4-11
H1
H2
L1
L2
PN (bar)
A-C-90-2020
Short Code
AIQ
T1
1.1/4-11
T2
1.1/4-11
H1
41
H2
48
L1
57
L2
47
PN (bar)
80
A-C-90-2424
Short Code
AIR
T1
1.1/2-11
T2
1.1/2-11
H1
50
H2
58
L1
65
L2
53
PN (bar)
70
