Get the job done with the right equipment

Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.

Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.

The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.

To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.

STRAIGHT ADAPTORS

BSP MALE X MET HEAVY MALE

STRAIGHT ADAPTORS

BSP MALE X MET HEAVY MALE

B-MS

BSP MALE X MET HEAVY MALE

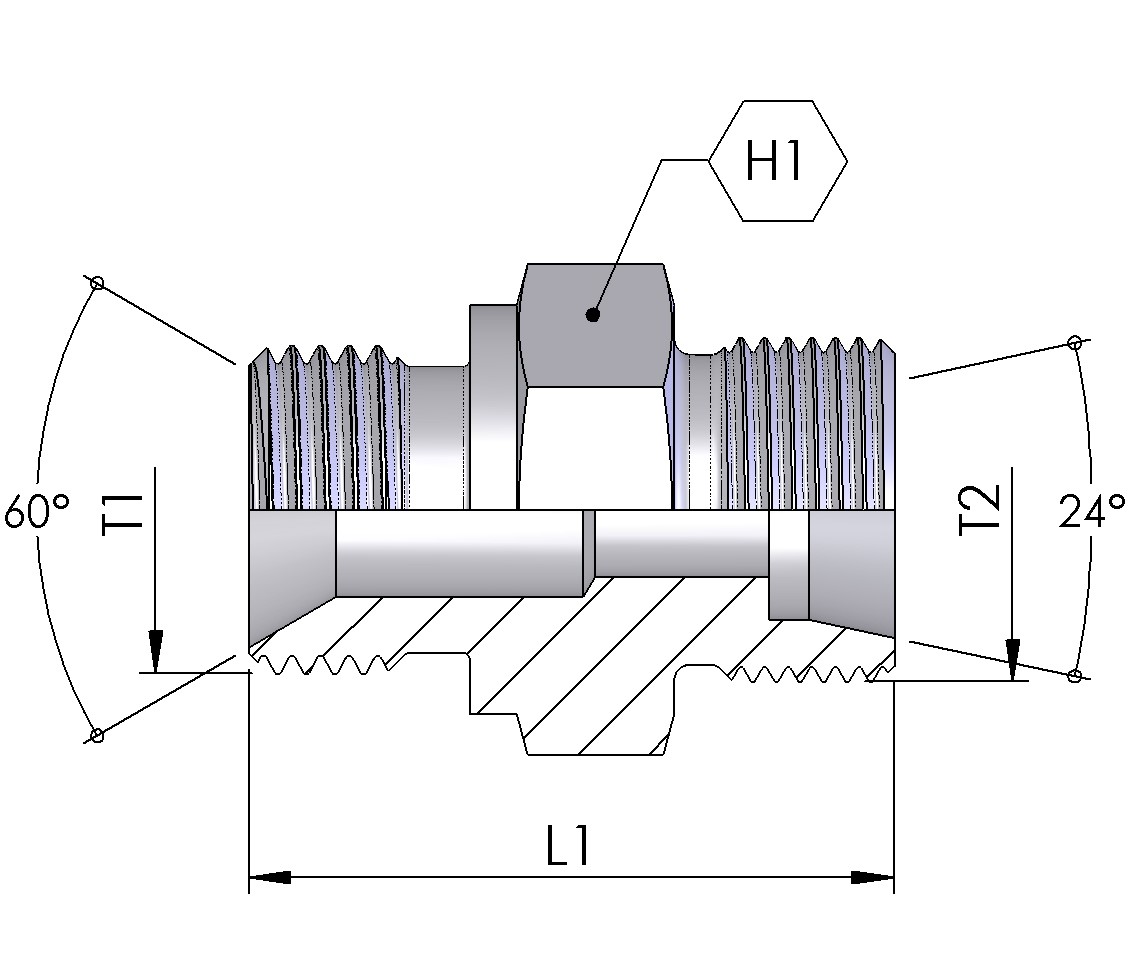

BSP 60° CONE MALE X METRIC 24° CONE HEAVY MALE STRAIGHT

  • For BSP Stud Ends Refer BX-MS series

BSP 60° CONE MALE X METRIC 24° CONE HEAVY MALE STRAIGHT

PartNumber
Suits Tube
T1
T2
L1 (mm)
H1 (mm)
PN (bar)
B-MS-0414
6
1/4-19
M14-1.5
32
19
630
B-MS-0416
8
1/4-19
M16-1.5
34
19
630
B-MS-0614
6
3/8-19
M14-1.5
35
22
630
B-MS-0616
8
3/8-19
M18-1.5
34.5
22
630
B-MS-0618
10
3/8-19
M18-1.5
34.5
22
630
B-MS-0620
12
3/8-19
M20-1.5
36.5
22
630
B-MS-0622
14
3/8-19
M22-1.5
38.5
24
630
B-MS-0818
10
1/2-14
M18-1.5
39
27
630
B-MS-0820
12
1/2-14
M20-1.5
39
27
630
B-MS-0822
14
1/2-14
M22-1.5
41
27
630
B-MS-0824
16
1/2-14
M24-1.5
41
27
400
B-MS-1230
20
3/4-14
M30-2
47
32
400
B-MS-1236
25
3/4-14
M36-2
51
41
400
B-MS-1636
25
1-11
M36-2
53
41
400
B-MS-1642
30
1-11
M36-2
55
41
400

Product Data

B-MS-0414

Suits Tube

6

T1

1/4-19

T2

M14-1.5

L1 (mm)

32

H1 (mm)

19

PN (bar)

630

B-MS-0416

Suits Tube

8

T1

1/4-19

T2

M16-1.5

L1 (mm)

34

H1 (mm)

19

PN (bar)

630

B-MS-0614

Suits Tube

6

T1

3/8-19

T2

M14-1.5

L1 (mm)

35

H1 (mm)

22

PN (bar)

630

B-MS-0616

Suits Tube

8

T1

3/8-19

T2

M18-1.5

L1 (mm)

34.5

H1 (mm)

22

PN (bar)

630

B-MS-0618

Suits Tube

10

T1

3/8-19

T2

M18-1.5

L1 (mm)

34.5

H1 (mm)

22

PN (bar)

630

B-MS-0620

Suits Tube

12

T1

3/8-19

T2

M20-1.5

L1 (mm)

36.5

H1 (mm)

22

PN (bar)

630

B-MS-0622

Suits Tube

14

T1

3/8-19

T2

M22-1.5

L1 (mm)

38.5

H1 (mm)

24

PN (bar)

630

B-MS-0818

Suits Tube

10

T1

1/2-14

T2

M18-1.5

L1 (mm)

39

H1 (mm)

27

PN (bar)

630

B-MS-0820

Suits Tube

12

T1

1/2-14

T2

M20-1.5

L1 (mm)

39

H1 (mm)

27

PN (bar)

630

B-MS-0822

Suits Tube

14

T1

1/2-14

T2

M22-1.5

L1 (mm)

41

H1 (mm)

27

PN (bar)

630

B-MS-0824

Suits Tube

16

T1

1/2-14

T2

M24-1.5

L1 (mm)

41

H1 (mm)

27

PN (bar)

400

B-MS-1230

Suits Tube

20

T1

3/4-14

T2

M30-2

L1 (mm)

47

H1 (mm)

32

PN (bar)

400

B-MS-1236

Suits Tube

25

T1

3/4-14

T2

M36-2

L1 (mm)

51

H1 (mm)

41

PN (bar)

400

B-MS-1636

Suits Tube

25

T1

1-11

T2

M36-2

L1 (mm)

53

H1 (mm)

41

PN (bar)

400

B-MS-1642

Suits Tube

30

T1

1-11

T2

M36-2

L1 (mm)

55

H1 (mm)

41

PN (bar)

400
