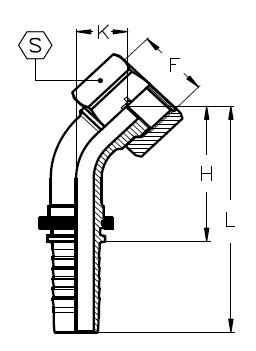

Product catalogue Carbon Steel Swage Couplings ORFS ORFS FEMALE 45° ELBOW

ORFS FEMALE 45° ELBOW

ORFS

ORFS FEMALE 45° ELBOW

S63

ORFS FEMALE 45° ELBOW

ORFS FEMALE SWIVEL NUT 45° ELBOW

  • ISO 12151-1/SAE J516

ORFS FEMALE SWIVEL NUT 45° ELBOW

Download PDF
PartNumber
ORFS Female Thread (F)
Hose I.D (Inches)
Hose I.D (mm)
Dash size
Hex A/F (S)
Drop mm (K)
Cutoff (H)
Length mm (L)
Working Pressure (bar)
Working Pressure (psi)
S63-0904
9/16-18
1/4
6.3
04
17
10.5
32.5
60.5
450
6500
S63-1104
11/16-16
1/4
6.3
04
22
12.5
34.5
62.5
450
6500
S63-1106
11/16-16
3/8
10
06
22
12.5
36
66.5
450
6500
S63-1306
13/16-16
3/8
10
06
24
15
38.5
69
450
6500
S63-1308
13/16-16
1/2
12.5
08
24
15.5
42.5
75.5
415
6000
S63-1608
1-14
1/2
12.5
08
30
17.5
45
78
415
6000
S63-1610
1-14
5/8
16
10
30
18
49
85
350
5000
S63-1910
1 3/16-12
5/8
16
10
36
20.5
51.5
87.5
350
5000
S63-1912
1 3/16-12
3/4
19
12
36
21
58
99
350
5000
S63-2312
1 7/16-12
3/4
19
12
41
23.5
60.5
101
350
5000
S63-2316
1 7/16-12
1
25
16
41
29
78
134
415
6000
S63-2720
1 11/16-12
1 1/4
31.5
20
50
34
93
159
345
5000
S63-3224
2-12
1 1/2
38
24
60
41
113
195
290
4200

Product Data

S63-0904

ORFS Female Thread (F)

9/16-18

Hose I.D (Inches)

1/4

Hose I.D (mm)

6.3

Dash size

04

Hex A/F (S)

17

Drop mm (K)

10.5

Cutoff (H)

32.5

Length mm (L)

60.5

Working Pressure (bar)

450

Working Pressure (psi)

6500

S63-1104

ORFS Female Thread (F)

11/16-16

Hose I.D (Inches)

1/4

Hose I.D (mm)

6.3

Dash size

04

Hex A/F (S)

22

Drop mm (K)

12.5

Cutoff (H)

34.5

Length mm (L)

62.5

Working Pressure (bar)

450

Working Pressure (psi)

6500

S63-1106

ORFS Female Thread (F)

11/16-16

Hose I.D (Inches)

3/8

Hose I.D (mm)

10

Dash size

06

Hex A/F (S)

22

Drop mm (K)

12.5

Cutoff (H)

36

Length mm (L)

66.5

Working Pressure (bar)

450

Working Pressure (psi)

6500

S63-1306

ORFS Female Thread (F)

13/16-16

Hose I.D (Inches)

3/8

Hose I.D (mm)

10

Dash size

06

Hex A/F (S)

24

Drop mm (K)

15

Cutoff (H)

38.5

Length mm (L)

69

Working Pressure (bar)

450

Working Pressure (psi)

6500

S63-1308

ORFS Female Thread (F)

13/16-16

Hose I.D (Inches)

1/2

Hose I.D (mm)

12.5

Dash size

08

Hex A/F (S)

24

Drop mm (K)

15.5

Cutoff (H)

42.5

Length mm (L)

75.5

Working Pressure (bar)

415

Working Pressure (psi)

6000

S63-1608

ORFS Female Thread (F)

1-14

Hose I.D (Inches)

1/2

Hose I.D (mm)

12.5

Dash size

08

Hex A/F (S)

30

Drop mm (K)

17.5

Cutoff (H)

45

Length mm (L)

78

Working Pressure (bar)

415

Working Pressure (psi)

6000

S63-1610

ORFS Female Thread (F)

1-14

Hose I.D (Inches)

5/8

Hose I.D (mm)

16

Dash size

10

Hex A/F (S)

30

Drop mm (K)

18

Cutoff (H)

49

Length mm (L)

85

Working Pressure (bar)

350

Working Pressure (psi)

5000

S63-1910

ORFS Female Thread (F)

1 3/16-12

Hose I.D (Inches)

5/8

Hose I.D (mm)

16

Dash size

10

Hex A/F (S)

36

Drop mm (K)

20.5

Cutoff (H)

51.5

Length mm (L)

87.5

Working Pressure (bar)

350

Working Pressure (psi)

5000

S63-1912

ORFS Female Thread (F)

1 3/16-12

Hose I.D (Inches)

3/4

Hose I.D (mm)

19

Dash size

12

Hex A/F (S)

36

Drop mm (K)

21

Cutoff (H)

58

Length mm (L)

99

Working Pressure (bar)

350

Working Pressure (psi)

5000

S63-2312

ORFS Female Thread (F)

1 7/16-12

Hose I.D (Inches)

3/4

Hose I.D (mm)

19

Dash size

12

Hex A/F (S)

41

Drop mm (K)

23.5

Cutoff (H)

60.5

Length mm (L)

101

Working Pressure (bar)

350

Working Pressure (psi)

5000

S63-2316

ORFS Female Thread (F)

1 7/16-12

Hose I.D (Inches)

1

Hose I.D (mm)

25

Dash size

16

Hex A/F (S)

41

Drop mm (K)

29

Cutoff (H)

78

Length mm (L)

134

Working Pressure (bar)

415

Working Pressure (psi)

6000

S63-2720

ORFS Female Thread (F)

1 11/16-12

Hose I.D (Inches)

1 1/4

Hose I.D (mm)

31.5

Dash size

20

Hex A/F (S)

50

Drop mm (K)

34

Cutoff (H)

93

Length mm (L)

159

Working Pressure (bar)

345

Working Pressure (psi)

5000

S63-3224

ORFS Female Thread (F)

2-12

Hose I.D (Inches)

1 1/2

Hose I.D (mm)

38

Dash size

24

Hex A/F (S)

60

Drop mm (K)

41

Cutoff (H)

113

Length mm (L)

195

Working Pressure (bar)

290

Working Pressure (psi)

4200
