SAE FLANGES

SAE C61 30° ELBOW

SAE FLANGES

SAE C61 30° ELBOW

S45

SAE C61 30° ELBOW

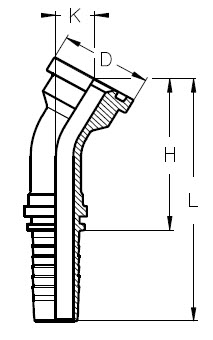

SAE FLANGE CODE 61 30° ELBOW

  • ISO 12151-3/SAE J516

SAE FLANGE CODE 61 30° ELBOW

PartNumber
Nominal SAE Flange size (D)
Hose I.D (Inches)
Hose I.D (mm)
Dash size
Flange O.D mm (D)
Drop mm (K)
Cutoff mm (H)
Length mm (L)
Working Pressure (bar)
Working Pressure (psi)
S45-1212
3/4
3/4
19
12
38.1
16
65
106
350
5000
S45-1612
1
3/4
19
12
44.5
17
68
108
350
5000
S45-1616
1
1
25
16
44.5
17
84
140
350
5000
S45-2016
1 1/4
1
25
16
50.8
17
84
140
280
4000
S45-2020
1 1/4
1 1/4
31.5
20
50.8
19
98
164
280
4000
S45-2420
1 1/2
1 1/4
31.5
20
60.4
19
98
164
210
3000
S45-2424
1 1/2
1 1/2
38
24
60.4
22
116
199
210
3000
S45-3232
2
2
51
32
71.4
31
162
258
210
3000

Product Data

S45-1212

Nominal SAE Flange size (D)

3/4

Hose I.D (Inches)

3/4

Hose I.D (mm)

19

Dash size

12

Flange O.D mm (D)

38.1

Drop mm (K)

16

Cutoff mm (H)

65

Length mm (L)

106

Working Pressure (bar)

350

Working Pressure (psi)

5000

S45-1612

Nominal SAE Flange size (D)

1

Hose I.D (Inches)

3/4

Hose I.D (mm)

19

Dash size

12

Flange O.D mm (D)

44.5

Drop mm (K)

17

Cutoff mm (H)

68

Length mm (L)

108

Working Pressure (bar)

350

Working Pressure (psi)

5000

S45-1616

Nominal SAE Flange size (D)

1

Hose I.D (Inches)

1

Hose I.D (mm)

25

Dash size

16

Flange O.D mm (D)

44.5

Drop mm (K)

17

Cutoff mm (H)

84

Length mm (L)

140

Working Pressure (bar)

350

Working Pressure (psi)

5000

S45-2016

Nominal SAE Flange size (D)

1 1/4

Hose I.D (Inches)

1

Hose I.D (mm)

25

Dash size

16

Flange O.D mm (D)

50.8

Drop mm (K)

17

Cutoff mm (H)

84

Length mm (L)

140

Working Pressure (bar)

280

Working Pressure (psi)

4000

S45-2020

Nominal SAE Flange size (D)

1 1/4

Hose I.D (Inches)

1 1/4

Hose I.D (mm)

31.5

Dash size

20

Flange O.D mm (D)

50.8

Drop mm (K)

19

Cutoff mm (H)

98

Length mm (L)

164

Working Pressure (bar)

280

Working Pressure (psi)

4000

S45-2420

Nominal SAE Flange size (D)

1 1/2

Hose I.D (Inches)

1 1/4

Hose I.D (mm)

31.5

Dash size

20

Flange O.D mm (D)

60.4

Drop mm (K)

19

Cutoff mm (H)

98

Length mm (L)

164

Working Pressure (bar)

210

Working Pressure (psi)

3000

S45-2424

Nominal SAE Flange size (D)

1 1/2

Hose I.D (Inches)

1 1/2

Hose I.D (mm)

38

Dash size

24

Flange O.D mm (D)

60.4

Drop mm (K)

22

Cutoff mm (H)

116

Length mm (L)

199

Working Pressure (bar)

210

Working Pressure (psi)

3000

S45-3232

Nominal SAE Flange size (D)

2

Hose I.D (Inches)

2

Hose I.D (mm)

51

Dash size

32

Flange O.D mm (D)

71.4

Drop mm (K)

31

Cutoff mm (H)

162

Length mm (L)

258

Working Pressure (bar)

210

Working Pressure (psi)

3000
