SAE FLANGES

SAE C61 90° ELBOW

SAE FLANGES

SAE C61 90° ELBOW

S59L

SAE C61 90° ELBOW

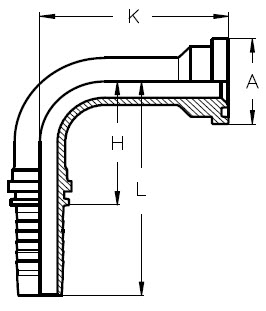

SAE FLANGE CODE 61 90° ELBOW EXTENDED

  • ISO 12151-3/SAE J516

SAE FLANGE CODE 61 90° ELBOW EXTENDED

PartNumber
Nominal SAE Flange size (A)
Hose I.D (Inches)
Hose I.D (mm)
Dash size
Flange O.D mm (A)
Drop mm (K)
Cutoff mm (H)
Length mm (L)
Working Pressure (bar)
Working Pressure (psi)
S59L-1212
3/4
3/4
19
12
38.1
127
55
95
350
5000
S59L-1616
1
1
25
16
44.5
118
71
128
350
5000
S59L-2020
1 1/4
1 1/4
31.5
20
50.8
168
87
154
280
4000

Product Data

S59L-1212

Nominal SAE Flange size (A)

3/4

Hose I.D (Inches)

3/4

Hose I.D (mm)

19

Dash size

12

Flange O.D mm (A)

38.1

Drop mm (K)

127

Cutoff mm (H)

55

Length mm (L)

95

Working Pressure (bar)

350

Working Pressure (psi)

5000

S59L-1616

Nominal SAE Flange size (A)

1

Hose I.D (Inches)

1

Hose I.D (mm)

25

Dash size

16

Flange O.D mm (A)

44.5

Drop mm (K)

118

Cutoff mm (H)

71

Length mm (L)

128

Working Pressure (bar)

350

Working Pressure (psi)

5000

S59L-2020

Nominal SAE Flange size (A)

1 1/4

Hose I.D (Inches)

1 1/4

Hose I.D (mm)

31.5

Dash size

20

Flange O.D mm (A)

50.8

Drop mm (K)

168

Cutoff mm (H)

87

Length mm (L)

154

Working Pressure (bar)

280

Working Pressure (psi)

4000
