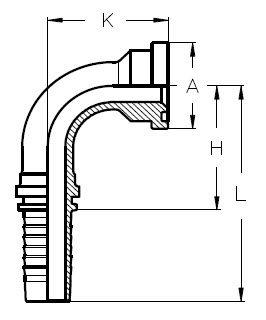

SAE FLANGE CODE 62 90° ELBOW

  • ISO 12151-3/SAE J516

SAE FLANGE CODE 62 90° ELBOW

Download PDF
PartNumber
Nominal SAE Flange size (A)
Hose I.D (Inches)
Hose I.D (mm)
Dash size
Flange O.D mm (A)
Drop mm (K)
Cutoff mm (H)
Length mm (L)
Working Pressure (bar)
Working Pressure (psi)
S61-0808
1/2
1/2
12.5
08
31.8
40
38
71
415
6000
S61-1208
3/4
1/2
12.5
08
41.3
47
38
71
415
6000
S61-1210
3/4
5/8
16
10
41.3
50
45
81
350
5000
S61-1212
3/4
3/4
19
12
41.3
54
55
95
350
5000
S61-1216
3/4
1
25
16
41.3
65
71
128
415
6000
S61-1612
1
3/4
19
12
47.6
63
56
415
6000
S61-1616
1
1
25
16
47.6
64
71
128
415
6000
S61-1620
1
1 1/4
31.5
20
47.6
79
87
154
415
6000
S61-2016
1 1/4
1
25
16
54
64
71
128
415
6000
S61-2020
1 1/4
1 1/4
31.5
20
54
74
87
154
415
6000
S61-2020-X160
1 1/4
1 1/4
31.8
20
54
160
87
154
415
6000
S61-2420
1 1/2
1 1/4
31.5
20
63.5
76
87
154
415
6000
S61-2424
1 1/2
1 1/2
38.1
24
63.5
88
105
188
415
6000
S61-3232
2
2
50.8
32
79.4
123
140
237
415
6000

Product Data

S61-0808

Nominal SAE Flange size (A)

1/2

Hose I.D (Inches)

1/2

Hose I.D (mm)

12.5

Dash size

08

Flange O.D mm (A)

31.8

Drop mm (K)

40

Cutoff mm (H)

38

Length mm (L)

71

Working Pressure (bar)

415

Working Pressure (psi)

6000

S61-1208

Nominal SAE Flange size (A)

3/4

Hose I.D (Inches)

1/2

Hose I.D (mm)

12.5

Dash size

08

Flange O.D mm (A)

41.3

Drop mm (K)

47

Cutoff mm (H)

38

Length mm (L)

71

Working Pressure (bar)

415

Working Pressure (psi)

6000

S61-1210

Nominal SAE Flange size (A)

3/4

Hose I.D (Inches)

5/8

Hose I.D (mm)

16

Dash size

10

Flange O.D mm (A)

41.3

Drop mm (K)

50

Cutoff mm (H)

45

Length mm (L)

81

Working Pressure (bar)

350

Working Pressure (psi)

5000

S61-1212

Nominal SAE Flange size (A)

3/4

Hose I.D (Inches)

3/4

Hose I.D (mm)

19

Dash size

12

Flange O.D mm (A)

41.3

Drop mm (K)

54

Cutoff mm (H)

55

Length mm (L)

95

Working Pressure (bar)

350

Working Pressure (psi)

5000

S61-1216

Nominal SAE Flange size (A)

3/4

Hose I.D (Inches)

1

Hose I.D (mm)

25

Dash size

16

Flange O.D mm (A)

41.3

Drop mm (K)

65

Cutoff mm (H)

71

Length mm (L)

128

Working Pressure (bar)

415

Working Pressure (psi)

6000

S61-1612

Nominal SAE Flange size (A)

1

Hose I.D (Inches)

3/4

Hose I.D (mm)

19

Dash size

12

Flange O.D mm (A)

47.6

Drop mm (K)

63

Cutoff mm (H)

56

Length mm (L)

Working Pressure (bar)

415

Working Pressure (psi)

6000

S61-1616

Nominal SAE Flange size (A)

1

Hose I.D (Inches)

1

Hose I.D (mm)

25

Dash size

16

Flange O.D mm (A)

47.6

Drop mm (K)

64

Cutoff mm (H)

71

Length mm (L)

128

Working Pressure (bar)

415

Working Pressure (psi)

6000

S61-1620

Nominal SAE Flange size (A)

1

Hose I.D (Inches)

1 1/4

Hose I.D (mm)

31.5

Dash size

20

Flange O.D mm (A)

47.6

Drop mm (K)

79

Cutoff mm (H)

87

Length mm (L)

154

Working Pressure (bar)

415

Working Pressure (psi)

6000

S61-2016

Nominal SAE Flange size (A)

1 1/4

Hose I.D (Inches)

1

Hose I.D (mm)

25

Dash size

16

Flange O.D mm (A)

54

Drop mm (K)

64

Cutoff mm (H)

71

Length mm (L)

128

Working Pressure (bar)

415

Working Pressure (psi)

6000

S61-2020

Nominal SAE Flange size (A)

1 1/4

Hose I.D (Inches)

1 1/4

Hose I.D (mm)

31.5

Dash size

20

Flange O.D mm (A)

54

Drop mm (K)

74

Cutoff mm (H)

87

Length mm (L)

154

Working Pressure (bar)

415

Working Pressure (psi)

6000

S61-2020-X160

Nominal SAE Flange size (A)

1 1/4

Hose I.D (Inches)

1 1/4

Hose I.D (mm)

31.8

Dash size

20

Flange O.D mm (A)

54

Drop mm (K)

160

Cutoff mm (H)

87

Length mm (L)

154

Working Pressure (bar)

415

Working Pressure (psi)

6000

S61-2420

Nominal SAE Flange size (A)

1 1/2

Hose I.D (Inches)

1 1/4

Hose I.D (mm)

31.5

Dash size

20

Flange O.D mm (A)

63.5

Drop mm (K)

76

Cutoff mm (H)

87

Length mm (L)

154

Working Pressure (bar)

415

Working Pressure (psi)

6000

S61-2424

Nominal SAE Flange size (A)

1 1/2

Hose I.D (Inches)

1 1/2

Hose I.D (mm)

38.1

Dash size

24

Flange O.D mm (A)

63.5

Drop mm (K)

88

Cutoff mm (H)

105

Length mm (L)

188

Working Pressure (bar)

415

Working Pressure (psi)

6000

S61-3232

Nominal SAE Flange size (A)

2

Hose I.D (Inches)

2

Hose I.D (mm)

50.8

Dash size

32

Flange O.D mm (A)

79.4

Drop mm (K)

123

Cutoff mm (H)

140

Length mm (L)

237

Working Pressure (bar)

415

Working Pressure (psi)

6000
