SAE FLANGES

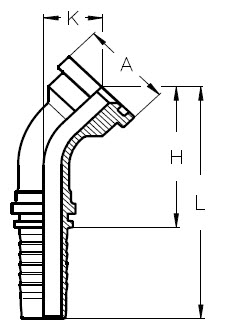

SAE C62 45° ELBOW
SAE FLANGES
SAE C62 45° ELBOW
Product Data
S62-0808
Nominal SAE Flange size (A)
1/2
Hose I.D (Inches)
1/2
Hose I.D (mm)
12.5
Dash size
08
Flange O.D mm (A)
31.8
Drop mm (K)
20
Cutoff mm (H)
47
Length mm (L)
80
Working Pressure (bar)
415
Working Pressure (psi)
6000
S62-1210
Nominal SAE Flange size (A)
3/4
Hose I.D (Inches)
5/8
Hose I.D (mm)
16
Dash size
10
Flange O.D mm (A)
41.3
Drop mm (K)
26
Cutoff mm (H)
57
Length mm (L)
93
Working Pressure (bar)
350
Working Pressure (psi)
5000
S62-1212
Nominal SAE Flange size (A)
3/4
Hose I.D (Inches)
3/4
Hose I.D (mm)
19
Dash size
12
Flange O.D mm (A)
41.3
Drop mm (K)
26
Cutoff mm (H)
64
Length mm (L)
104
Working Pressure (bar)
350
Working Pressure (psi)
5000
S62-1610
Nominal SAE Flange size (A)
1
Hose I.D (Inches)
5/8
Hose I.D (mm)
15.9
Dash size
10
Flange O.D mm (A)
47.6
Drop mm (K)
32
Cutoff mm (H)
77
Length mm (L)
Working Pressure (bar)
350
Working Pressure (psi)
5000
S62-1612
Nominal SAE Flange size (A)
1
Hose I.D (Inches)
3/4
Hose I.D (mm)
19
Dash size
12
Flange O.D mm (A)
47.6
Drop mm (K)
31
Cutoff mm (H)
68
Length mm (L)
108
Working Pressure (bar)
350
Working Pressure (psi)
5000
S62-1616
Nominal SAE Flange size (A)
1
Hose I.D (Inches)
1
Hose I.D (mm)
25
Dash size
16
Flange O.D mm (A)
47.6
Drop mm (K)
30
Cutoff mm (H)
80
Length mm (L)
136
Working Pressure (bar)
415
Working Pressure (psi)
6000
S62-1620
Nominal SAE Flange size (A)
1
Hose I.D (Inches)
1 1/4
Hose I.D (mm)
31.5
Dash size
20
Flange O.D mm (A)
47.6
Drop mm (K)
37
Cutoff mm (H)
96
Length mm (L)
136
Working Pressure (bar)
415
Working Pressure (psi)
6000
S62-2016
Nominal SAE Flange size (A)
1 1/4
Hose I.D (Inches)
1
Hose I.D (mm)
25
Dash size
16
Flange O.D mm (A)
54
Drop mm (K)
30
Cutoff mm (H)
80
Length mm (L)
136
Working Pressure (bar)
415
Working Pressure (psi)
6000
S62-2020
Nominal SAE Flange size (A)
1 1/4
Hose I.D (Inches)
1 1/4
Hose I.D (mm)
31.5
Dash size
20
Flange O.D mm (A)
54
Drop mm (K)
34
Cutoff mm (H)
93
Length mm (L)
160
Working Pressure (bar)
415
Working Pressure (psi)
6000
S62-2420
Nominal SAE Flange size (A)
1 1/2
Hose I.D (Inches)
1 1/4
Hose I.D (mm)
31.5
Dash size
20
Flange O.D mm (A)
63.5
Drop mm (K)
35
Cutoff mm (H)
94
Length mm (L)
161
Working Pressure (bar)
415
Working Pressure (psi)
6000
S62-2424
Nominal SAE Flange size (A)
1 1/2
Hose I.D (Inches)
1 1/2
Hose I.D (mm)
38.1
Dash size
24
Flange O.D mm (A)
63.5
Drop mm (K)
40
Cutoff mm (H)
112
Length mm (L)
195
Working Pressure (bar)
415
Working Pressure (psi)
6000
S62-3232
Nominal SAE Flange size (A)
2
Hose I.D (Inches)
2
Hose I.D (mm)
50.8
Dash size
32
Flange O.D mm (A)
79.4
Drop mm (K)
56
Cutoff mm (H)
150
Length mm (L)
247
Working Pressure (bar)
415
Working Pressure (psi)
6000
