Get the job done with the right equipment

Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.

Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.

The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.

To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.

  • Product Catalogue
  • Promotions
  • Our Agencies
  • Our Quality
  • Safety Data Sheets

FLEET APPLICATION HOSE

ONE WIRE NOMINAL BORE HOSE

FLEET APPLICATION HOSE

ONE WIRE NOMINAL BORE HOSE

FLEET APPLICATION HOSE

ONE WIRE NOMINAL BORE HOSE

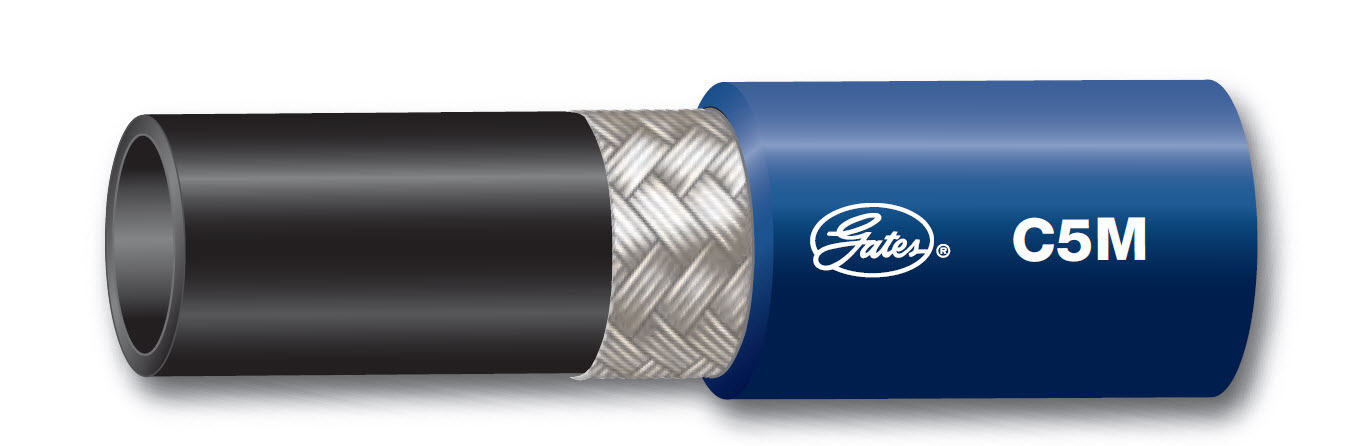

MARINE FUEL BRAIDED WIRE REINFORCED HOSE

PartNumber
Internal Size
Internal Diameter - mm
Internal Diameter - inches
External Diameter - mm
Working Pressure - psi
Working pressure - bar
Min burst pressure - psi
Min burst pressure - bar
Min bend radius - mm
5C5M
05
6
1/4
14.7
500
35
2000
140
25
6C5M
06
8
5/16
17.0
500
35
2000
140
32
8C5M
08
10
13/32
19.6
500
35
2000
140
45
10C5M
10
12
1/2
23.4
500
35
2000
140
60
12C5M
12
16
5/8
27.4
500
35
2000
140
70
16C5M
16
22
7/8
31.2
500
35
2000
140
90

Product Data

5C5M

Internal Size

05

Internal Diameter - mm

6

Internal Diameter - inches

1/4

External Diameter - mm

14.7

Working Pressure - psi

500

Working pressure - bar

35

Min burst pressure - psi

2000

Min burst pressure - bar

140

Min bend radius - mm

25

6C5M

Internal Size

06

Internal Diameter - mm

8

Internal Diameter - inches

5/16

External Diameter - mm

17.0

Working Pressure - psi

500

Working pressure - bar

35

Min burst pressure - psi

2000

Min burst pressure - bar

140

Min bend radius - mm

32

8C5M

Internal Size

08

Internal Diameter - mm

10

Internal Diameter - inches

13/32

External Diameter - mm

19.6

Working Pressure - psi

500

Working pressure - bar

35

Min burst pressure - psi

2000

Min burst pressure - bar

140

Min bend radius - mm

45

10C5M

Internal Size

10

Internal Diameter - mm

12

Internal Diameter - inches

1/2

External Diameter - mm

23.4

Working Pressure - psi

500

Working pressure - bar

35

Min burst pressure - psi

2000

Min burst pressure - bar

140

Min bend radius - mm

60

12C5M

Internal Size

12

Internal Diameter - mm

16

Internal Diameter - inches

5/8

External Diameter - mm

27.4

Working Pressure - psi

500

Working pressure - bar

35

Min burst pressure - psi

2000

Min burst pressure - bar

140

Min bend radius - mm

70

16C5M

Internal Size

16

Internal Diameter - mm

22

Internal Diameter - inches

7/8

External Diameter - mm

31.2

Working Pressure - psi

500

Working pressure - bar

35

Min burst pressure - psi

2000

Min burst pressure - bar

140

Min bend radius - mm

90

INTRODUCING NEW ENDURO SPIRAL HOSE

ENDURO spiral is an extremely flexible slim profile hose featuring our very high wear and abrasion resistant SuperTuff (ST) MSHA cover for increased protection against abrasion in severe operating environments.

VIEW ENDURO BROCHURE
