HIGH PRESSURE HOSE
TWO WIRE BRAID HOSE
HIGH PRESSURE HOSE
TWO WIRE BRAID HOSE

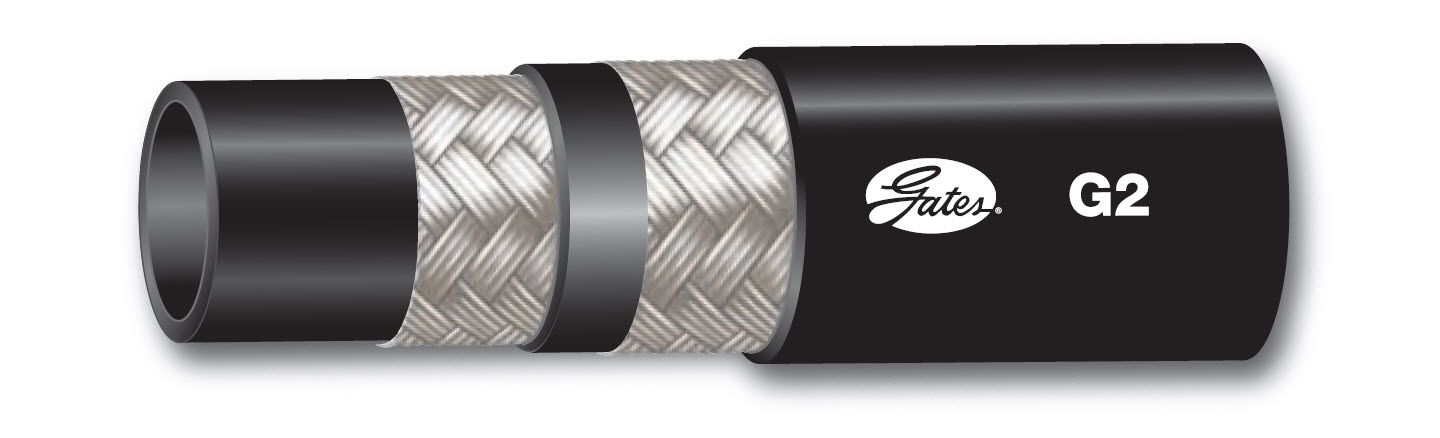

G2
TWO WIRE BRAID HOSE
- Due to manufacturing tolerances, the external dimension is an average.
- Recommended for: High pressure hydraulic applications.
- Internal tube: Nitrile based.
- Reinforcement: Two braids of high tensile steel wire.
- External cover: NBR/PVC based. MSHA approved.
- Temperature range: -40°C to +100°C constant and +121°C intermittent.
- Standards: SAE 100R2AT. SAE 100R2S. EN 853 2SN. ISO 1436.
- Characteristics: G2 hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids.
BRAIDED WIRE REINFORCED HOSE - SAE 100R2 Type AT
Product Data
6G2
Internal Size
06
Internal DN
10
Internal Diameter - inches
3/8
External Diameter - mm
18.8
Working Pressure - psi
4800
Working pressure - bar
330
Min burst pressure - psi
19200
Min burst pressure - bar
1320
Min bend radius - mm
130
20G2
Internal Size
20
Internal DN
31
Internal Diameter - inches
1.1/4
External Diameter - mm
47.5
Working Pressure - psi
1825
Working pressure - bar
125
Min burst pressure - psi
7300
Min burst pressure - bar
500
Min bend radius - mm
420
