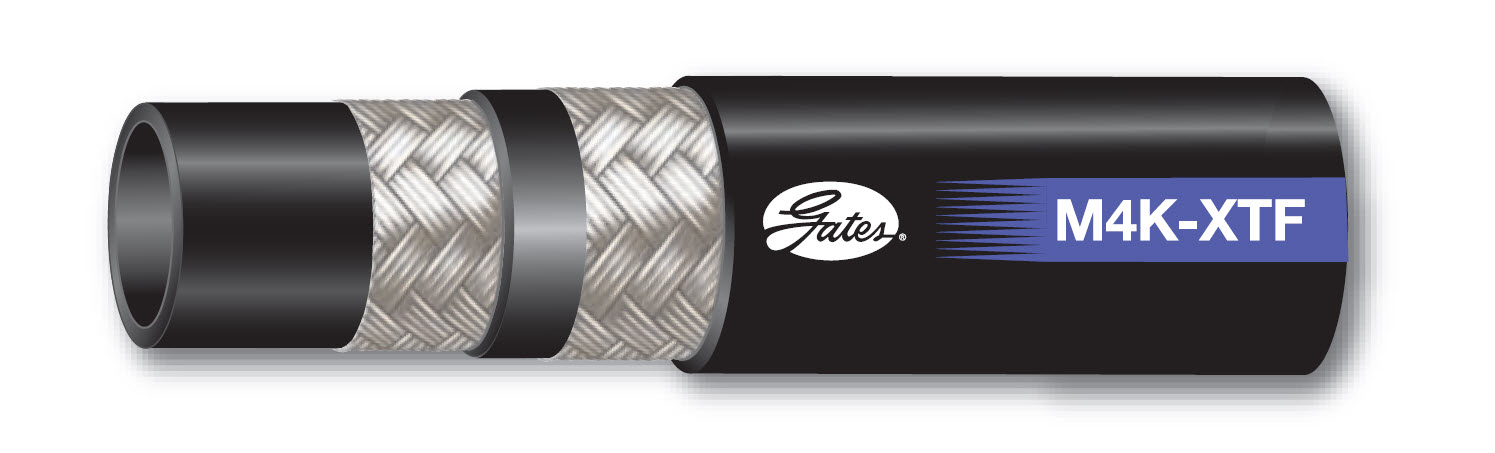

M4K-XTF
TWO WIRE BRAID HOSE
- Due to manufacturing tolerances, the external dimension is an average.
- Recommended for: High pressure hydraulic applications. Easy to route and to install in tight areas.
- Internal tube: Nitrile based.
- Reinforcement: Two braids of high tensile steel wire.
- External cover: NBR/PVC based. MSHA approved.
- Temperature range: -40°C to +100°C constant and +121°C intermittent.
- Standards: SAE 100R19. ISO 11237-1. Meets or exceeds EN 857 2SC performance requirements.
- Characteristics: Alternative to spiral hoses in high pressure lines where flexibility is required. M4K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids.
- Special item - please contact Hydraulink for further details and availability.
- -XTF (XtraTuff™) hose lasts up to 25 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945.
BRAIDED WIRE REINFORCED HOSE - 4000psi
Product Data
6M4K-XTF
Internal Size
06
Internal DN
10
Internal Diameter - inches
3/8
External Diameter - mm
17.5
Working Pressure - psi
4000
Working pressure - bar
280
Min burst pressure - psi
16000
Min burst pressure - bar
1120
Min bend radius - mm
65
8M4K-XTF
Internal Size
08
Internal DN
12
Internal Diameter - inches
1/2
External Diameter - mm
20.8
Working Pressure - psi
4000
Working pressure - bar
280
Min burst pressure - psi
16000
Min burst pressure - bar
1120
Min bend radius - mm
90
10M4K-XTF
Internal Size
10
Internal DN
16
Internal Diameter - inches
5/8
External Diameter - mm
25.0
Working Pressure - psi
4000
Working pressure - bar
280
Min burst pressure - psi
16000
Min burst pressure - bar
1120
Min bend radius - mm
100
