R14

STAINLESS BRAIDED PTFE HOSE

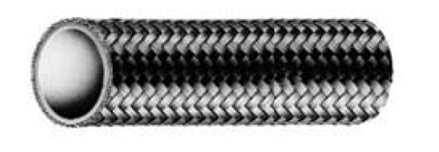

PTFE HOSE WITH STAINLESS STEEL BRAIDED COVER

  • Due to manufacturing tolerances, the external dimension is an average.
  • Recommended for: Air compressor discharge, hot oil fluids, hot and greasy environments.
  • Internal tube: Non-conductive white, smooth bore Teflon®/PTFE.
  • Reinforcement.
  • External cover: AISI 304/S15 or BS970-1 1996 quality hard drawn tensile stainless steel wire.
  • Temperature range: -54°C to +204°C. Characteristics: The PTFE hose tube is virtually inert to all chemicals and solvents. It is resistant to fuming Sulphuric and Nitric Acids, Amines, Antioxidants and Methanol. It is only known to react with elemental alkali metals (molten or in solution), Fluorine and Chlorine Trifluoride.
  • NOTE: A damaging electrostatic charge can build up inside the hose when electrically resistive fluids are being transmitted at very high flow rates (particularly if the hose assemblies are lengthy).

PTFE HOSE WITH STAINLESS STEEL BRAIDED COVER

PartNumber
Internal Size
Internal DN
Internal Diameter - inches
External Diameter - mm
Working Pressure - psi
Working pressure - bar
Min burst pressure - psi
Min burst pressure - bar
Min bend radius - mm
R14-03
03
5
3/16
7.9
4000
275
12000
825
50
R14-04
04
6
1/4
9.35
3250
224
9750
672
76
R14-05
05
8
5/16
11.3
3160
218
9500
655
102
R14-06
06
10
3/8
12.65
2660
183
8000
552
127
R14-08
08
12
1/2
16.55
2330
161
7000
483
152
R14-10
10
16
5/8
19.75
1660
114
5000
345
178
R14-12
12
19
3/4
22.96
1500
103
4500
310
203
R14-16
16
25
1
27.8
1000
69
3495
241
310

Product Data

R14-03

Internal Size

03

Internal DN

5

Internal Diameter - inches

3/16

External Diameter - mm

7.9

Working Pressure - psi

4000

Working pressure - bar

275

Min burst pressure - psi

12000

Min burst pressure - bar

825

Min bend radius - mm

50

R14-04

Internal Size

04

Internal DN

6

Internal Diameter - inches

1/4

External Diameter - mm

9.35

Working Pressure - psi

3250

Working pressure - bar

224

Min burst pressure - psi

9750

Min burst pressure - bar

672

Min bend radius - mm

76

R14-05

Internal Size

05

Internal DN

8

Internal Diameter - inches

5/16

External Diameter - mm

11.3

Working Pressure - psi

3160

Working pressure - bar

218

Min burst pressure - psi

9500

Min burst pressure - bar

655

Min bend radius - mm

102

R14-06

Internal Size

06

Internal DN

10

Internal Diameter - inches

3/8

External Diameter - mm

12.65

Working Pressure - psi

2660

Working pressure - bar

183

Min burst pressure - psi

8000

Min burst pressure - bar

552

Min bend radius - mm

127

R14-08

Internal Size

08

Internal DN

12

Internal Diameter - inches

1/2

External Diameter - mm

16.55

Working Pressure - psi

2330

Working pressure - bar

161

Min burst pressure - psi

7000

Min burst pressure - bar

483

Min bend radius - mm

152

R14-10

Internal Size

10

Internal DN

16

Internal Diameter - inches

5/8

External Diameter - mm

19.75

Working Pressure - psi

1660

Working pressure - bar

114

Min burst pressure - psi

5000

Min burst pressure - bar

345

Min bend radius - mm

178

R14-12

Internal Size

12

Internal DN

19

Internal Diameter - inches

3/4

External Diameter - mm

22.96

Working Pressure - psi

1500

Working pressure - bar

103

Min burst pressure - psi

4500

Min burst pressure - bar

310

Min bend radius - mm

203

R14-16

Internal Size

16

Internal DN

25

Internal Diameter - inches

1

External Diameter - mm

27.8

Working Pressure - psi

1000

Working pressure - bar

69

Min burst pressure - psi

3495

Min burst pressure - bar

241

Min bend radius - mm

310
