Get the job done with the right equipment

Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.

Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.

The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.

To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.

THERMOPLASTIC HOSE

FIBRE BRAID THERMOPLASTIC HOSE

THERMOPLASTIC HOSE

FIBRE BRAID THERMOPLASTIC HOSE

R18NEO

FIBRE BRAID THERMOPLASTIC HOSE

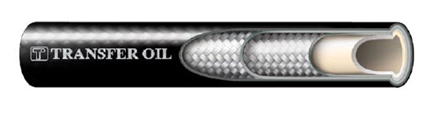

LOW TEMP. FIBRE REINFORCED HOSE - SAE 100R18

  • Due to manufacturing tolerances, the external dimension is an average.
  • Recommended for: Medium pressure hydraulic applications exposed to low temperatures, or cyclic and quick temperature changes, such as cool-stores. Ideal for forklift applications
  • Internal tube: Polyester elastomer.
  • Reinforcement: Two braids of synthetic fiber.
  • External cover: Special polyurethane cover, black, non-pinpricked, white ink-jet branding.
  • Temperature range: -40 °C to +100 °C, limited to +70 °C for air and water-based fluids.
  • Standards: Meets or exceeds SAE 10018.
  • Characteristics: R18 is a medium pressure hose suitable for petroleum or synthetic based hydraulic fluids in hydraulic systems of forklifts. Optimum bonding characteristics and special cover also make it an ideal for equipment operating in cold environments, while maintaining a high level of flexibility.

LOW TEMP. FIBRE REINFORCED HOSE - SAE 100R18

PartNumber
Internal Size
Internal DN
Internal Diameter - inches
External Diameter - mm
Working Pressure - psi
Working pressure - bar
Min burst pressure - psi
Min burst pressure - bar
Min bend radius - mm
4R18NEO
04
6
1/4
11.8
3000
210
12000
840
35
5R18NEO
05
8
5/16
14.3
3000
210
12000
840
45
6R18NEO
06
10
3/8
16.5
3000
210
12000
840
45
8R18NEO
08
12
1/2
21.2
3000
210
12000
840
70
10R18NEO
10
16
5/8
26.1
3000
210
12000
840
100

Product Data

4R18NEO

Internal Size

04

Internal DN

6

Internal Diameter - inches

1/4

External Diameter - mm

11.8

Working Pressure - psi

3000

Working pressure - bar

210

Min burst pressure - psi

12000

Min burst pressure - bar

840

Min bend radius - mm

35

5R18NEO

Internal Size

05

Internal DN

8

Internal Diameter - inches

5/16

External Diameter - mm

14.3

Working Pressure - psi

3000

Working pressure - bar

210

Min burst pressure - psi

12000

Min burst pressure - bar

840

Min bend radius - mm

45

6R18NEO

Internal Size

06

Internal DN

10

Internal Diameter - inches

3/8

External Diameter - mm

16.5

Working Pressure - psi

3000

Working pressure - bar

210

Min burst pressure - psi

12000

Min burst pressure - bar

840

Min bend radius - mm

45

8R18NEO

Internal Size

08

Internal DN

12

Internal Diameter - inches

1/2

External Diameter - mm

21.2

Working Pressure - psi

3000

Working pressure - bar

210

Min burst pressure - psi

12000

Min burst pressure - bar

840

Min bend radius - mm

70

10R18NEO

Internal Size

10

Internal DN

16

Internal Diameter - inches

5/8

External Diameter - mm

26.1

Working Pressure - psi

3000

Working pressure - bar

210

Min burst pressure - psi

12000

Min burst pressure - bar

840

Min bend radius - mm

100
