Get the job done with the right equipment

Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.

Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.

The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.

To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.

  • Product Catalogue
  • Promotions
  • Our Agencies
  • Our Quality
  • Safety Data Sheets

THERMOPLASTIC HOSE

FIBRE BRAID THERMOPLASTIC HOSE

THERMOPLASTIC HOSE

FIBRE BRAID THERMOPLASTIC HOSE

THERMOPLASTIC HOSE

FIBRE BRAID THERMOPLASTIC HOSE

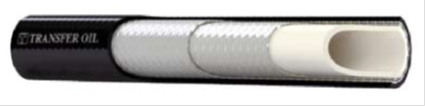

BRAIDED FIBRE REINFORCED SLIMLINE HOSE - SAE 100R8

PartNumber
Internal Size
Internal DN
Internal Diameter - inches
External Diameter - mm
Working Pressure - psi
Working pressure - bar
Min burst pressure - psi
Min burst pressure - bar
Min bend radius - mm
3R8X
03
5
3/16
8.9
5000
350
20000
1400
30
4R8X
04
6
1/4
11.5
5000
350
20000
1400
50
6R8X
06
10
3/8
15.5
4000
280
16000
1120
60
8R8X
08
12
1/2
19.9
3500
245
14000
980
80
12R8X
12
19
3/4
26.9
2300
165
9200
660
150
16R8X
16
25
1
34.2
2000
140
8000
560
200

Product Data

3R8X

Internal Size

03

Internal DN

5

Internal Diameter - inches

3/16

External Diameter - mm

8.9

Working Pressure - psi

5000

Working pressure - bar

350

Min burst pressure - psi

20000

Min burst pressure - bar

1400

Min bend radius - mm

30

4R8X

Internal Size

04

Internal DN

6

Internal Diameter - inches

1/4

External Diameter - mm

11.5

Working Pressure - psi

5000

Working pressure - bar

350

Min burst pressure - psi

20000

Min burst pressure - bar

1400

Min bend radius - mm

50

6R8X

Internal Size

06

Internal DN

10

Internal Diameter - inches

3/8

External Diameter - mm

15.5

Working Pressure - psi

4000

Working pressure - bar

280

Min burst pressure - psi

16000

Min burst pressure - bar

1120

Min bend radius - mm

60

8R8X

Internal Size

08

Internal DN

12

Internal Diameter - inches

1/2

External Diameter - mm

19.9

Working Pressure - psi

3500

Working pressure - bar

245

Min burst pressure - psi

14000

Min burst pressure - bar

980

Min bend radius - mm

80

12R8X

Internal Size

12

Internal DN

19

Internal Diameter - inches

3/4

External Diameter - mm

26.9

Working Pressure - psi

2300

Working pressure - bar

165

Min burst pressure - psi

9200

Min burst pressure - bar

660

Min bend radius - mm

150

16R8X

Internal Size

16

Internal DN

25

Internal Diameter - inches

1

External Diameter - mm

34.2

Working Pressure - psi

2000

Working pressure - bar

140

Min burst pressure - psi

8000

Min burst pressure - bar

560

Min bend radius - mm

200

INTRODUCING NEW ENDURO SPIRAL HOSE

ENDURO spiral is an extremely flexible slim profile hose featuring our very high wear and abrasion resistant SuperTuff (ST) MSHA cover for increased protection against abrasion in severe operating environments.

VIEW ENDURO BROCHURE
