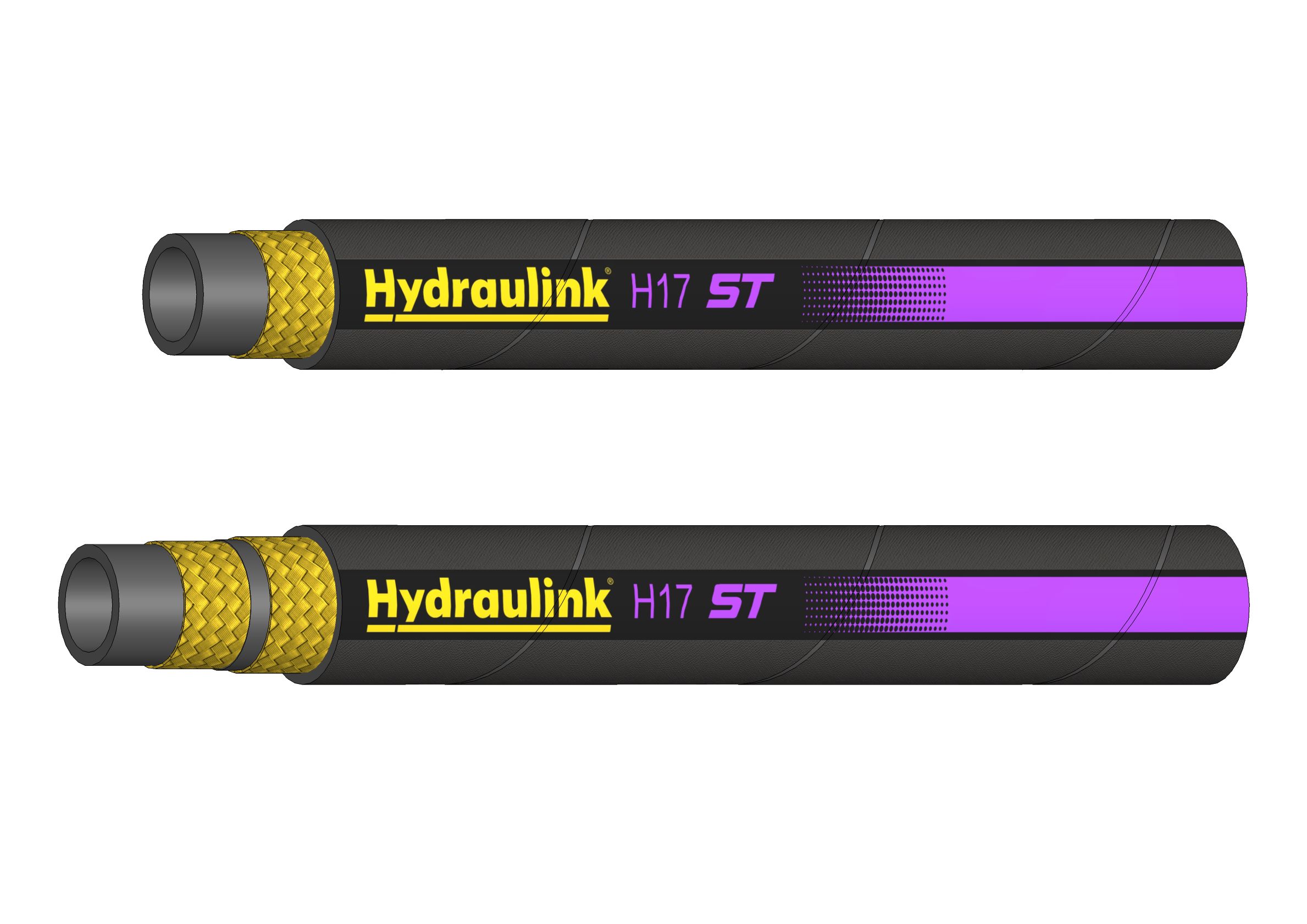

SLIMLINE WIRE BRAID HOSE

R17 ONE/TWO WIRE BRAID HOSE

SLIMLINE WIRE BRAID HOSE

R17 ONE/TWO WIRE BRAID HOSE

SLIMLINE WIRE BRAID HOSE

R17 ONE/TWO WIRE BRAID HOSE

BRAIDED WIRE REINFORCED HOSE - SAE 100R17

PartNumber
Internal Size
Internal Diameter - DN
Internal Diameter - inches
External Diameter - mm
Working Pressure - psi
Working pressure - bar
Min burst pressure - psi
Min burst pressure - bar
Min bend radius - mm
H17-04ST
04
6
1/4
12.3
3000
210
12000
840
50
H17-05ST
05
8
5/16
14.0
3000
210
12000
840
55
H17-06ST
06
10
3/8
15.9
3000
210
12000
840
65
H17-08ST
08
12
1/2
19.1
3000
210
12000
840
90
H17-12ST
12
19
3/4
28.0
3000
210
12000
840
100
H17-16ST
16
25
1
35.3
3000
210
12000
840
150

Product Data

H17-04ST

Internal Size

04

Internal Diameter - DN

6

Internal Diameter - inches

1/4

External Diameter - mm

12.3

Working Pressure - psi

3000

Working pressure - bar

210

Min burst pressure - psi

12000

Min burst pressure - bar

840

Min bend radius - mm

50

H17-05ST

Internal Size

05

Internal Diameter - DN

8

Internal Diameter - inches

5/16

External Diameter - mm

14.0

Working Pressure - psi

3000

Working pressure - bar

210

Min burst pressure - psi

12000

Min burst pressure - bar

840

Min bend radius - mm

55

H17-06ST

Internal Size

06

Internal Diameter - DN

10

Internal Diameter - inches

3/8

External Diameter - mm

15.9

Working Pressure - psi

3000

Working pressure - bar

210

Min burst pressure - psi

12000

Min burst pressure - bar

840

Min bend radius - mm

65

H17-08ST

Internal Size

08

Internal Diameter - DN

12

Internal Diameter - inches

1/2

External Diameter - mm

19.1

Working Pressure - psi

3000

Working pressure - bar

210

Min burst pressure - psi

12000

Min burst pressure - bar

840

Min bend radius - mm

90

H17-12ST

Internal Size

12

Internal Diameter - DN

19

Internal Diameter - inches

3/4

External Diameter - mm

28.0

Working Pressure - psi

3000

Working pressure - bar

210

Min burst pressure - psi

12000

Min burst pressure - bar

840

Min bend radius - mm

100

H17-16ST

Internal Size

16

Internal Diameter - DN

25

Internal Diameter - inches

1

External Diameter - mm

35.3

Working Pressure - psi

3000

Working pressure - bar

210

Min burst pressure - psi

12000

Min burst pressure - bar

840

Min bend radius - mm

150
