Get the job done with the right equipment
Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.
Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.
The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.
To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.
- Product Catalogue
- Safety Data Sheets
AIR & WATER

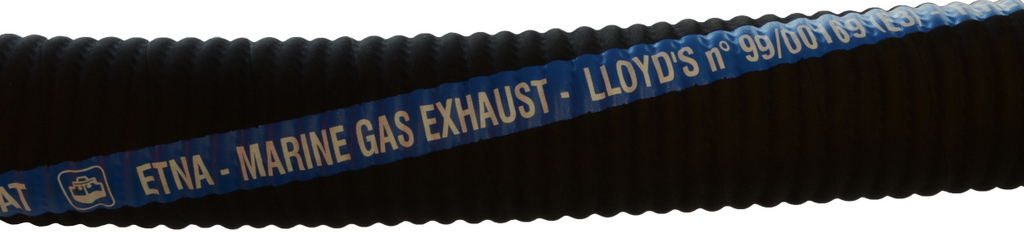

ETNA
Product Data
RWWD23-025
Size
25
Hose I.D (mm)
25.4
Min Bend Radius (mm)
110
WP (psi)
25
BP (psi)
75
Weight kg/mtr
0.48
RWWD23-032
Size
32
Hose I.D (mm)
32.1
Min Bend Radius (mm)
130
WP (psi)
25
BP (psi)
75
Weight kg/mtr
0.65
RWWD23-038
Size
38
Hose I.D (mm)
38.1
Min Bend Radius (mm)
150
WP (psi)
25
BP (psi)
75
Weight kg/mtr
0.75
RWWD23-045
Size
45
Hose I.D (mm)
44.5
Min Bend Radius (mm)
170
WP (psi)
25
BP (psi)
75
Weight kg/mtr
0.87
RWWD23-051
Size
51
Hose I.D (mm)
50.8
Min Bend Radius (mm)
180
WP (psi)
25
BP (psi)
75
Weight kg/mtr
1.07
RWWD23-063
Size
63
Hose I.D (mm)
63.5
Min Bend Radius (mm)
200
WP (psi)
25
BP (psi)
75
Weight kg/mtr
1.30
RWWD23-076
Size
76
Hose I.D (mm)
76.1
Min Bend Radius (mm)
250
WP (psi)
25
BP (psi)
75
Weight kg/mtr
1.46
RWWD23-090
Size
90
Hose I.D (mm)
88.9
Min Bend Radius (mm)
330
WP (psi)
25
BP (psi)
75
Weight kg/mtr
1.73
RWWD23-102
Size
102
Hose I.D (mm)
101.6
Min Bend Radius (mm)
410
WP (psi)
25
BP (psi)
75
Weight kg/mtr
2.06
RWWD23-127
Size
127
Hose I.D (mm)
127
Min Bend Radius (mm)
560
WP (psi)
25
BP (psi)
75
Weight kg/mtr
2.58
RWWD23-152
Size
152
Hose I.D (mm)
152.6
Min Bend Radius (mm)
680
WP (psi)
25
BP (psi)
75
Weight kg/mtr
3.18
INTRODUCING NEW ENDURO SPIRAL HOSE
ENDURO spiral is an extremely flexible slim profile hose featuring our very high wear and abrasion resistant SuperTuff (ST) MSHA cover for increased protection against abrasion in severe operating environments.
