SCREW LOCK SERIES
POPPET SEAL COUPLINGS
SCREW LOCK SERIES
POPPET SEAL COUPLINGS
SCREW LOCK SERIES
POPPET SEAL COUPLINGS
- For sizes above 16 please enquire.
- Please enquire for other combinations of base size and thread form.
- Overall length when connected is calculated based on both couplings having the same thread form and size.
- Recommended for: Agriculture, industrial, construction, earthmoving.
- Connection: Connect or disconnect under residual pressure.
- Latching: Threaded.
- Shut-off system: Poppet valve.
- Temperature range: -25°C to +125°C
- Standards: Interchangeability according to ISO 14541.
INTERCHANGE ACCORDING TO ISO 14541

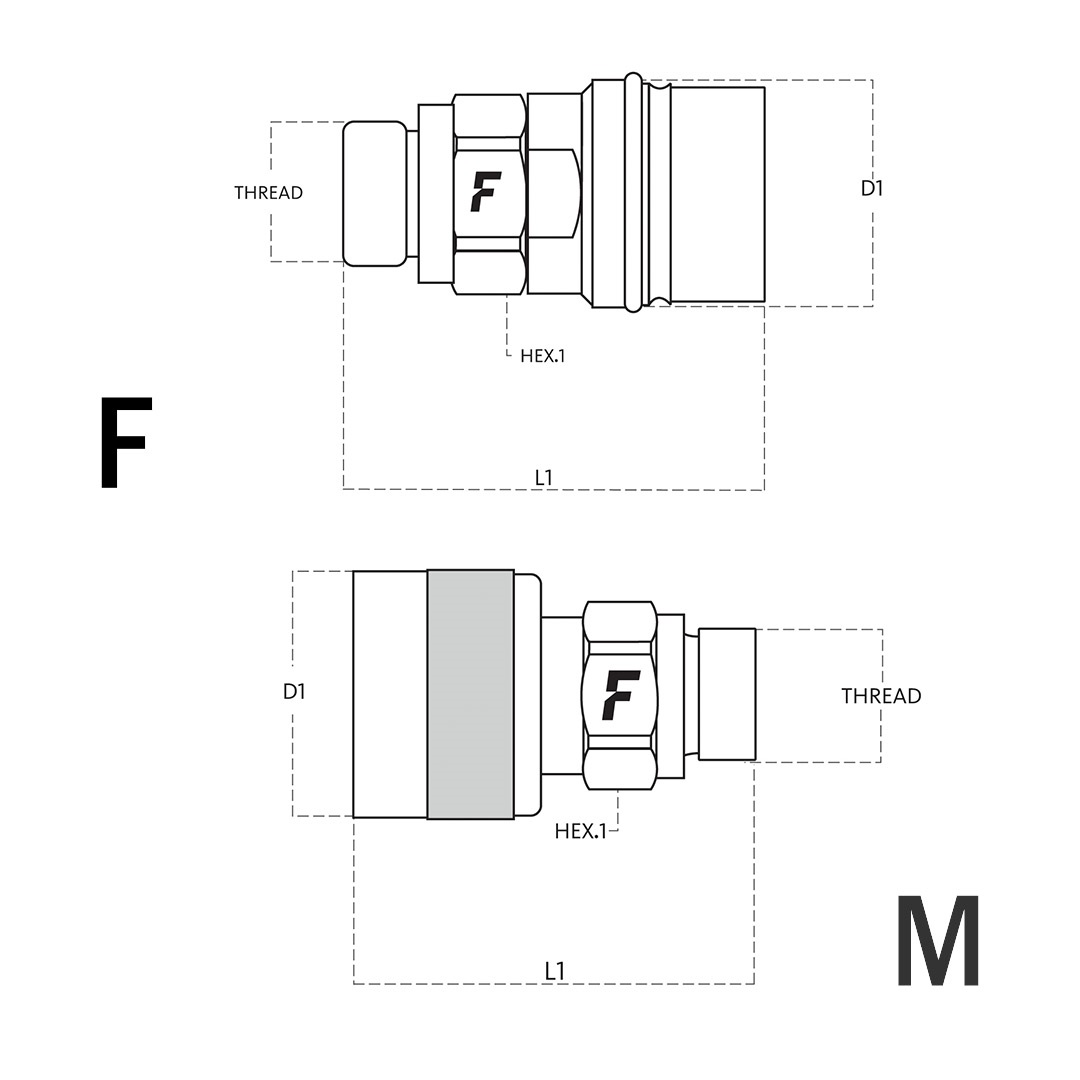

Product Data
QCVV-F08
Base Size
08
Threadform
BSPPF socket
Thread Size
1/2-14
Coupling Length - L1
62
Hex Size A/F (Hex 1)
27
Coupling O.D (D1)
22
QCVV-F12
Base Size
12
Threadform
BSPPF socket
Thread Size
3/4-14
Coupling Length - L1
83
Hex Size A/F (Hex 1)
38
Coupling O.D (D1)
28.1
QCVV-F16
Base Size
16
Threadform
BSPPF socket
Thread Size
1-11
Coupling Length - L1
95
Hex Size A/F (Hex 1)
42
Coupling O.D (D1)
35
QCVV-M08
Base Size
08
Threadform
BSPPF socket
Thread Size
1/2-14
Coupling Length - L1
68
Hex Size A/F (Hex 1)
27
Coupling O.D (D1)
42
QCVV-M12
Base Size
12
Threadform
BSPPF socket
Thread Size
3/4-14
Coupling Length - L1
85
Hex Size A/F (Hex 1)
38
Coupling O.D (D1)
48
QCVV-M16
Base Size
16
Threadform
BSPPF socket
Thread Size
1-11
Coupling Length - L1
95
Hex Size A/F (Hex 1)
42
Coupling O.D (D1)
56
