JIC

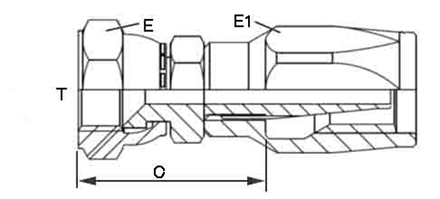

JIC FEMALE STRAIGHT
Product Data
R505-0704
JIC Female Thread (T)
7/16-20
Nominal Hose I.D - inches
1/4
Nominal Hose I.D - mm
6.5
True Hose I.D - inches
3/16
True Hose I.D - mm
4.8
Dash size
04
Hex A/F (E)
14
Hex A/F (E1)
14
Cutoff - C
31
R505-0905
JIC Female Thread (T)
9/16-18
Nominal Hose I.D - inches
5/16
Nominal Hose I.D - mm
8
True Hose I.D - inches
1/4
True Hose I.D - mm
6.5
Dash size
05
Hex A/F (E)
18
Hex A/F (E1)
18
Cutoff - C
31
R505-0906
JIC Female Thread (T)
9/16-18
Nominal Hose I.D - inches
3/8
Nominal Hose I.D - mm
9.5
True Hose I.D - inches
5/16
True Hose I.D - mm
8.0
Dash size
06
Hex A/F (E)
19
Hex A/F (E1)
19
Cutoff - C
37
R505-1206
JIC Female Thread (T)
3/4-16
Nominal Hose I.D - inches
3/8
Nominal Hose I.D - mm
9.5
True Hose I.D - inches
5/16
True Hose I.D - mm
8.0
Dash size
06
Hex A/F (E)
22
Hex A/F (E1)
22
Cutoff - C
39
R505-1208
JIC Female Thread (T)
3/4-16
Nominal Hose I.D - inches
1/2
Nominal Hose I.D - mm
12.7
True Hose I.D - inches
13/32
True Hose I.D - mm
10.3
Dash size
08
Hex A/F (E)
22
Hex A/F (E1)
22
Cutoff - C
41
R505-1210
JIC Female Thread (T)
3/4-16
Nominal Hose I.D - inches
5/8
Nominal Hose I.D - mm
15.9
True Hose I.D - inches
1/2
True Hose I.D - mm
12.7
Dash size
10
Hex A/F (E)
22
Hex A/F (E1)
22
Cutoff - C
42
R505-1410
JIC Female Thread (T)
7/8-14
Nominal Hose I.D - inches
5/8
Nominal Hose I.D - mm
15.9
True Hose I.D - inches
1/2
True Hose I.D - mm
12.7
Dash size
10
Hex A/F (E)
27
Hex A/F (E1)
27
Cutoff - C
46
R505-1712
JIC Female Thread (T)
1.1/16-12
Nominal Hose I.D - inches
3/4
Nominal Hose I.D - mm
19
True Hose I.D - inches
5/8
True Hose I.D - mm
15.9
Dash size
12
Hex A/F (E)
32
Hex A/F (E1)
32
Cutoff - C
49
R505-2116
JIC Female Thread (T)
1.5/16-12
Nominal Hose I.D - inches
1
Nominal Hose I.D - mm
25.4
True Hose I.D - inches
7/8
True Hose I.D - mm
22.2
Dash size
16
Hex A/F (E)
38
Hex A/F (E1)
38
Cutoff - C
49
R505-2620
JIC Female Thread (T)
1.5/8-12
Nominal Hose I.D - inches
1.1/4
Nominal Hose I.D - mm
31.8
True Hose I.D - inches
1.1/8
True Hose I.D - mm
28.6
Dash size
20
Hex A/F (E)
51
Hex A/F (E1)
51
Cutoff - C
56
