SWAGETAILS

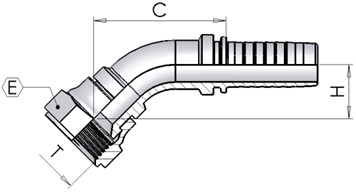

JIC FEMALE 45° ELBOW
SWAGETAILS
JIC FEMALE 45° ELBOW
Product Data
SS64-0703
JIC Female Thread (T)
7/16-20
Hose I.D (Inches)
3/16
Hose I.D (mm)
4.8
Dash size
03
Hex A/F (E)
SS64-0704
JIC Female Thread (T)
7/16-20
Hose I.D (Inches)
1/4
Hose I.D (mm)
6.4
Dash size
04
Hex A/F (E)
14
Drop - H
14.8
Cutoff - C
45.8
SS64-0904
JIC Female Thread (T)
9/16-18
Hose I.D (Inches)
1/4
Hose I.D (mm)
6.4
Dash size
04
Hex A/F (E)
19
Drop - H
15.9
Cutoff - C
46.9
SS64-0906
JIC Female Thread (T)
9/16-18
Hose I.D (Inches)
3/8
Hose I.D (mm)
9.5
Dash size
06
Hex A/F (E)
19
Drop - H
19.9
Cutoff - C
61.4
SS64-1206
JIC Female Thread (T)
3/4-16
Hose I.D (Inches)
3/8
Hose I.D (mm)
9.5
Dash size
06
Hex A/F (E)
24
Drop - H
21.3
Cutoff - C
62.8
SS64-1208
JIC Female Thread (T)
3/4-16
Hose I.D (Inches)
1/2
Hose I.D (mm)
12.7
Dash size
08
Hex A/F (E)
24
Drop - H
22.3
Cutoff - C
67.8
SS64-1408
JIC Female Thread (T)
7/8-14
Hose I.D (Inches)
1/2
Hose I.D (mm)
12.7
Dash size
08
Hex A/F (E)
27
Drop - H
23.4
Cutoff - C
68.9
SS64-1712
JIC Female Thread (T)
1.1/16-12
Hose I.D (Inches)
3/4
Hose I.D (mm)
19
Dash size
12
Hex A/F (E)
32
Drop - H
26.4
Cutoff - C
101.4
SS64-2116
JIC Female Thread (T)
1.5/16-12
Hose I.D (Inches)
1
Hose I.D (mm)
25.4
Dash size
16
Hex A/F (E)
38
Drop - H
34.1
Cutoff - C
123.1
