SINGLE TUBE CLAMPS

Product catalogue Tube Clamps SINGLE TUBE CLAMPS SINGLE TUBE CLAMPS

SINGLE TUBE CLAMPS

SINGLE TUBE CLAMPS

SINGLE TUBE CLAMPS

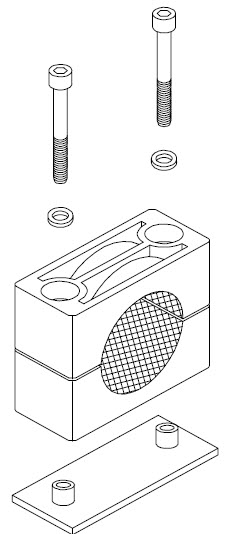

CS-C

SINGLE TUBE CLAMPS

COMPLETE SINGLE CLAMPS WITH POLYPROPYLENE INSERTS

  • When ordering stainless steel componentry type XBP for stainless base plate, XTP for stainless top plate, XHB for stainless hex bolt.
  • *Cap screw and washer are to be used without the top plate.

COMPLETE SINGLE CLAMPS WITH POLYPROPYLENE INSERTS

Download PDF
PartNumber
Clamp Insert
Top Plate
Base Plate
Hex Bolt
Hex Bolt size
CS1-08C
CS1-08
CS1-TP
CS1-BP
CS1/2-HB
M6 X 30
CS1-M10C
CS1-M10
CS1-TP
CS1-BP
CS1/2-HB
M6 X 30
CS1-M12C
CS1-M12
CS1-TP
CS1-BP
CS1/2-HB
M6 X 30
CS1-M8C
CS1-M8
CS1-TP
CS1-BP
CS1/2-HB
M6 X 30
CS2-04C
CS2-04
CS2-TP
CS2-BP
CS1/2-HB
M6 X 30
CS2-06C
CS2-06
CS2-TP
CS2-BP
CS1/2-HB
M6 X 30
CS2-08C
CS2-08
CS2-TP
CS2-BP
CS1/2-HB
M6 X 30
CS2-M10C
CS2-M10
CS2-TP
CS2-BP
CS1/2-HB
M6 X 30
CS2-M12C
CS2-M12
CS2-TP
CS2-BP
CS1/2-HB
M6 X 30
CS2-M6C
CS2-M6
CS2-TP
CS2-BP
CS1/2-HB
M6 X 30
CS2-M8C
CS2-M8
CS2-TP
CS2-BP
CS1/2-HB
M6 X 30
CS3-M14C
CS3-M14
CS3-TP
CS3-BP
CS3-HB
M6 X 35
CS3-M15C
CS3-M15
CS3-TP
CS3-BP
CS3-HB
M6 X 35
CS3-M16C
CS3-M16
CS3-TP
CS3-BP
CS3-HB
M6 X 35
CS3-M18C
CS3-M18
CS3-TP
CS3-BP
CS3-HB
M6 X 35
CS4-12C
CS4-12
CS4-TP
CS4-BP
CS4-HB
M6 X 40
CS4-16C
CS4-16
CS4-TP
CS4-BP
CS4-HB
M6 X 40
CS4-H08C
CS4-H08
CS4-TP
CS4-BP
CS4-HB
M6 X 40
CS4-M20C
CS4-M20
CS4-TP
CS4-BP
CS4-HB
M6 X 40
CS4-M22C
CS4-M22
CS4-TP
CS4-BP
CS4-HB
M6 X 40
CS4-M25C
CS4-M25
CS4-TP
CS4-BP
CS4-HB
M6 X 40
CS5-20C
CS5-20
CS5-TP
CS5-BP
CS5-HB
M6 X 45
CS5-H12C
CS5-H12
CS5-TP
CS5-BP
CS5-HB
M6 X 45
CS5-M28C
CS5-M28
CS5-TP
CS5-BP
CS5-HB
M6 X 45
CS5-M30C
CS5-M30
CS5-TP
CS5-BP
CS5-HB
M6 X 45
CS6-H16C
CS6-H16
CS6-TP
CS6-BP
CS6-HB
M6 X 60
CS6-H20C
CS6-H20
CS6-TP
CS6-BP
CS6-HB
M6 X 60
CS6-M35C
CS6-M35
CS6-TP
CS6-BP
CS6-HB
M6 X 60
CS6-M38C
CS6-M38
CS6-TP
CS6-BP
CS6-HB
M6 X 60
CS7-32C
CS7-32
CS7-TP
CS7-BP
CS7-HB
M6 X 70
CS7-H24C
CS7-H24
CS7-TP
CS7-BP
CS7-HB
M6 X 70
CS7-M45C
CS7-M45
CS7-TP
CS7-BP
CS7-HB
M6 X 70

Product Data

CS1-08C

Clamp Insert

CS1-08

Top Plate

CS1-TP

Base Plate

CS1-BP

Hex Bolt

CS1/2-HB

Hex Bolt size

M6 X 30

CS1-M10C

Clamp Insert

CS1-M10

Top Plate

CS1-TP

Base Plate

CS1-BP

Hex Bolt

CS1/2-HB

Hex Bolt size

M6 X 30

CS1-M12C

Clamp Insert

CS1-M12

Top Plate

CS1-TP

Base Plate

CS1-BP

Hex Bolt

CS1/2-HB

Hex Bolt size

M6 X 30

CS1-M8C

Clamp Insert

CS1-M8

Top Plate

CS1-TP

Base Plate

CS1-BP

Hex Bolt

CS1/2-HB

Hex Bolt size

M6 X 30

CS2-04C

Clamp Insert

CS2-04

Top Plate

CS2-TP

Base Plate

CS2-BP

Hex Bolt

CS1/2-HB

Hex Bolt size

M6 X 30

CS2-06C

Clamp Insert

CS2-06

Top Plate

CS2-TP

Base Plate

CS2-BP

Hex Bolt

CS1/2-HB

Hex Bolt size

M6 X 30

CS2-08C

Clamp Insert

CS2-08

Top Plate

CS2-TP

Base Plate

CS2-BP

Hex Bolt

CS1/2-HB

Hex Bolt size

M6 X 30

CS2-M10C

Clamp Insert

CS2-M10

Top Plate

CS2-TP

Base Plate

CS2-BP

Hex Bolt

CS1/2-HB

Hex Bolt size

M6 X 30

CS2-M12C

Clamp Insert

CS2-M12

Top Plate

CS2-TP

Base Plate

CS2-BP

Hex Bolt

CS1/2-HB

Hex Bolt size

M6 X 30

CS2-M6C

Clamp Insert

CS2-M6

Top Plate

CS2-TP

Base Plate

CS2-BP

Hex Bolt

CS1/2-HB

Hex Bolt size

M6 X 30

CS2-M8C

Clamp Insert

CS2-M8

Top Plate

CS2-TP

Base Plate

CS2-BP

Hex Bolt

CS1/2-HB

Hex Bolt size

M6 X 30

CS3-M14C

Clamp Insert

CS3-M14

Top Plate

CS3-TP

Base Plate

CS3-BP

Hex Bolt

CS3-HB

Hex Bolt size

M6 X 35

CS3-M15C

Clamp Insert

CS3-M15

Top Plate

CS3-TP

Base Plate

CS3-BP

Hex Bolt

CS3-HB

Hex Bolt size

M6 X 35

CS3-M16C

Clamp Insert

CS3-M16

Top Plate

CS3-TP

Base Plate

CS3-BP

Hex Bolt

CS3-HB

Hex Bolt size

M6 X 35

CS3-M18C

Clamp Insert

CS3-M18

Top Plate

CS3-TP

Base Plate

CS3-BP

Hex Bolt

CS3-HB

Hex Bolt size

M6 X 35

CS4-12C

Clamp Insert

CS4-12

Top Plate

CS4-TP

Base Plate

CS4-BP

Hex Bolt

CS4-HB

Hex Bolt size

M6 X 40

CS4-16C

Clamp Insert

CS4-16

Top Plate

CS4-TP

Base Plate

CS4-BP

Hex Bolt

CS4-HB

Hex Bolt size

M6 X 40

CS4-H08C

Clamp Insert

CS4-H08

Top Plate

CS4-TP

Base Plate

CS4-BP

Hex Bolt

CS4-HB

Hex Bolt size

M6 X 40

CS4-M20C

Clamp Insert

CS4-M20

Top Plate

CS4-TP

Base Plate

CS4-BP

Hex Bolt

CS4-HB

Hex Bolt size

M6 X 40

CS4-M22C

Clamp Insert

CS4-M22

Top Plate

CS4-TP

Base Plate

CS4-BP

Hex Bolt

CS4-HB

Hex Bolt size

M6 X 40

CS4-M25C

Clamp Insert

CS4-M25

Top Plate

CS4-TP

Base Plate

CS4-BP

Hex Bolt

CS4-HB

Hex Bolt size

M6 X 40

CS5-20C

Clamp Insert

CS5-20

Top Plate

CS5-TP

Base Plate

CS5-BP

Hex Bolt

CS5-HB

Hex Bolt size

M6 X 45

CS5-H12C

Clamp Insert

CS5-H12

Top Plate

CS5-TP

Base Plate

CS5-BP

Hex Bolt

CS5-HB

Hex Bolt size

M6 X 45

CS5-M28C

Clamp Insert

CS5-M28

Top Plate

CS5-TP

Base Plate

CS5-BP

Hex Bolt

CS5-HB

Hex Bolt size

M6 X 45

CS5-M30C

Clamp Insert

CS5-M30

Top Plate

CS5-TP

Base Plate

CS5-BP

Hex Bolt

CS5-HB

Hex Bolt size

M6 X 45

CS6-H16C

Clamp Insert

CS6-H16

Top Plate

CS6-TP

Base Plate

CS6-BP

Hex Bolt

CS6-HB

Hex Bolt size

M6 X 60

CS6-H20C

Clamp Insert

CS6-H20

Top Plate

CS6-TP

Base Plate

CS6-BP

Hex Bolt

CS6-HB

Hex Bolt size

M6 X 60

CS6-M35C

Clamp Insert

CS6-M35

Top Plate

CS6-TP

Base Plate

CS6-BP

Hex Bolt

CS6-HB

Hex Bolt size

M6 X 60

CS6-M38C

Clamp Insert

CS6-M38

Top Plate

CS6-TP

Base Plate

CS6-BP

Hex Bolt

CS6-HB

Hex Bolt size

M6 X 60

CS7-32C

Clamp Insert

CS7-32

Top Plate

CS7-TP

Base Plate

CS7-BP

Hex Bolt

CS7-HB

Hex Bolt size

M6 X 70

CS7-H24C

Clamp Insert

CS7-H24

Top Plate

CS7-TP

Base Plate

CS7-BP

Hex Bolt

CS7-HB

Hex Bolt size

M6 X 70

CS7-M45C

Clamp Insert

CS7-M45

Top Plate

CS7-TP

Base Plate

CS7-BP

Hex Bolt

CS7-HB

Hex Bolt size

M6 X 70
