Get the job done with the right equipment
Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.
Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.
The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.
To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.
- Product Catalogue
- Safety Data Sheets
STRAIGHT ADAPTORS
BSP STUD X MET LIGHT MALE
STRAIGHT ADAPTORS
BSP STUD X MET LIGHT MALE
STRAIGHT ADAPTORS
BSP STUD X MET LIGHT MALE

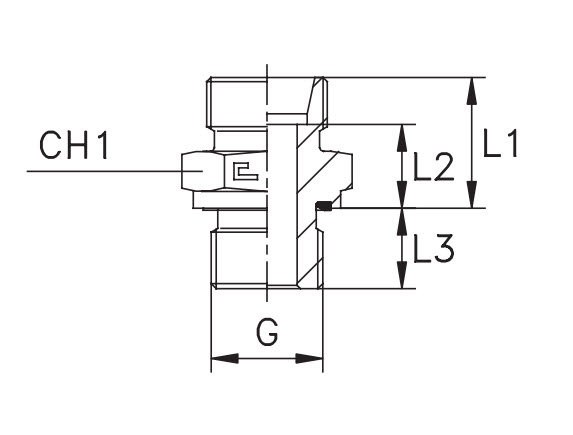

BSP STUD CAPTIVE SEAL X METRIC 24° CONE LIGHT MALE STRAIGHT
Product Data
BX-ML-0212
BSPP Male Thread
1/8-28
Metric Male Thread
M12-1.5
Suits Tube
6
L1 - mm
15.5
L2 - mm
8.5
L3 - mm
8
Hex A/F (CH1)
14
PN (bar)
500
BX-ML-0214
BSPP Male Thread
1/8-28
Metric Male Thread
M14-1.5
Suits Tube
8
L1 - mm
16.5
L2 - mm
9.5
L3 - mm
8
Hex A/F (CH1)
14
PN (bar)
500
BX-ML-0414
BSPP Male Thread
1/4-19
Metric Male Thread
M14-1.5
Suits Tube
8
L1 - mm
17
L2 - mm
10
L3 - mm
12
Hex A/F (CH1)
19
PN (bar)
500
BX-ML-0416
BSPP Male Thread
1/4-19
Metric Male Thread
M16-1.5
Suits Tube
10
L1 - mm
18
L2 - mm
11
L3 - mm
12
Hex A/F (CH1)
19
PN (bar)
500
BX-ML-0418
BSPP Male Thread
1/4-19
Metric Male Thread
M18-1.5
Suits Tube
12
L1 - mm
19
L2 - mm
12
L3 - mm
12
Hex A/F (CH1)
19
PN (bar)
400
BX-ML-0614
BSPP Male Thread
3/8-19
Metric Male Thread
M14-1.5
Suits Tube
8
L1 - mm
18.5
L2 - mm
11.5
L3 - mm
12
Hex A/F (CH1)
22
PN (bar)
400
BX-ML-0616
BSPP Male Thread
3/8-19
Metric Male Thread
M16-1.5
Suits Tube
10
L1 - mm
22.5
L2 - mm
15
L3 - mm
12
Hex A/F (CH1)
22
PN (bar)
400
BX-ML-0618
BSPP Male Thread
3/8-19
Metric Male Thread
M18-1.5
Suits Tube
12
L1 - mm
24.5
L2 - mm
17
L3 - mm
12
Hex A/F (CH1)
22
PN (bar)
400
BX-ML-0622
BSPP Male Thread
3/8-19
Metric Male Thread
M22-1.5
Suits Tube
15
L1 - mm
20.5
L2 - mm
13.5
L3 - mm
12
Hex A/F (CH1)
24
PN (bar)
400
BX-ML-0818
BSPP Male Thread
1/2-14
Metric Male Thread
M18-1.5
Suits Tube
12
L1 - mm
20
L2 - mm
13
L3 - mm
14
Hex A/F (CH1)
27
PN (bar)
400
BX-ML-0822
BSPP Male Thread
1/2-14
Metric Male Thread
M22-1.5
Suits Tube
15
L1 - mm
21
L2 - mm
14
L3 - mm
14
Hex A/F (CH1)
27
PN (bar)
400
BX-ML-0830
BSPP Male Thread
1/2-14
Metric Male Thread
M30-2
Suits Tube
22
L1 - mm
24
L2 - mm
16.5
L3 - mm
14
Hex A/F (CH1)
32
PN (bar)
250
BX-ML-1222
BSPP Male Thread
3/4-14
Metric Male Thread
M22-1.5
Suits Tube
15
L1 - mm
22
L2 - mm
15
L3 - mm
16
Hex A/F (CH1)
32
PN (bar)
250
BX-ML-1230
BSPP Male Thread
3/4-14
Metric Male Thread
M30-2
Suits Tube
22
L1 - mm
24
L2 - mm
16.5
L3 - mm
16
Hex A/F (CH1)
32
PN (bar)
250
BX-ML-1236
BSPP Male Thread
3/4-14
Metric Male Thread
M36-2
Suits Tube
28
L1 - mm
25
L2 - mm
17.5
L3 - mm
16
Hex A/F (CH1)
41
PN (bar)
250
BX-ML-1636
BSPP Male Thread
1-11
Metric Male Thread
M36-2
Suits Tube
28
L1 - mm
25
L2 - mm
17.5
L3 - mm
18
Hex A/F (CH1)
41
PN (bar)
250
BX-ML-2452
BSPP Male Thread
1.1/2-11
Metric Male Thread
M52-2
Suits Tube
42
L1 - mm
30
L2 - mm
19
L3 - mm
22
Hex A/F (CH1)
55
PN (bar)
250
