HYDRAULIC TUBE
METRIC HYDRAULIC TUBE - PLATED
HYDRAULIC TUBE
METRIC HYDRAULIC TUBE - PLATED

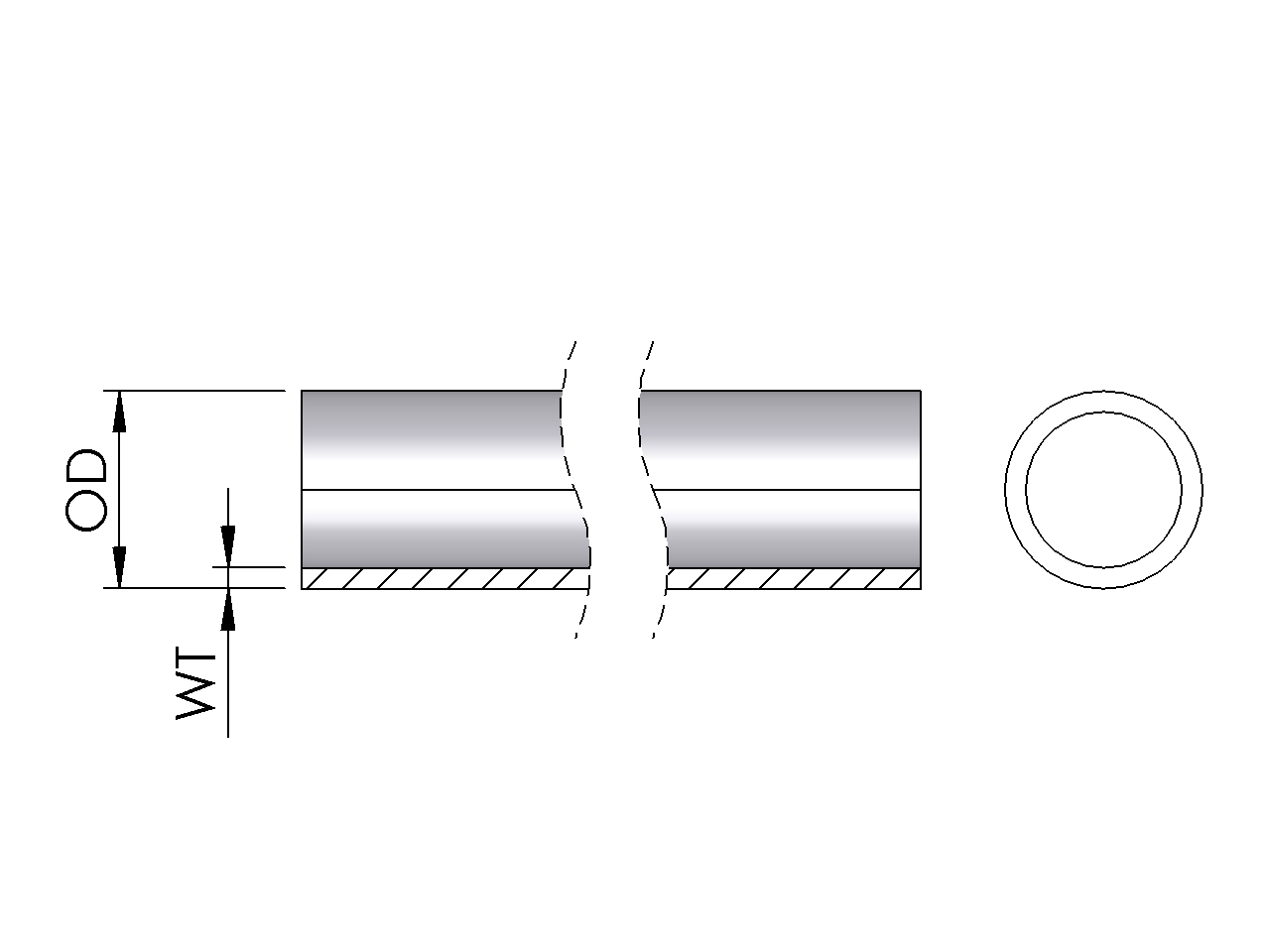

Product Data
STP-M1025
O.D - mm
10
Wall thickness - mm
2.5
Weight - kg/m
Working Pressure - bar
590
Working Pressure - psi
8550
Flow - l/min
7.2
STP-M1015
O.D - mm
10
Wall thickness - mm
1.5
Weight - kg/m
0.31
Working Pressure - bar
303
Working Pressure - psi
4390
Flow - l/min
16.7
STP-M1215
O.D - mm
12
Wall thickness - mm
1.5
Weight - kg/m
0.39
Working Pressure - bar
244
Working Pressure - psi
3540
Flow - l/min
21.8
STP-M1420
O.D - mm
14
Wall thickness - mm
2.0
Weight - kg/m
0.59
Working Pressure - bar
286
Working Pressure - psi
4150
Flow - l/min
34.2
STP-M1515
O.D - mm
15
Wall thickness - mm
1.5
Weight - kg/m
0.50
Working Pressure - bar
190
Working Pressure - psi
2755
Flow - l/min
49.2
STP-M1620
O.D - mm
16
Wall thickness - mm
2.0
Weight - kg/m
0.69
Working Pressure - bar
244
Working Pressure - psi
3540
Flow - l/min
49.2
STP-M1815
O.D - mm
18
Wall thickness - mm
1.5
Weight - kg/m
0.61
Working Pressure - bar
155
Working Pressure - psi
2250
Flow - l/min
76.8
STP-M2025
O.D - mm
20
Wall thickness - mm
2.5
Weight - kg/m
1.08
Working Pressure - bar
244
Working Pressure - psi
3540
Flow - l/min
76.8
STP-M2220
O.D - mm
22
Wall thickness - mm
2.0
Weight - kg/m
0.99
Working Pressure - bar
170
Working Pressure - psi
2470
Flow - l/min
111
STP-M2530
O.D - mm
25
Wall thickness - mm
3.0
Weight - kg/m
1.63
Working Pressure - bar
233
Working Pressure - psi
3380
Flow - l/min
123
STP-M3040
O.D - mm
30
Wall thickness - mm
3.0
Weight - kg/m
2.00
Working Pressure - bar
263
Working Pressure - psi
3820
Flow - l/min
165
STP-M3520
O.D - mm
35
Wall thickness - mm
2.5
Weight - kg/m
2.00
Working Pressure - bar
103
Working Pressure - psi
1490
Flow - l/min
307
STP-M3850
O.D - mm
38
Wall thickness - mm
5.0
Weight - kg/m
3.35
Working Pressure - bar
260
Working Pressure - psi
3770
Flow - l/min
268
STP-M610
O.D - mm
6
Wall thickness - mm
1.0
Weight - kg/m
0.12
Working Pressure - bar
345
Working Pressure - psi
5000
Flow - l/min
5.5
STP-M810
O.D - mm
8
Wall thickness - mm
1.0
Weight - kg/m
0.24
Working Pressure - bar
245
Working Pressure - psi
3550
Flow - l/min
8.6
